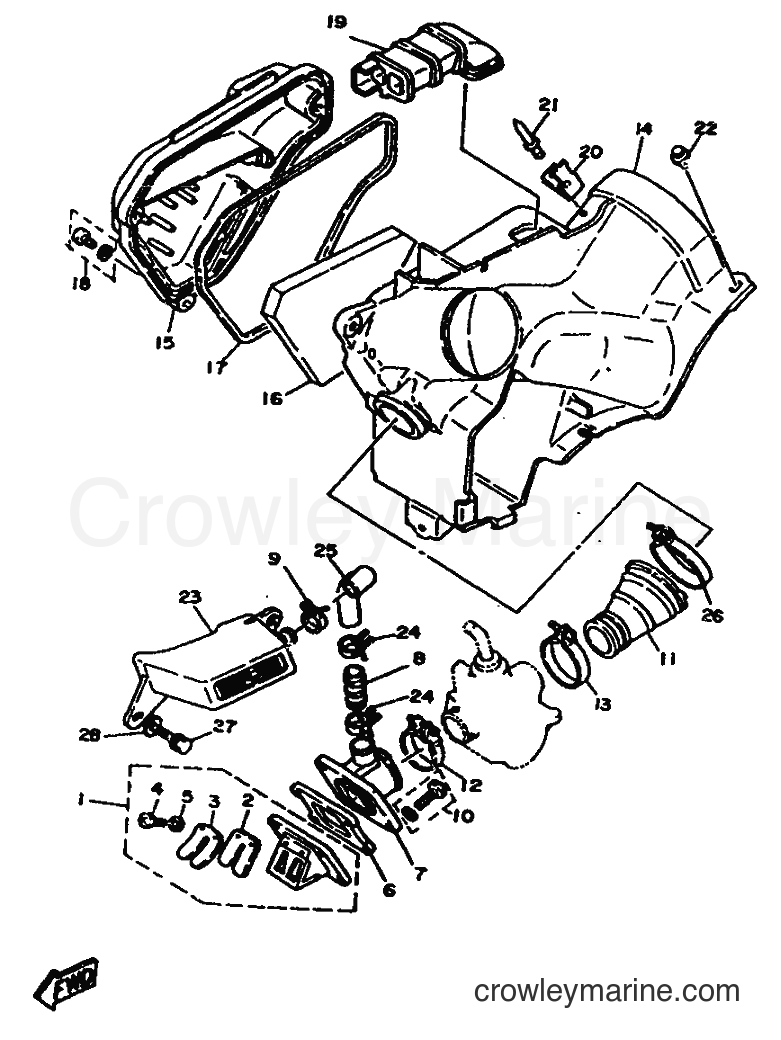

1987 Scooter DT75 - DT75 (2RY) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT75 (2RY) [999] - INTAKE
Change View:
1
Required: 1
REED VALVE ASSY
Price unavailable
Reed Valve
2
Yamaha Motors
Reed Valve314-13613-01-00
Required: 2
. REED, VALVE
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
REED VALVE STOPPER
3
Yamaha Motors
REED VALVE STOPPER10X-13616-00-00
Required: 2
. STOPPER, REED VALVE
Supersedes: 314-13616-01-00
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
97602-03108-00
4
Yamaha Motors
97602-03108-0098512-03008-00
Required: 4
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Spring Washer
5
Yamaha Motors
Spring Washer92990-03100-00
Required: 4
. WASHER
Supersedes: 92902-03100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
JOINT, CARBURETOR
Price unavailable
MANIFOLD PIPE
8
Yamaha Motors
MANIFOLD PIPE20L-13584-00-00
Required: 1
PIPE, INTAKE MANIFOLD
Cross Ship
Leaves in 2-5 days
$34.99
$29.74
You save $5.25
More details
Scissor Clip
9
Yamaha Motors
Scissor Clip90467-19051-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
10
Required: 4
BOLT, WITH WASHER
Price unavailable
11
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
Hose Clamp
12
Yamaha Motors
Hose Clamp90460-36174-00
Required: 1
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$9.99
$8.49
You save $1.50
More details
Hose Clamp
13
Yamaha Motors
Hose Clamp90460-41191-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-39052-00
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
14
Required: 1
CASE, AIR CLEANER 1
Price unavailable
15
Required: 1
CAP, CLEANER CASE 1
Price unavailable
16
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
Shift Bracket Seal
17
Yamaha Motors
Shift Bracket Seal5T8-14452-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
18
Required: 3
SCREW
Price unavailable
19
Required: 1
DUCT
Price unavailable
20
Required: 1
BRACKET, C.D.I. UNIT
Price unavailable
21
Required: 2
RIVET, BLIND
Price unavailable
Bolt with Washer
22
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 5
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
23
Required: 1
CHAMBER, AIR
Price unavailable
Scissor Clip
24
Yamaha Motors
Scissor Clip90467-19051-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
25
Required: 1
PIPE
Price unavailable
26
Required: 1
GROMMET
Price unavailable
27
Required: 1
BOLT, WITH WASHER
Price unavailable
28
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
