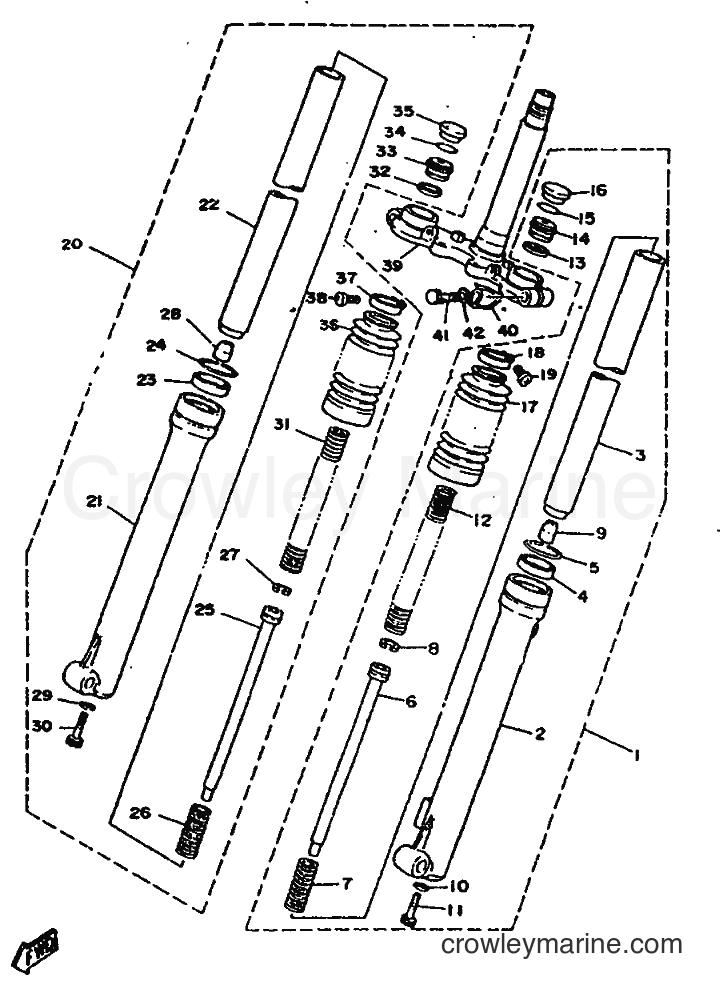

1987 Scooter DT75 - DT75 (2RY) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT75 (2RY) [999] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
3
Required: 1
. INNER TUBE COMP.1
Price unavailable
O-TYPE OIL SEAL
4
Yamaha Motors
O-TYPE OIL SEAL93110-30013-00
Required: 1
. OIL SEAL
Supersedes: 93110-30008-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Inner Circle Clip
5
Yamaha Motors
Inner Circle Clip93450-43072-00
Required: 1
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
6
Required: 1
. PISTON, FRONT FORK
Price unavailable
7
Required: 1
. SPRING, REBOUND
Price unavailable
8
Required: 1
. RING, PISTON
Price unavailable
9
Required: 1
. SPINDLE, TAPER
Price unavailable
90430-08143-00
10
Yamaha Motors
90430-08143-0090430-08155-00
Required: 1
. WASHER, PLATE
Supersedes: 90201-081E6-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Socket Bolt
11
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
. BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
. SPRING, FRONT FORK
Price unavailable
O-Ring
13
Yamaha Motors
O-Ring93210-21001-00
Required: 1
. O-RING
Supersedes: 93210-21276-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.19
You save $1.30
More details
14
Required: 1
. BOLT, CAP
Price unavailable
Inner Circle Clip
15
Yamaha Motors
Inner Circle Clip93450-27071-00
Required: 1
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
. CAP
Price unavailable
17
Required: 1
. BOOT
Price unavailable
18
Required: 1
. BAND
Price unavailable
98507-04012-00
19
Yamaha Motors
98507-04012-0098506-04012-00
Required: 1
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
20
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
21
Required: 1
. TUBE, OUTER 2
Price unavailable
22
Required: 1
. INNER TUBE COMP.1
Price unavailable
O-TYPE OIL SEAL
23
Yamaha Motors
O-TYPE OIL SEAL93110-30013-00
Required: 1
. OIL SEAL
Supersedes: 93110-30008-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Inner Circle Clip
24
Yamaha Motors
Inner Circle Clip93450-43072-00
Required: 1
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
25
Required: 1
. PISTON, FRONT FORK
Price unavailable
26
Required: 1
. SPRING, REBOUND
Price unavailable
27
Required: 1
. RING, PISTON
Price unavailable
28
Required: 1
. SPINDLE, TAPER
Price unavailable
29
Required: 1
. WASHER, PLATE
Price unavailable
Socket Bolt
30
Yamaha Motors
Socket Bolt91314-08025-00
Required: 1
. BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
31
Required: 1
. SPRING, FRONT FORK
Price unavailable
O-Ring
32
Yamaha Motors
O-Ring93210-21001-00
Required: 1
. O-RING
Supersedes: 93210-21276-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.19
You save $1.30
More details
33
Required: 1
. BOLT, CAP
Price unavailable
Inner Circle Clip
34
Yamaha Motors
Inner Circle Clip93450-27071-00
Required: 1
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
35
Required: 1
. CAP
Price unavailable
36
Required: 1
. BOOT
Price unavailable
37
Required: 1
. BAND
Price unavailable
98507-04012-00
38
Yamaha Motors
98507-04012-0098506-04012-00
Required: 1
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.10
$1.78
You save $0.32
More details
39
Required: 1
UNDER BRACKET COMP.
Price unavailable
40
Required: 1
HOLDER, CABLE
Price unavailable
41
Required: 2
BOLT 1
Price unavailable
Washer (6TA)
42
Yamaha Motors
Washer (6TA)92907-10100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-10100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
