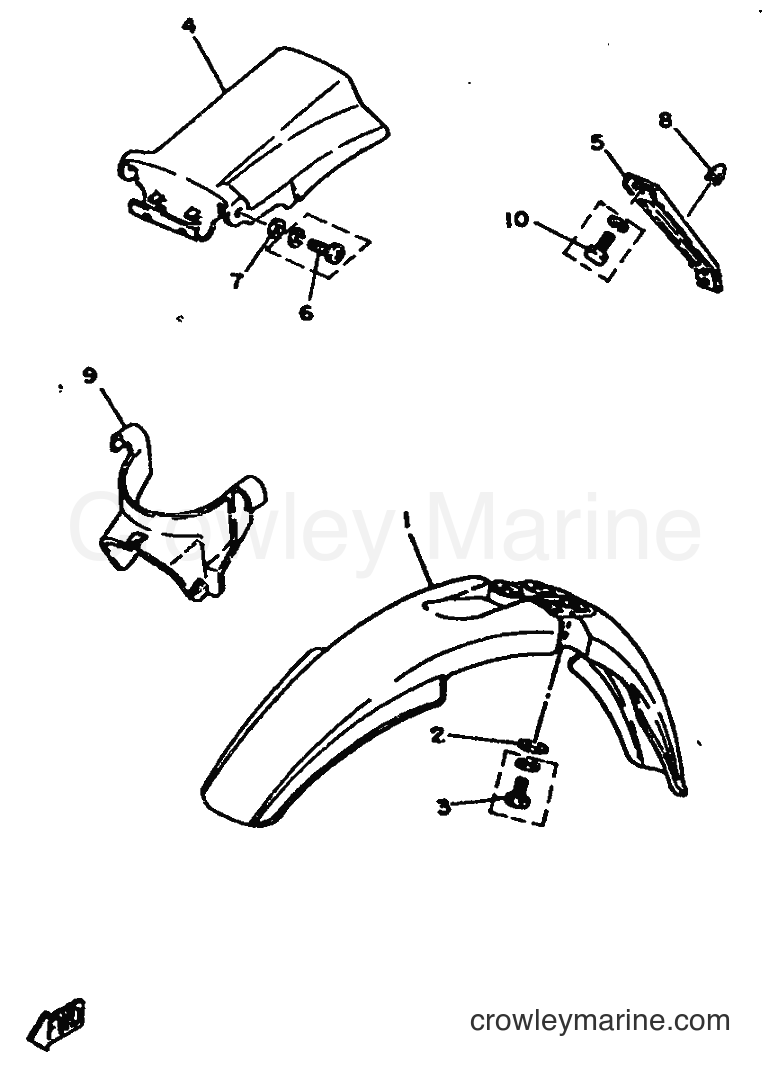

1987 Scooter DT75 - DT75 (2RY) [999] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT75 (2RY) [999] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 4
WASHER, PLATE
Price unavailable
3
Required: 4
BOLT, WITH WASHER
Price unavailable
4
Required: 1
FENDER, REAR
Price unavailable
4
Required: 1
FENDER, REAR
Price unavailable
4
Required: 1
FENDER, REAR
Price unavailable
5
Required: 1
BRACKET, REFLECTOR
Price unavailable
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 2
SCREW
Supersedes: 97606-06116-00
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
Plate Washer
7
Yamaha Motors
Plate Washer90201-062A8-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 1
DAMPER 2
Price unavailable
9
Required: 1
GUARD, MUD
Price unavailable
10
Required: 1
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
