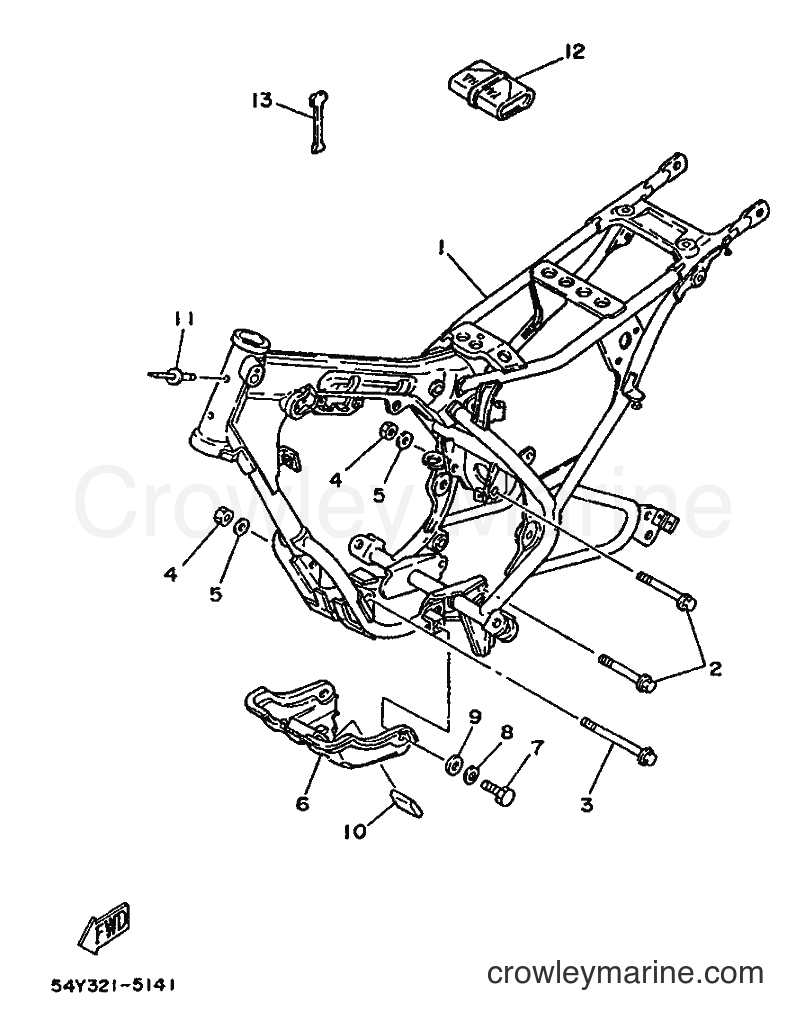

1987 Scooter DT50MX - DT50MX (2UN) [99A] FRAME diagram
![Yamaha Motors DT50MX (2UN) [99A] - FRAME](https://cdn.crowleymarine.com/yamaha/v9PDBAYa.png)
1
Required: 1
FRAME COMP.
Price unavailable
1
Required: 1
FRAME COMP.
Price unavailable
2
Yamaha Motors
Flange Bolt95817-08090-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-08090-00
$5.09
You save $0.90
3
Yamaha Motors
Flange Bolt (4EM)95817-08120-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08120-00
$4.67
You save $0.82
4
Yamaha Motors
NUT95617-08100-00
Required: 2
NUT, U
Supersedes: 95601-08100-00
$8.92
You save $1.57
5
Required: 2
WASHER, PLATE
Price unavailable
6
Required: 1
PROTECTOR, ENGINE
Price unavailable
$0.81
You save $0.14
8
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$1.10
You save $0.20
9
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92906-06600-00
In stock
5+ in stock
$0.85
You save $0.15
10
Required: 2
DAMPER, RUBBER 1
Price unavailable
11
Required: 2
RIVET, BLIND
Price unavailable
12
Required: 1
TOOL KIT
Price unavailable
13
Required: 1
SPRING SEAT WRENCH
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
