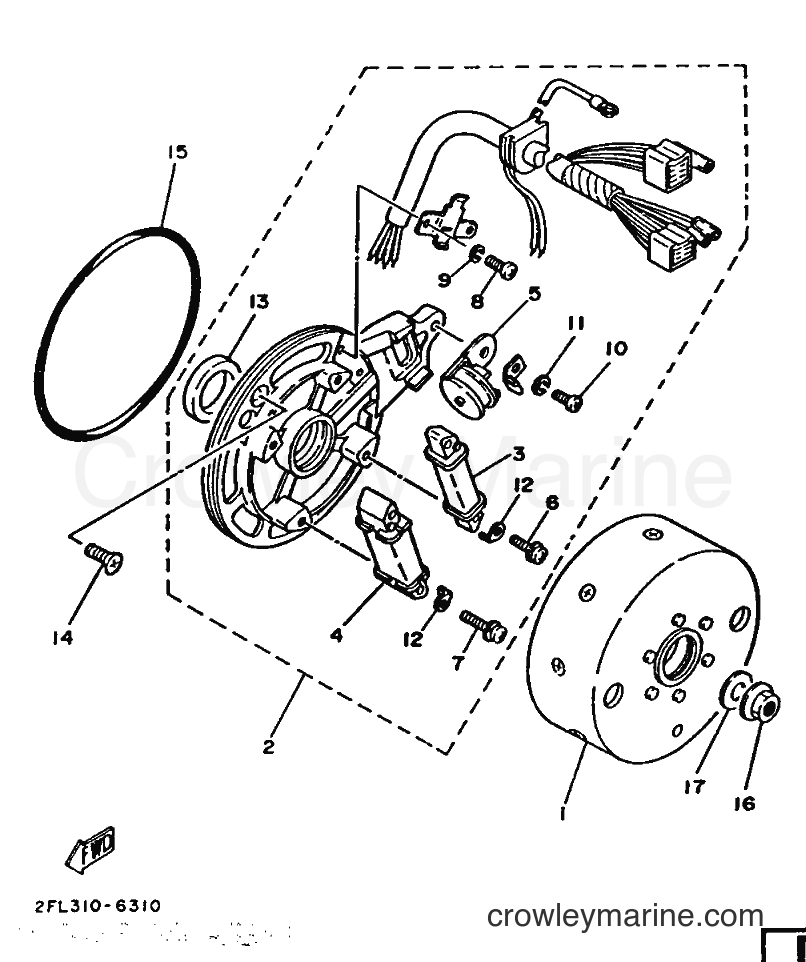

1986 Scooter T80 - T80 (2FL) [999] GENERATOR diagram
![Yamaha Motors T80 (2FL) [999] - GENERATOR](https://cdn.crowleymarine.com/yamaha/zZye2QfP.png)
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
BASE ASSY
Price unavailable
3
Yamaha Motors
COIL, CHARGE37A-85520-M2-00
Required: 1
. COIL, CHARGE
Supersedes: 14L-85520-M0-00
$81.59
You save $14.40
4
Required: 1
. COIL, LIGHTING 1
Price unavailable
5
Yamaha Motors
Pulser Coil22K-85595-M0-00
Required: 1
. COIL, PULSER
$61.19
You save $10.80
6
Required: 2
. SCREW, WITH WASHER
Price unavailable
7
Required: 2
. SCREW, WITH WASHER
Price unavailable
8
Required: 2
. SCREW, PAN HEAD
Price unavailable
9
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
10
Yamaha Motors
Screw97885-05010-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98501-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
11
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
. WASHER, SPRING
Supersedes: 92901-05100-00
In stock
Only 5 remaining
$0.28
You save $0.07
12
Yamaha Motors
TERMINAL,EARTH 22T4-85569-M1-00
Required: 2
. TERMINAL, EARTH 2
$3.20
You save $0.56
$10.62
You save $1.87
14
Yamaha Motors
98707-06014-0098701-06014-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 92701-06015-00
$0.81
You save $0.14
15
Yamaha Motors
O-Ring93211-077A5-00
Required: 1
O-RING
Supersedes: 93211-08563-00
$7.22
You save $1.27
$8.92
You save $1.57
17
Yamaha Motors
Plate Washer90201-102G9-00
Required: 1
WASHER, PLATE
Supersedes: 90201-101A4-00
$8.92
You save $1.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
