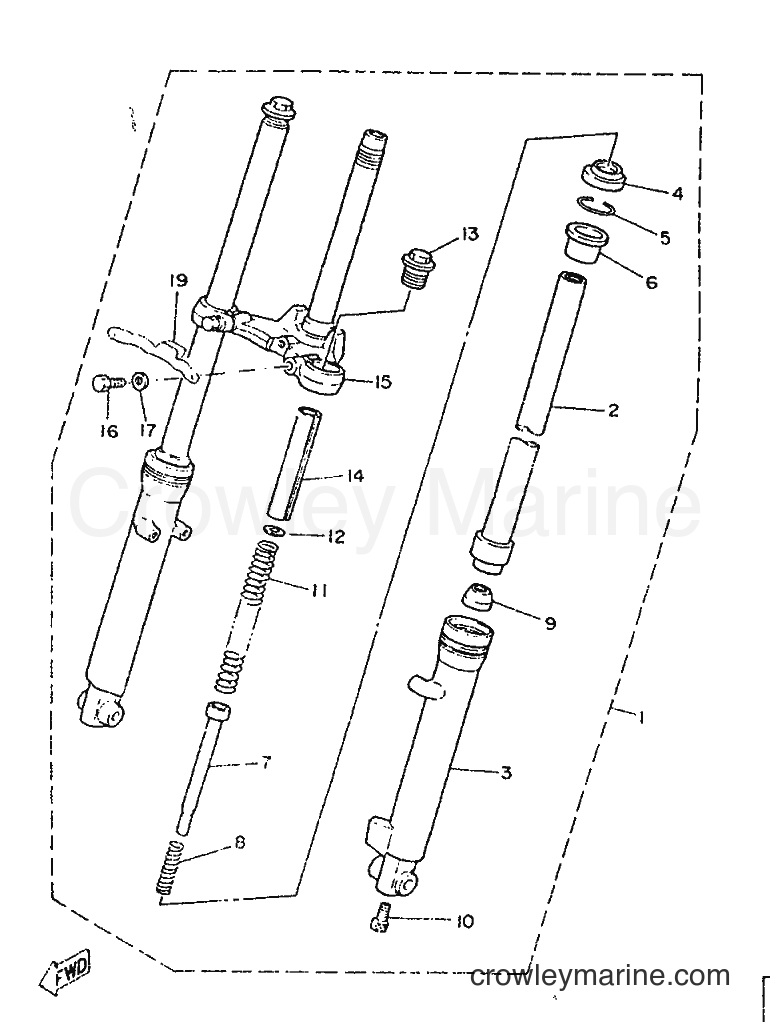

1986 Scooter ME50 - ME50 (1TM) [999] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors ME50 (1TM) [999] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 2
. INNER TUBE COMP.1
Price unavailable
3
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
3
Required: 1
TUBE, OUTER (L.H)
Price unavailable
3
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
3
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
3
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
4
Required: 2
. SEAL, DUST
Price unavailable
5
Required: 2
. CIRCLIP
Price unavailable
6
Required: 2
. METAL, SLIDE 1
Price unavailable
7
Required: 2
. SEAT, SPRING LOWER
Price unavailable
8
Required: 2
. SPRING, REBOUND
Price unavailable
9
Required: 2
. BUMP, STOP
Price unavailable
Socket Bolt
10
Yamaha Motors
Socket Bolt91314-08025-00
Required: 2
. BOLT
Supersedes: 91311-08025-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 2
. SPRING, FRONT FORK
Price unavailable
Plate Washer
12
Yamaha Motors
Plate Washer90201-087F0-00
Required: 2
. WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
13
Required: 2
. BOLT, CAP
Price unavailable
14
Required: 2
. SPACER
Price unavailable
15
Required: 1
. UNDER BRACKET COMP.
Price unavailable
Bolt (3AK)
16
Yamaha Motors
Bolt (3AK)97017-08035-00
Required: 2
. BOLT
Supersedes: 97021-08035-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Spring Washer
17
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-08100-00
Cross Ship
Leaves in 2-5 days
$5.60
$4.48
You save $1.12
More details
19
Required: 1
. STAY 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
