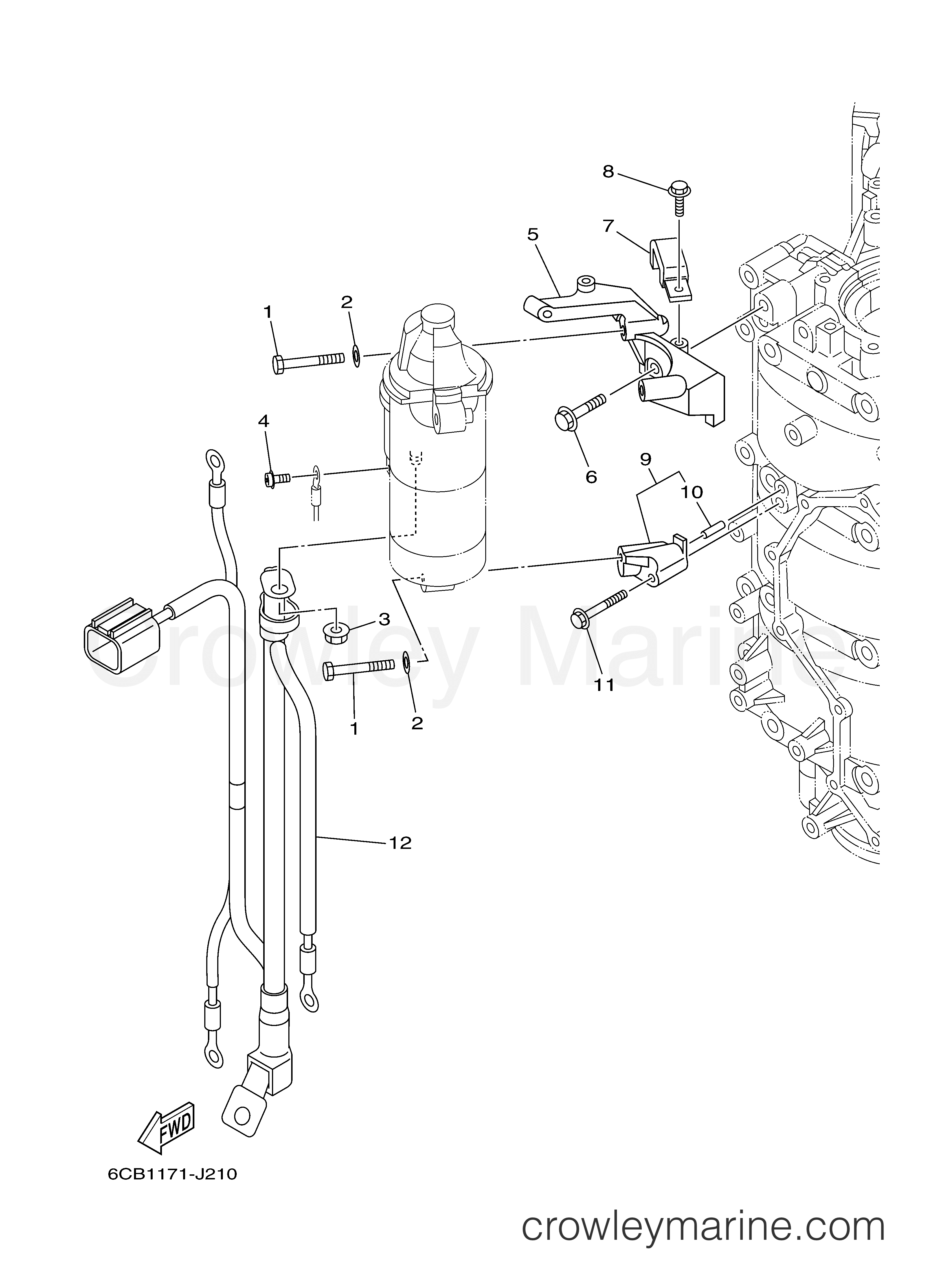

2014 Outboard 225hp - VF225LA ELECTRICAL 5 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VF225LA - ELECTRICAL 5
Change View:
Bolt
1
Yamaha Motors
Bolt97013-08045-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Nut
3
Yamaha Motors
Nut90179-08003-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Screw With Washer
4
Yamaha Motors
Screw With Washer97985-04308-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Starting Motor Bracket
5
Yamaha Motors
Starting Motor Bracket6CB-81822-02-00
Required: 1
BRACKET, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$128.50
$102.95
You save $25.55
More details
Lead Clamp
7
Yamaha Motors
Lead Clamp6CB-81443-00-00
Required: 1
CLAMP, LEAD 1
Cross Ship
Leaves in 2-5 days
$11.55
$9.82
You save $1.73
More details
Starting Motor Stay
9
Yamaha Motors
Starting Motor Stay6CB-81823-A0-00
Required: 1
STAY, STARTING MOTOR
Supersedes: 6CB-81823-00-00
Cross Ship
Leaves in 2-5 days
$105.25
$88.95
You save $16.30
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt90105-06151-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Wire Harness Assembly
12
Yamaha Motors
Wire Harness Assembly6CB-8259M-00-00
Required: 1
WIRE HARNESS ASSY 2
Cross Ship
Leaves in 2-5 days
$156.45
$132.98
You save $23.47
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
