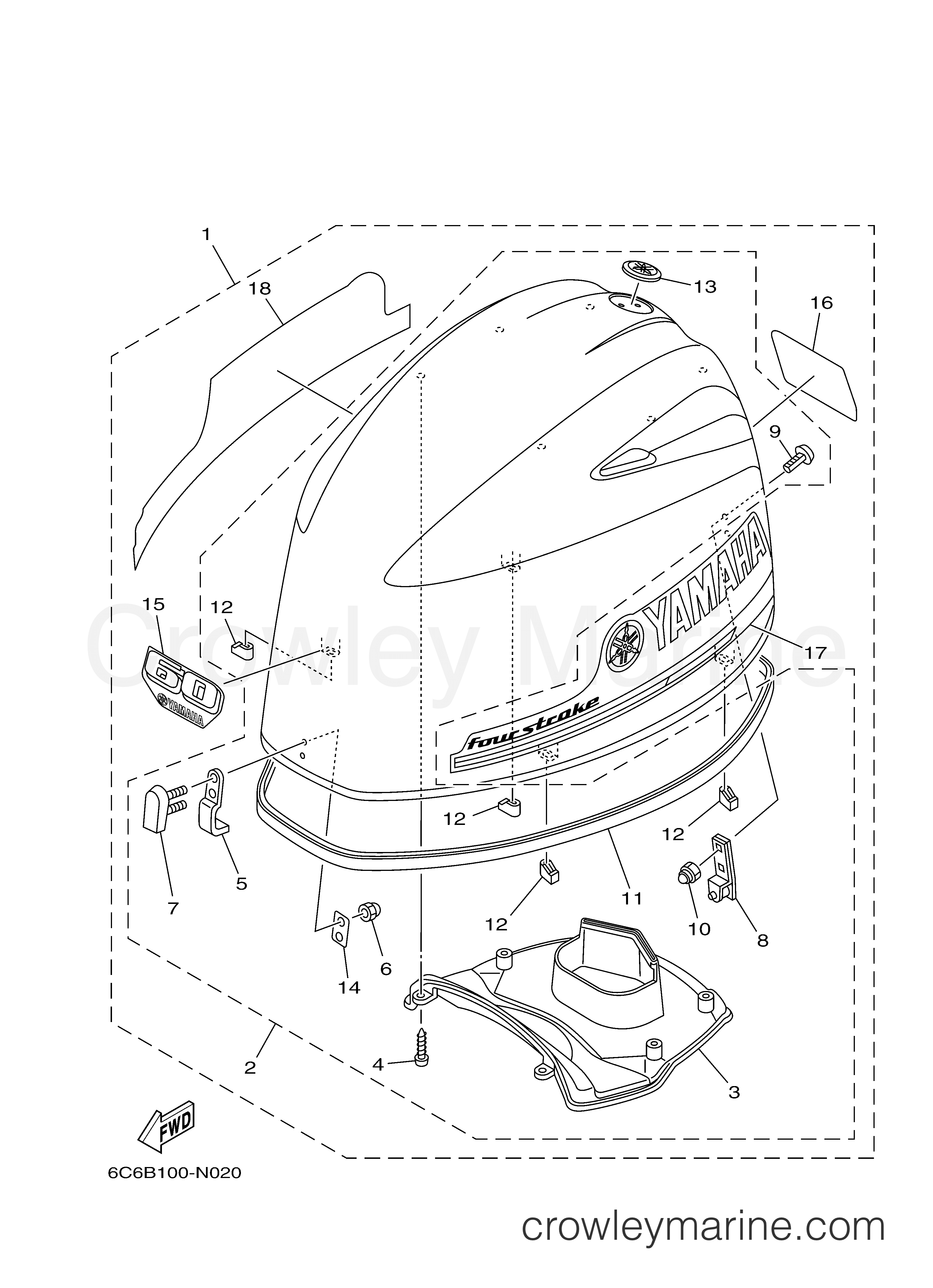

2014 Outboard 60hp - T60LB TOP COWLING diagram
1
Yamaha Motors
TOP COWLING ASSY6C6-42610-39-8D
Required: 1
TOP COWLING ASSY
Supersedes: 6C6-42610-30-00
$739.92
You save $130.58
2
Yamaha Motors
TOP COWLING W/O GRAPHICS6CJ-4261A-01-00
Required: 1
.TOP COWLING W/O GRAPHICS
Supersedes: 6CJ-4261A-00-00
$683.91
You save $120.69
3
Yamaha Motors
Air Duct Molding6CJ-42613-00-00
Required: 1
..MOLDING, AIR DUCT
$26.90
You save $4.75
4
Yamaha Motors
Tapping Screw90167-05017-00
Required: 6
..SCREW, TAPPING
$1.32
You save $0.23
$23.93
You save $4.22
$2.54
You save $0.45
7
Yamaha Motors
Clamp Cover6BG-42851-00-00
Required: 1
..COVER, CLAMP
$24.78
You save $4.37
$35.57
You save $6.28
$7.95
You save $1.40
10
Yamaha Motors
Self Locking Nut90185-06M05-00
Required: 2
..NUT, SELF-LOCKING
In stock
Only 1 remaining
$4.55
You save $0.80
$65.66
You save $11.59
12
Yamaha Motors
DAMPER 26BG-42662-01-00
Required: 4
..DAMPER
Supersedes: 6BG-42662-00-00
$4.68
You save $0.83
13
Yamaha Motors
Tuning Fork Mark6AH-42697-10-00
Required: 1
..TUNING FORK MARK
$18.76
You save $4.69
14
Yamaha Motors
Clamp Band Holder6BG-42649-00-00
Required: 1
..HOLDER, CLAMP BAND
$3.91
You save $0.69
15
Yamaha Motors
Front Graphic6C5-42677-10-00
Required: 1
.GRAPHIC, FRONT
$10.76
You save $2.69
16
Yamaha Motors
Rear Graphic6C6-42678-20-00
Required: 1
.GRAPHIC, REAR
$16.32
You save $2.88
17
Yamaha Motors
Side Graphic6CJ-42675-00-00
Required: 1
.GRAPHIC, SIDE 1
$36.89
You save $6.51
18
Yamaha Motors
Side Graphic6CJ-42676-00-00
Required: 1
.GRAPHIC, SIDE 2
$36.89
You save $6.51
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
