2014 Outboard 350hp - LF350UCB CYLINDER CRANKCASE 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

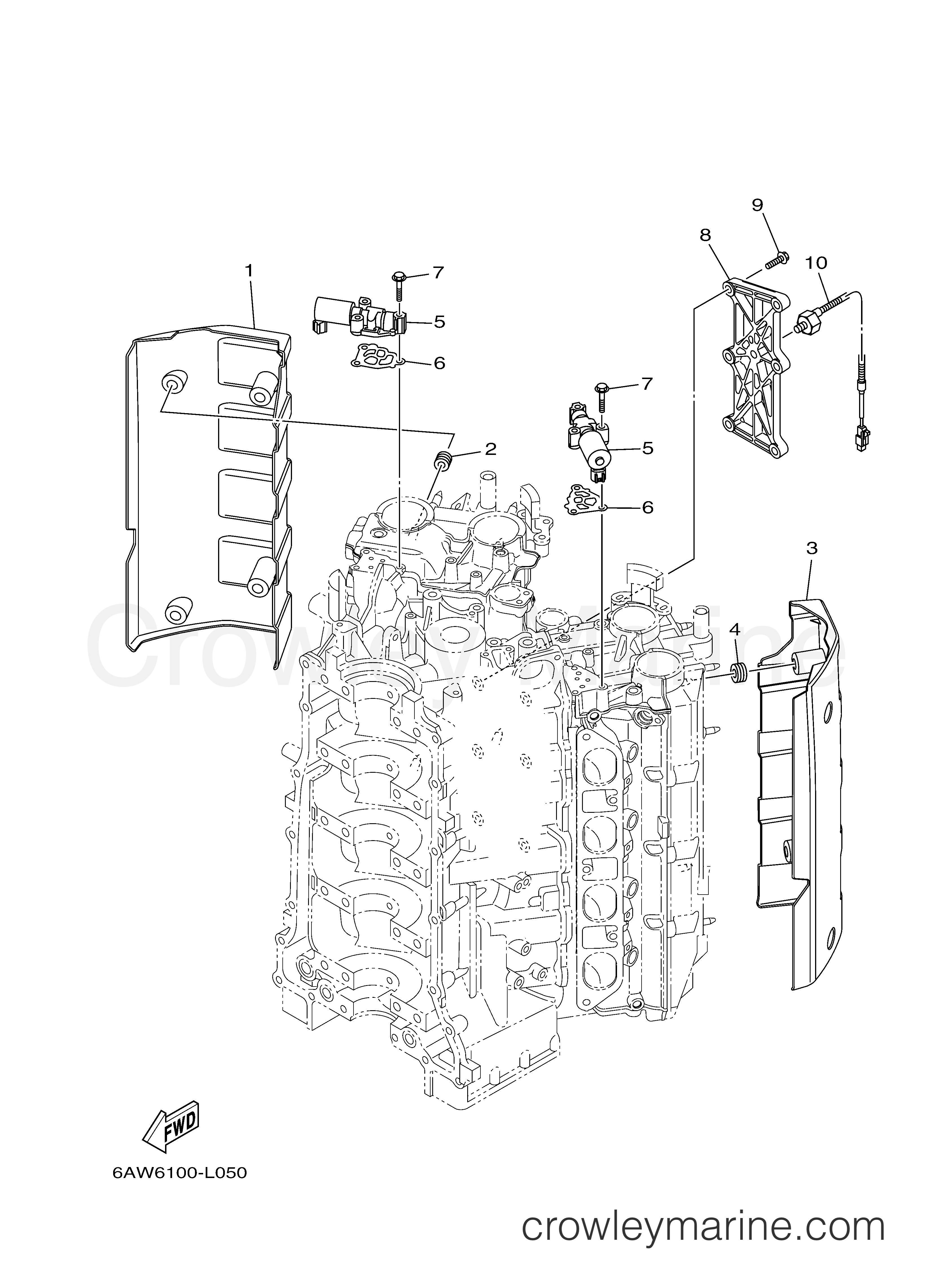

Yamaha Motors LF350UCB - CYLINDER CRANKCASE 3
Change View:
Cylinder Head Cover
1
Yamaha Motors
Cylinder Head Cover6AW-11186-10-00
Required: 1
COVER, CYLINDER HEAD SIDE 2
Cross Ship
Leaves in 2-5 days
$80.95
$68.81
You save $12.14
More details
Cylinder Head Cover
3
Yamaha Motors
Cylinder Head Cover6AW-11187-10-00
Required: 1
COVER, CYLINDER HEAD SIDE 3
Cross Ship
Leaves in 2-5 days
$80.95
$68.81
You save $12.14
More details
Solenoid Valve Assembly
5
Yamaha Motors
Solenoid Valve Assembly6CB-86120-00-00
Required: 2
SOLENOID VALVE ASSY
Cross Ship
Leaves in 2-5 days
$272.95
$232.01
You save $40.94
More details
Filter Gasket
6
Yamaha Motors
Filter Gasket6CB-1242F-00-00
Required: 2
.GASKET, FILTER
Cross Ship
Leaves in 2-5 days
$11.40
$9.12
You save $2.28
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt90105-06035-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.49
$1.99
You save $0.50
More details
Bracket
8
Yamaha Motors
Bracket6AW-1135A-00-00
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$212.90
$180.97
You save $31.94
More details
Flange Bolt
9
Yamaha Motors
Flange Bolt90105-08240-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.25
$5.31
You save $0.94
More details
Knock Sensor Assembly
10
Yamaha Motors
Knock Sensor Assembly6P2-85780-01-00
Required: 1
SENSOR, KNOCK
Supersedes: 6P2-85780-00-00
Cross Ship
Leaves in 2-5 days
$224.20
$190.95
You save $33.25
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
