All diagrams for this model

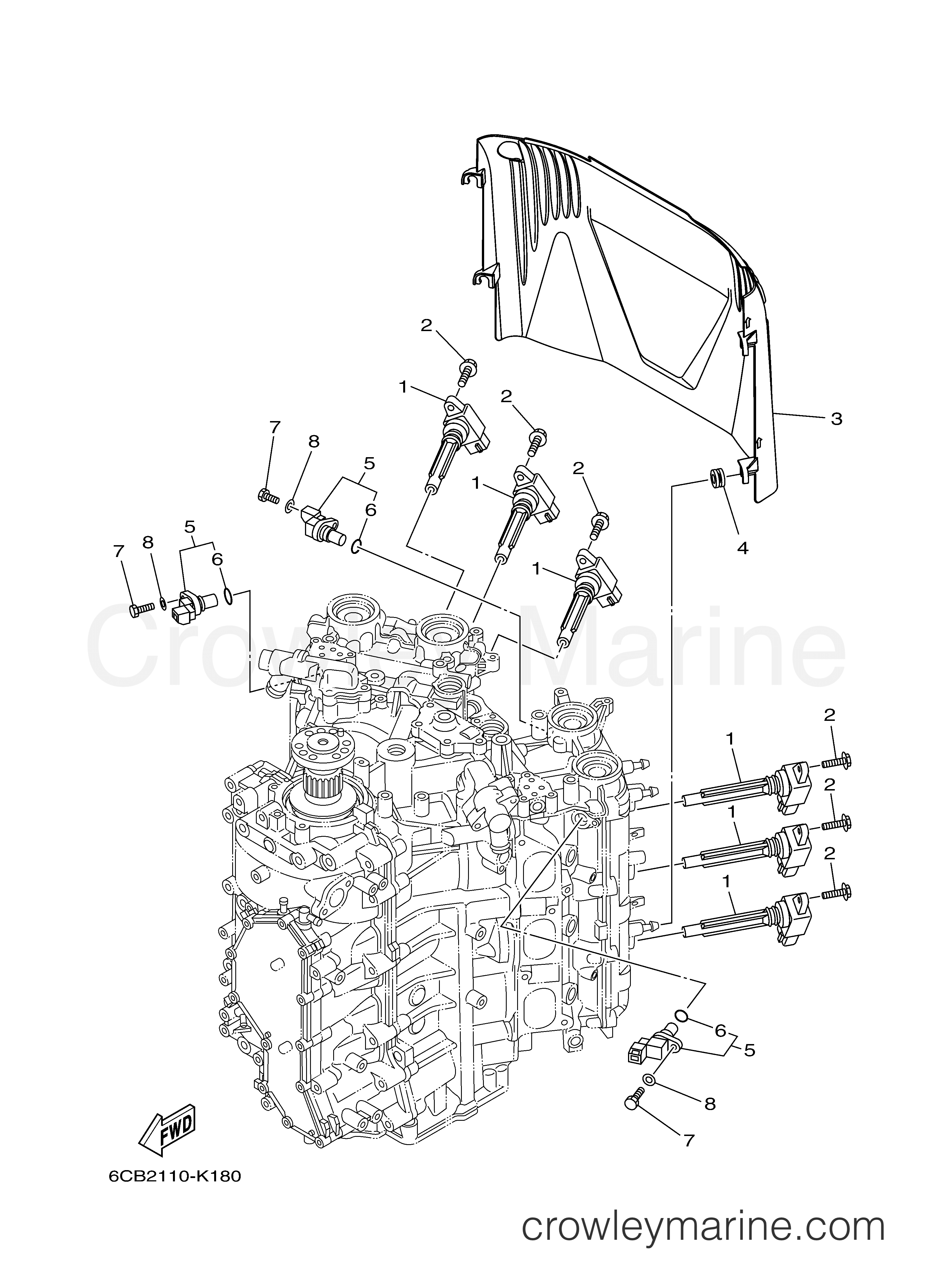

2014 Outboard 250hp - LF250XCA ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LF250XCA - ELECTRICAL 2
Change View:
Ignition Coil Assembly
1
Yamaha Motors
Ignition Coil Assembly6CB-82310-02-00
Required: 6
IGNITION COIL ASSY
Supersedes: 6CB-82310-00-00
Cross Ship
Leaves in 2-5 days
$174.50
$148.32
You save $26.18
More details
DEEP FLANGE BOLT
2
Yamaha Motors
DEEP FLANGE BOLT95D95-06025-00
Required: 6
BOLT, FLANGE
Supersedes: 95895-06025-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
Cam Position Sensor
5
Yamaha Motors
Cam Position Sensor6P2-85896-00-00
Required: 3
SENSOR, CAM POSITION
Cross Ship
Leaves in 2-5 days
$204.10
$173.48
You save $30.62
More details
O-Ring
6
Yamaha Motors
O-Ring6P2-85075-00-00
Required: 1
.O-RING
Cross Ship
Leaves in 2-5 days
$10.10
$8.59
You save $1.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
