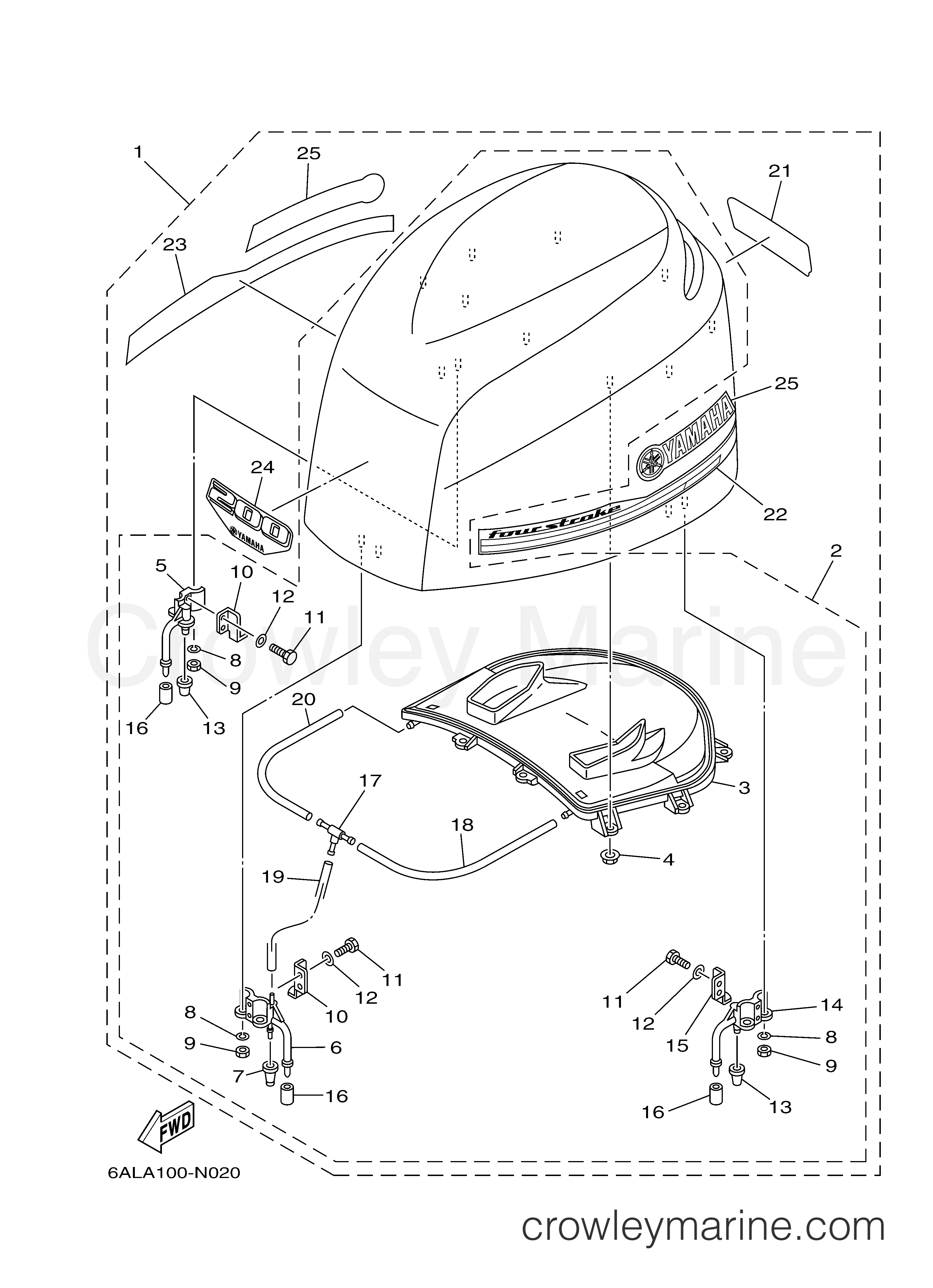

2014 Outboard 200hp - LF200XA TOP COWLING diagram
1
Yamaha Motors
Top Cowling Assembly6AL-42610-22-00
Required: 1
TOP COWLING ASSY
Supersedes: 6AL-42610-20-00
$1593.28
You save $281.17
2
Required: 1
.TOP COWLING W/O GRAPHICS
Price unavailable
3
Yamaha Motors
Air Duct Molding6P2-42613-00-00
Required: 1
..MOLDING, AIR DUCT
$157.25
You save $27.75
In stock
Only 4 remaining
$3.80
You save $0.95
5
Yamaha Motors
Clamp Band Holder68F-42647-01-00
Required: 1
..HOLDER, CLAMP BAND
$33.60
You save $8.40
6
Yamaha Motors
Clamp Band Holder69J-42647-01-00
Required: 1
..HOLDER, CLAMP BAND
In stock
Only 4 remaining
$59.92
You save $14.98
7
Yamaha Motors
Damper69J-42663-01-00
Required: 1
..DAMPER
Supersedes: 69J-42663-00-00
In stock
5+ in stock
$5.40
You save $1.35
8
Yamaha Motors
Spring Washer92995-06100-00
Required: 6
..WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.76
You save $0.69
9
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 6
..NUT, HEXAGON
In stock
5+ in stock
$3.84
You save $0.96
$37.36
You save $9.34
$2.21
You save $0.55
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
..WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
13
Yamaha Motors
Damper68F-42663-01-00
Required: 2
..DAMPER
Supersedes: 68F-42663-00-00
In stock
Only 2 remaining
$1.60
You save $0.40
14
Yamaha Motors
Clamp Band Holder68F-42648-01-00
Required: 1
..HOLDER, CLAMP BAND
In stock
Only 1 remaining
$35.88
You save $8.97
$30.52
You save $5.39
$5.40
You save $1.35
17
Yamaha Motors
Joint Pipe69J-24378-00-00
Required: 1
..PIPE, JOINT 3
$4.80
You save $0.85
18
Yamaha Motors
Hose90445-117F2-00
Required: 1
..HOSE (L240)
Supersedes: 90445-11M27-00
In stock
Only 2 remaining
$27.19
You save $6.80
19
Yamaha Motors
Hose (L800)90445-11083-00
Required: 1
..HOSE (L500)
Supersedes: 90445-11699-00
In stock
Only 1 remaining
$12.32
You save $2.17
20
Yamaha Motors
Hose90445-112E1-00
Required: 1
..HOSE (L300)
Supersedes: 90445-11182-00
$22.09
You save $3.90
-50%
21
Yamaha Motors
Rear Graphic6AL-42678-10-00
Required: 1
.GRAPHIC, REAR
In stock
Only 1 remaining
$21.00
You save $21.00
22
Yamaha Motors
Side Graphic6AS-42675-00-00
Required: 1
.GRAPHIC, SIDE 1
$66.89
You save $11.81
23
Yamaha Motors
Side Graphic6AS-42676-00-00
Required: 1
.GRAPHIC, SIDE 2
$66.89
You save $11.81
24
Yamaha Motors
Front Graphic6AL-42677-00-00
Required: 1
.GRAPHIC, FRONT
$35.70
You save $6.30
25
Yamaha Motors
Cowling Mark63P-42681-20-00
Required: 2
.MARK, COWLING
$24.44
You save $6.11
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
