2014 Outboard 9.9hp - F9.9LEB FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

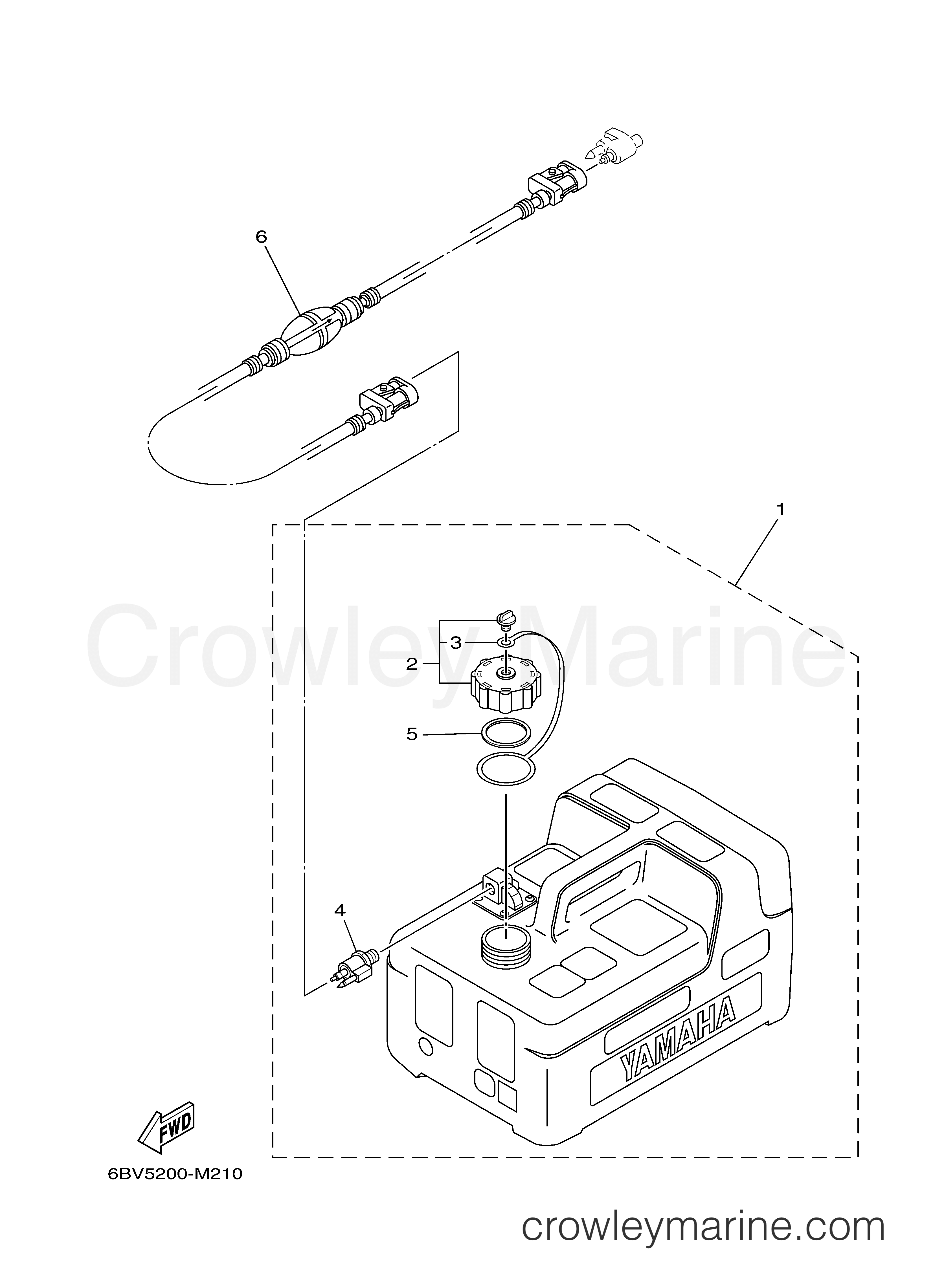

Yamaha Motors F9.9LEB - FUEL TANK
Change View:
FUEL TANK ASSEMBLY (12 Liters)
1
Yamaha Motors
FUEL TANK ASSEMBLY (12 Liters)6YL-24201-23-00
Required: 1
FUEL TANK ASSY (12L)
Cross Ship
Leaves in 2-5 days
$149.00
$126.65
You save $22.35
More details
Joint Pipe
4
Yamaha Motors
Joint Pipe6YL-24377-10-00
Required: 1
.PIPE, JOINT 2
Cross Ship
Leaves in 2-5 days
$31.60
$25.28
You save $6.32
More details
Ring
5
Yamaha Motors
Ring6YL-24629-00-00
Required: 1
.RING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
