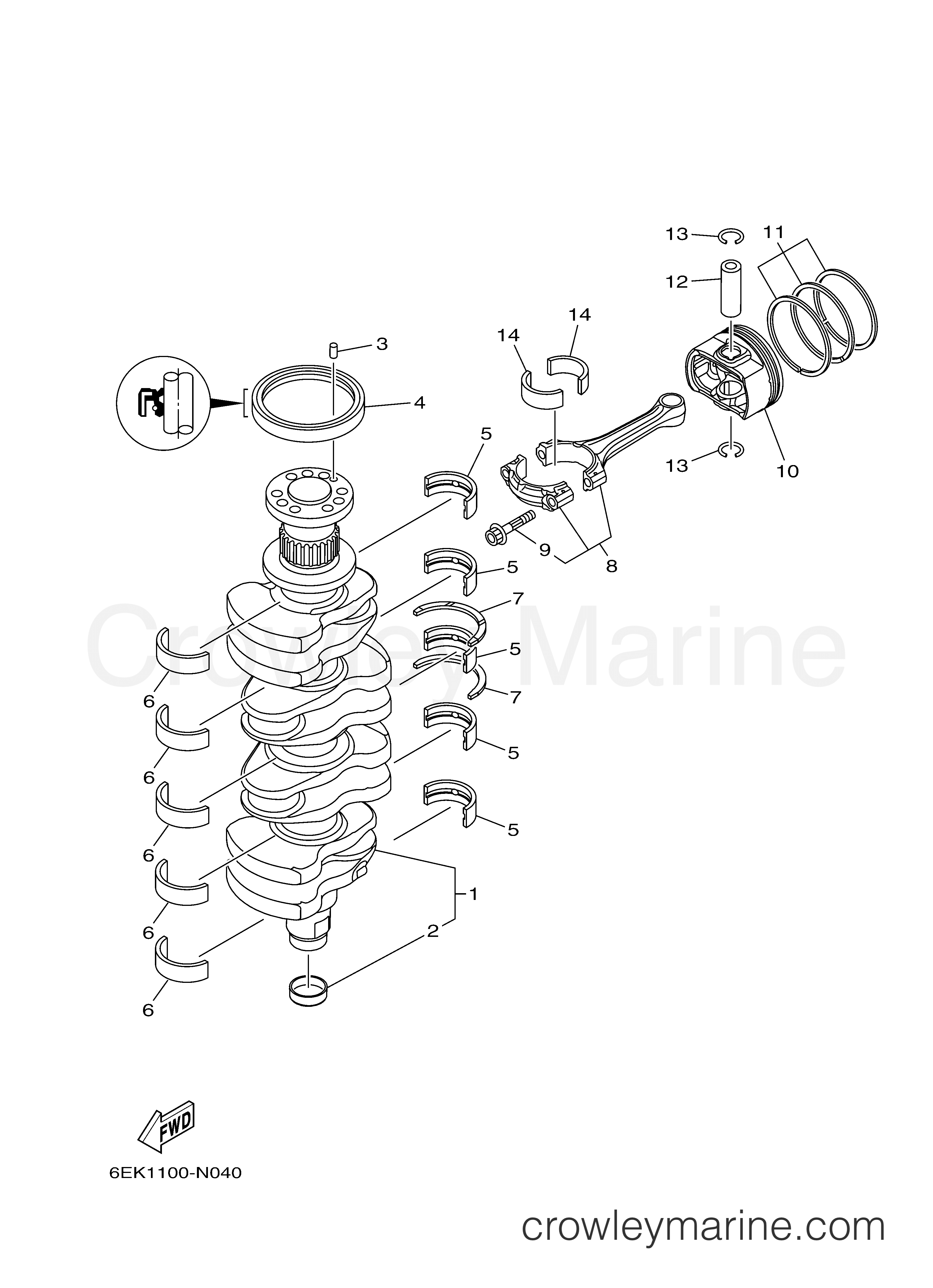

2014 Outboard 115hp - F115XB CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F115XB - CRANKSHAFT PISTON
Change View:
1
Required: 1
CRANKSHAFT
Price unavailable
Collar
2
Yamaha Motors
Collar6CB-11478-00-00
Required: 1
.COLLAR
Cross Ship
Leaves in 6-30 days
$68.90
$58.57
You save $10.34
More details
Oil Seal
4
Yamaha Motors
Oil Seal93102-85008-00
Required: 1
.OIL SEAL
Cross Ship
Leaves in 2-5 days
$38.40
$32.64
You save $5.76
More details
5
Required: 5
PLANE BEARING, CRANKSHAFT 1
Price unavailable
5
Required: 5
PLANE BEARING, CRANKSHAFT 1
Price unavailable
5
Required: 5
PLANE BEARING, CRANKSHAFT 1
Price unavailable
5
Required: 5
PLANE BEARING, CRANKSHAFT 1
Price unavailable
5
Required: 5
PLANE BEARING, CRANKSHAFT 1
Price unavailable
6
Required: 5
PLANE BEARING, CRANKSHAFT 2
Price unavailable
6
Required: 5
PLANE BEARING, CRANKSHAFT 2
Price unavailable
6
Required: 5
PLANE BEARING, CRANKSHAFT 2
Price unavailable
6
Required: 5
PLANE BEARING, CRANKSHAFT 2
Price unavailable
6
Required: 5
PLANE BEARING, CRANKSHAFT 2
Price unavailable
7
Required: 2
BEARING, THRUST 1
Price unavailable
8
Required: 4
CONNECTING ROD ASSY
Price unavailable
Connecting Rod Bolt
9
Yamaha Motors
Connecting Rod BoltK1C-A3275-00-00
Required: 2
.BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Piston (0.25mm O/S)
10
Yamaha Motors
Piston (0.25mm O/S)6EK-11635-02-00
Required: 4
PISTON (0.25MM O/S)
Supersedes: 6EK-11635-00-00
Cross Ship
Leaves in 2-5 days
$134.20
$114.07
You save $20.13
More details
Piston (Standard)
10
Yamaha Motors
Piston (Standard)6EK-11631-02-94
Required: 4
PISTON (STD)
Supersedes: 6EK-11631-00-93
Cross Ship
Leaves in 2-5 days
$111.10
$94.44
You save $16.67
More details
PISTON RING SET (0.25MM O/S)
11
Yamaha Motors
PISTON RING SET (0.25MM O/S)6EK-11604-01-00
Required: 4
PISTON RING SET (0.25MM O/S)
Supersedes: 6EK-11604-00-00
Cross Ship
Leaves in 2-5 days
$62.40
$53.04
You save $9.36
More details
PISTON RING SET (STD)
11
Yamaha Motors
PISTON RING SET (STD)6EK-11603-01-00
Required: 4
PISTON RING SET (STD)
Supersedes: 6EK-11603-00-00
Cross Ship
Leaves in 2-5 days
$77.35
$65.75
You save $11.60
More details
14
Required: 8
PLANE BEARING, CONNECTING ROD
Price unavailable
14
Required: 8
PLANE BEARING, CONNECTING ROD
Price unavailable
14
Required: 8
PLANE BEARING, CONNECTING ROD
Price unavailable
14
Required: 8
PLANE BEARING, CONNECTING ROD
Price unavailable
14
Required: 8
PLANE BEARING, CONNECTING ROD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
