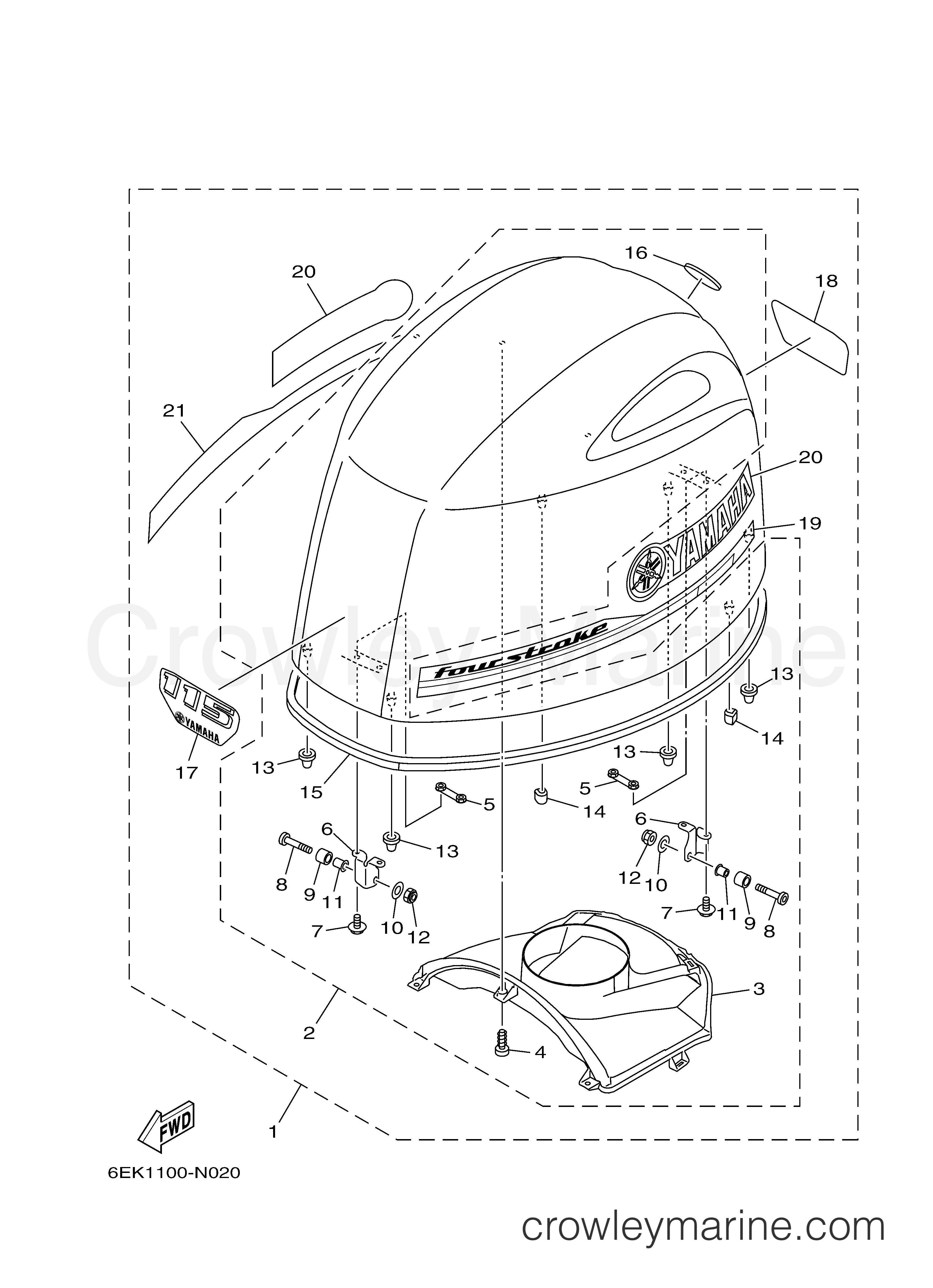

2014 Outboard 115hp - F115JB TOP COWLING diagram
1
Required: 1
TOP COWLING ASSY
Price unavailable
2
Required: 1
..TOP COWLING W/O GRAPHICS
Price unavailable
3
Required: 1
..MOLDING, AIR DUCT
Price unavailable
4
Yamaha Motors
.SCREW, TAPPING97780-60516-00
Required: 3
..SCREW, TAPPING
$1.40
You save $0.25
5
Required: 2
..PLATE, CLAMP
Price unavailable
6
Required: 2
..HOLDER, CLAMP BAND
Price unavailable
7
Yamaha Motors
Flange Bolt90105-06039-00
Required: 4
..BOLT, FLANGE
In stock
Only 4 remaining
$2.85
You save $0.50
8
Yamaha Motors
Hexagon Bolt, Socket Button90111-08078-00
Required: 2
..BOLT,HEX SOCKET BUTTON
$5.99
You save $1.06
In stock
Only 2 remaining
$4.80
You save $0.85
10
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
..WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 2 remaining
$4.01
You save $0.71
12
Yamaha Motors
Flange Nut95780-08300-00
Required: 2
..NUT, FLANGE
$10.03
You save $1.77
13
Yamaha Motors
Damper68F-42663-01-00
Required: 4
..DAMPER
Supersedes: 68F-42663-00-00
In stock
Only 2 remaining
$1.70
You save $0.30
14
Required: 2
..DAMPER
Price unavailable
$99.92
You save $17.63
16
Required: 1
..TUNING FORK MARK
Price unavailable
17
Yamaha Motors
Front Graphic6D7-42677-10-00
Required: 1
.GRAPHIC, FRONT
$15.55
You save $2.75
18
Yamaha Motors
Rear Graphic68V-42678-50-00
Required: 1
.GRAPHIC, REAR
$52.78
You save $9.32
19
Yamaha Motors
Side Graphic6EK-42675-00-00
Required: 1
.GRAPHIC, SIDE 1
$58.14
You save $10.26
20
Yamaha Motors
Cowling Mark6D6-42681-00-00
Required: 2
.MARK, COWLING
In stock
Only 1 remaining
$26.05
You save $4.60
21
Yamaha Motors
Side Graphic6EK-42676-00-00
Required: 1
.GRAPHIC, SIDE 2
$58.14
You save $10.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
