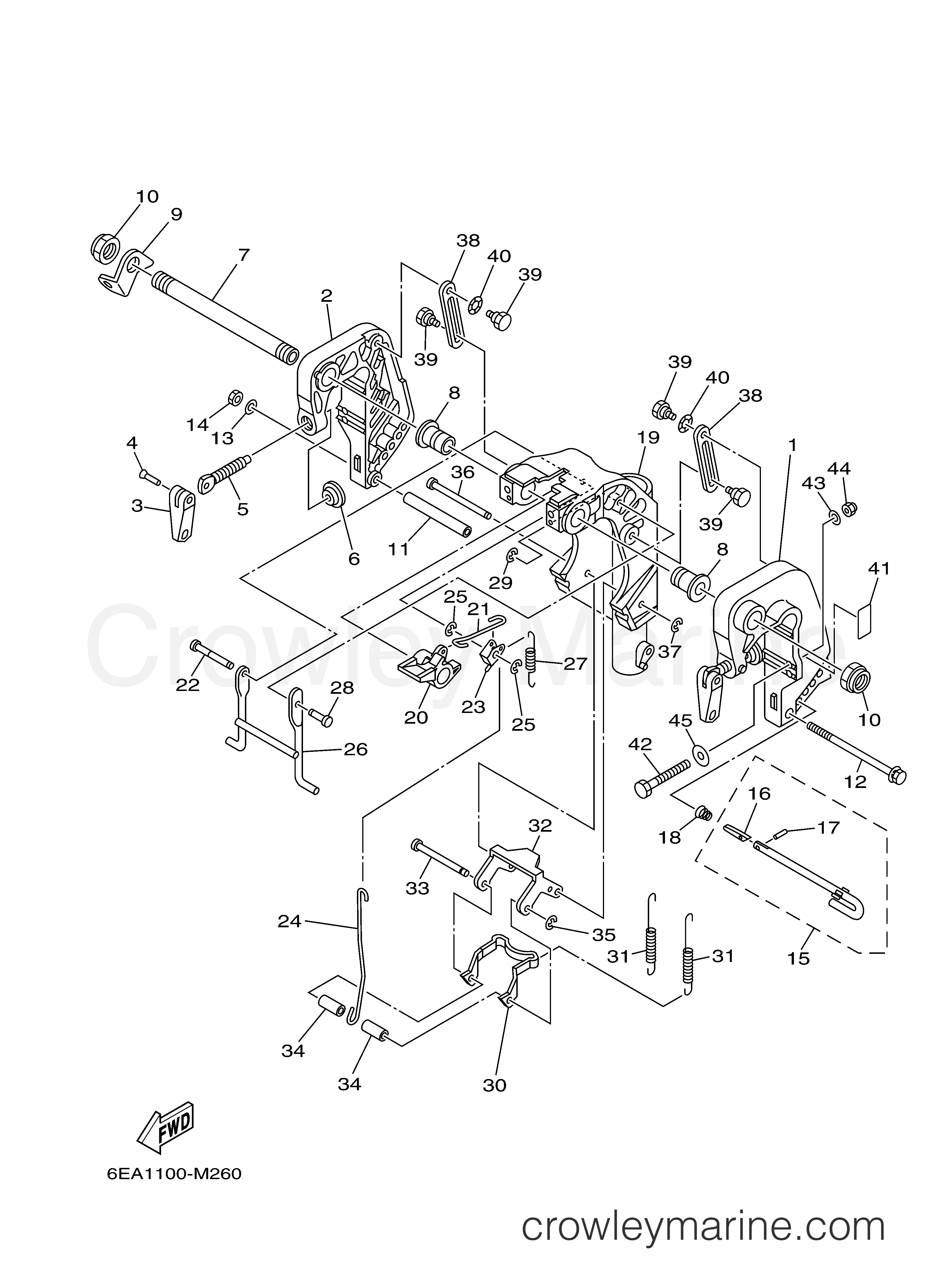

2013 Outboard 9.9hp - T9.9LEHB BRACKET 1 diagram
1
Yamaha Motors
Clamp Bracket 16AH-43111-00-8D
Required: 1
BRACKET, CLAMP 1
Supersedes: 6AH-43111-00-4D
$256.49
You save $45.26
2
Yamaha Motors
Clamp Bracket 26AH-43112-00-8D
Required: 1
BRACKET, CLAMP 2
Supersedes: 6AH-43112-00-4D
$256.49
You save $45.26
3
Yamaha Motors
Transom Clamp Handle6E0-43118-01-00
Required: 2
HANDLE, TRANSOM CLAMP
In stock
5+ in stock
$7.61
You save $1.34
In stock
5+ in stock
$5.06
You save $0.89
5
Yamaha Motors
Transom Clamp Screw6L2-43116-00-00
Required: 2
SCREW, TRANSOM CLAMP
Supersedes: 6E7-43116-00-00
In stock
Only 2 remaining
$32.38
You save $5.72
6
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
In stock
Only 2 remaining
$12.07
You save $2.13
7
Yamaha Motors
Clamp Bracket Bolt63W-43131-01-00
Required: 1
BOLT, CLAMP BRACKET
In stock
Only 1 remaining
$71.14
You save $12.56
In stock
5+ in stock
$7.73
You save $1.37
9
Yamaha Motors
Clamp Bracket Plate66R-43113-00-00
Required: 1
PLATE, CLAMP BRACKET
$9.69
You save $1.71
10
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-22043-00
In stock
5+ in stock
$20.36
You save $3.59
In stock
Only 5 remaining
$12.15
You save $2.14
$6.37
You save $1.12
13
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 4 remaining
$8.07
You save $1.42
In stock
5+ in stock
$44.63
You save $7.88
16
Yamaha Motors
Tilt Lock Plate689-43165-00-00
Required: 1
.PLATE, TILT LOCK
$6.54
You save $1.16
$8.92
You save $1.57
18
Yamaha Motors
Conical Spring90502-10M07-00
Required: 1
SPRING, CONICAL
$3.02
You save $0.53
19
Yamaha Motors
Swivel Bracket6AU-43311-10-8D
Required: 1
BRACKET, SWIVEL 1
Supersedes: 6AU-43311-10-4D
$426.96
You save $75.35
In stock
Only 1 remaining
$15.04
You save $2.66
21
Yamaha Motors
Tilt Lock Rod6DR-43616-00-00
Required: 1
ROD, TILT LOCK
$5.23
You save $0.92
In stock
Only 1 remaining
$8.59
You save $1.52
In stock
Only 1 remaining
$3.65
You save $0.65
24
Yamaha Motors
Tilt Lock Rod6AH-43617-00-00
Required: 1
ROD, TILT LOCK
$9.10
You save $1.61
In stock
Only 2 remaining
$8.07
You save $1.42
$69.83
You save $12.32
27
Yamaha Motors
Tension Spring90506-20025-00
Required: 1
SPRING, TENSION
$6.08
You save $1.07
28
Yamaha Motors
Stopper Shaft63V-43191-00-00
Required: 1
SHAFT, STOPPER
In stock
Only 3 remaining
$6.71
You save $1.19
In stock
Only 2 remaining
$8.07
You save $1.42
30
Yamaha Motors
Tilt Lock Plate6AH-43614-00-00
Required: 1
PLATE, TILT LOCK
$48.53
You save $8.57
31
Yamaha Motors
Tension Spring90506-23016-00
Required: 2
SPRING, TENSION
$11.26
You save $1.99
32
Yamaha Motors
Tilt Lock Plate6AH-43615-00-00
Required: 1
PLATE, TILT LOCK
$24.86
You save $4.39
33
Yamaha Motors
Tilt Lock Shaft68T-43611-00-00
Required: 1
SHAFT, TILT LOCK
$6.29
You save $1.11
$3.02
You save $0.53
35
Yamaha Motors
Clip99080-04600-00
Required: 1
.CIRCLIP
Supersedes: 93430-04M03-00
In stock
Only 3 remaining
$1.69
You save $0.30
36
Yamaha Motors
Reverse Lock Shaft68T-43659-00-00
Required: 1
SHAFT, REVERSE LOCK
$8.59
You save $1.52
In stock
Only 2 remaining
$8.07
You save $1.42
$7.61
You save $1.34
In stock
5+ in stock
$3.70
You save $0.65
$4.72
You save $0.83
41
Yamaha Motors
Label (Spark, Ignition))63V-82377-50-00
Required: 1
LABEL (SPARK,IGNITION)
$3.49
You save $0.62
$15.29
You save $2.70
43
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
44
Yamaha Motors
Flange Nut95780-08300-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-08057-00
$10.03
You save $1.77
45
Yamaha Motors
Plate Washer90201-08MA4-00
Required: 2
WASHER, PLATE
$10.12
You save $1.79
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
