All diagrams for this model

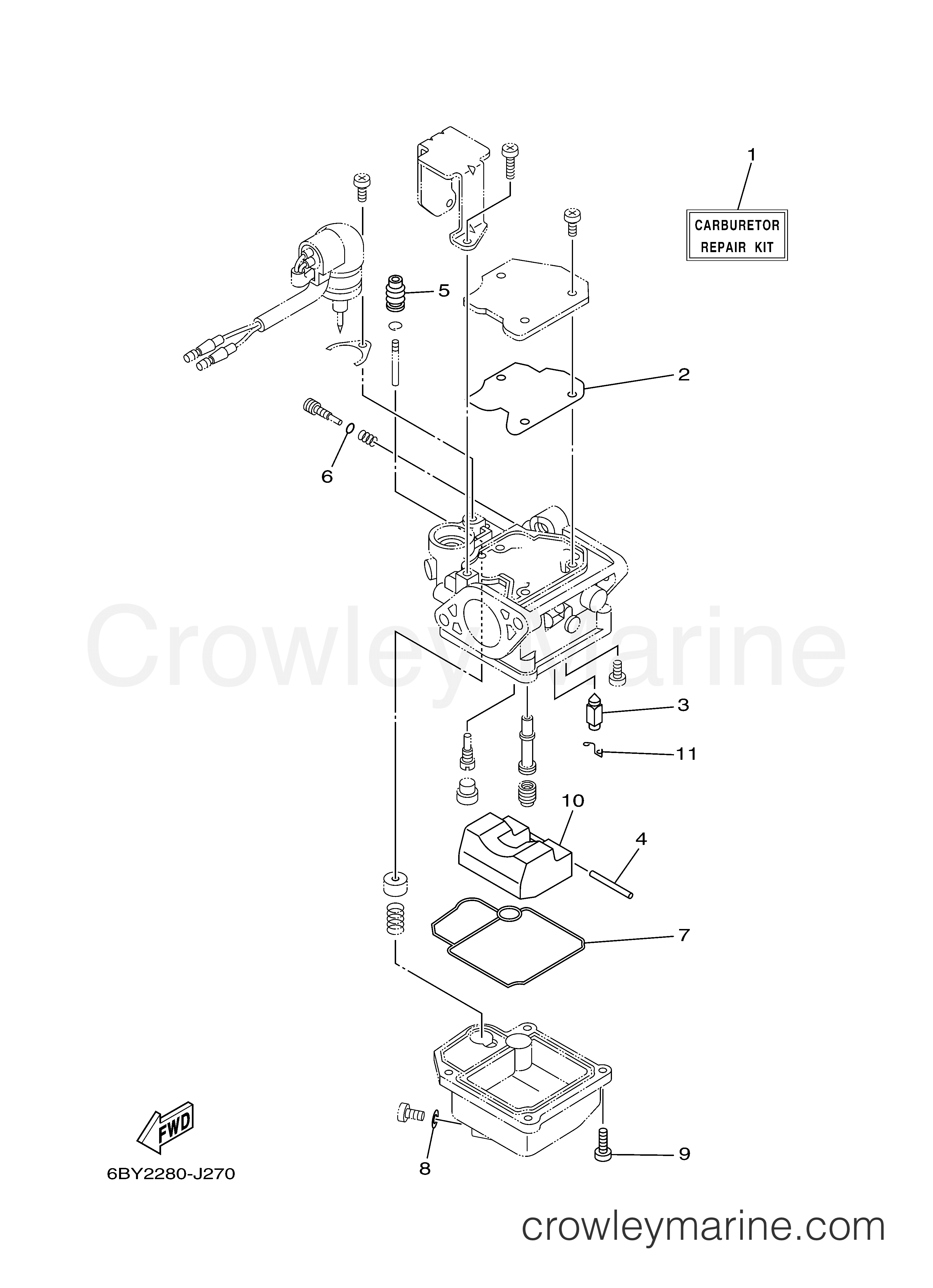

2013 Outboard 20hp - F20LEA REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F20LEA - REPAIR KIT 2
Change View:
Carburetor Repair Kit
1
Yamaha Motors
Carburetor Repair Kit6AH-W0093-02-00
Required: 1
CARBURETOR REPAIR KIT
Supersedes: 6AH-W0093-01-00
Cross Ship
Leaves in 6-30 days
$100.15
$79.95
You save $20.20
More details
Needle Valve
3
Yamaha Motors
Needle Valve6AH-14546-00-00
Required: 1
.VALVE, NEEDLE
Cross Ship
Leaves in 2-5 days
$41.85
$33.48
You save $8.37
More details
Float Arm Pin
4
Yamaha Motors
Float Arm Pin6H4-14548-00-00
Required: 1
.PIN, FLOAT ARM
Cross Ship
Leaves in 2-5 days
$9.65
$8.20
You save $1.45
More details
Float
10
Yamaha Motors
Float6AH-14985-00-00
Required: 1
.FLOAT
Cross Ship
Leaves in 2-5 days
$45.40
$38.59
You save $6.81
More details
Clip
11
Yamaha Motors
Clip633-14159-00-00
Required: 1
.CLIP
Supersedes: 663-14159-00-00
Cross Ship
Leaves in 2-5 days
$16.49
$13.19
You save $3.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
