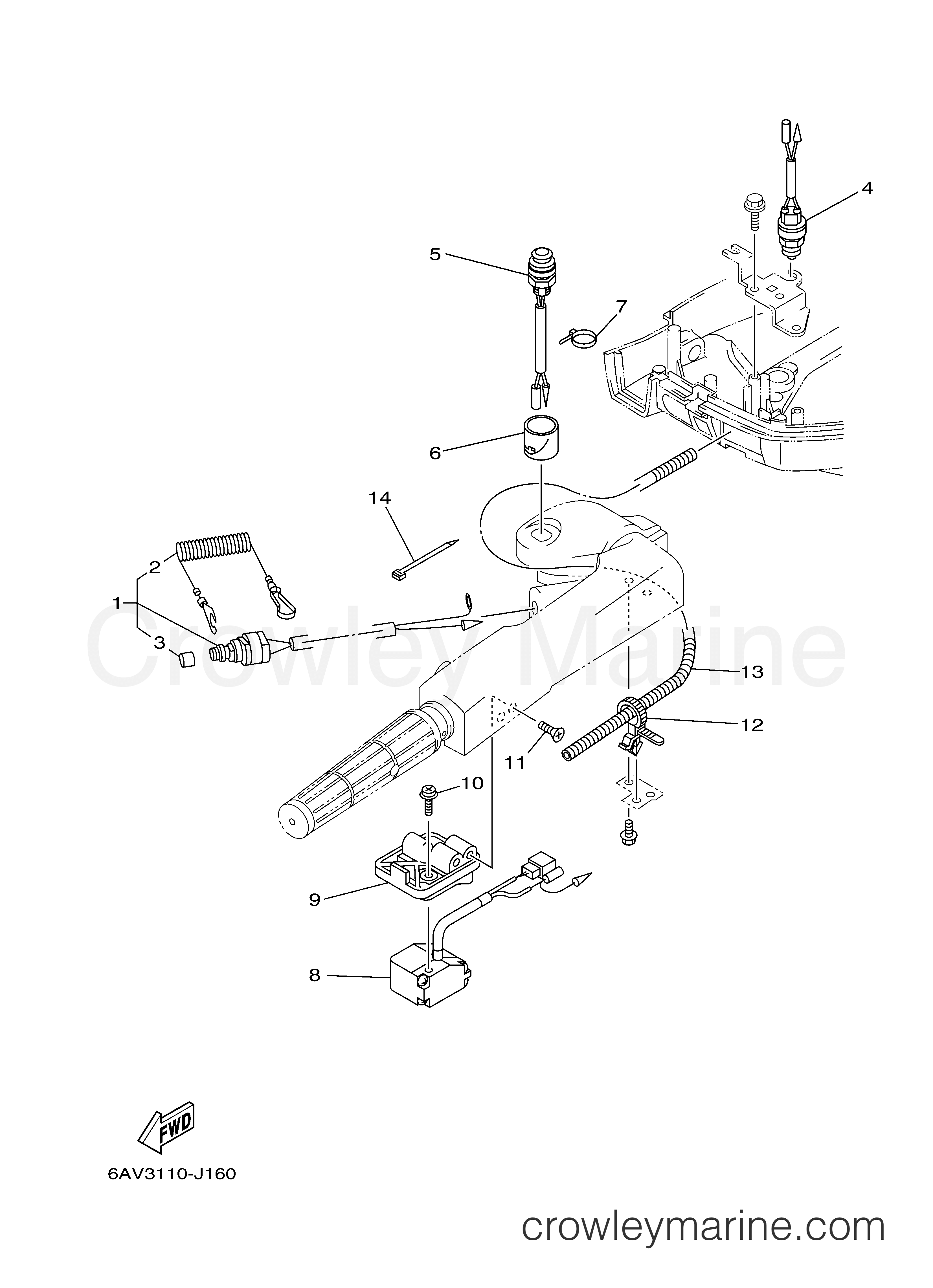

2012 Outboard 9.9hp - T9.9XPHA ELECTRICAL 4 diagram
1
Yamaha Motors
Engine Stop Switch Assembly65W-82575-01-00
Required: 1
ENGINE STOP SWITCH ASSY
In stock
5+ in stock
$62.80
You save $15.70
2
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
.LANYARD, STOP SWITCH
In stock
5+ in stock
$6.56
You save $1.64
In stock
5+ in stock
$7.24
You save $1.81
4
Yamaha Motors
Neutral Switch Assembly6F5-82540-01-00
Required: 1
NEUTRAL SWITCH ASSY
$40.92
You save $10.23
5
Yamaha Motors
Starting Switch Assembly68T-81870-00-00
Required: 1
STARTING SWITCH ASSY
$42.88
You save $10.72
6
Yamaha Motors
Switch Cover68T-81821-00-00
Required: 1
COVER, SWITCH
$5.70
You save $1.00
7
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
8
Yamaha Motors
Trim & Tilt Switch Assembly69G-82563-00-00
Required: 1
TRIM & TILT SWITCH ASSY
In stock
Only 1 remaining
$139.95
You save $34.70
In stock
Only 3 remaining
$24.88
You save $6.22
10
Yamaha Motors
Screw With Washer97985-06220-00
Required: 2
SCREW, WITH WASHER
In stock
Only 2 remaining
$2.79
You save $0.70
11
Yamaha Motors
Countersunk Screw90151-06040-00
Required: 3
SCREW, COUNTERSUNK
Supersedes: 90151-06004-00
In stock
Only 4 remaining
$3.08
You save $0.77
$7.22
You save $1.27
$5.61
You save $0.99
In stock
Only 2 remaining
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
