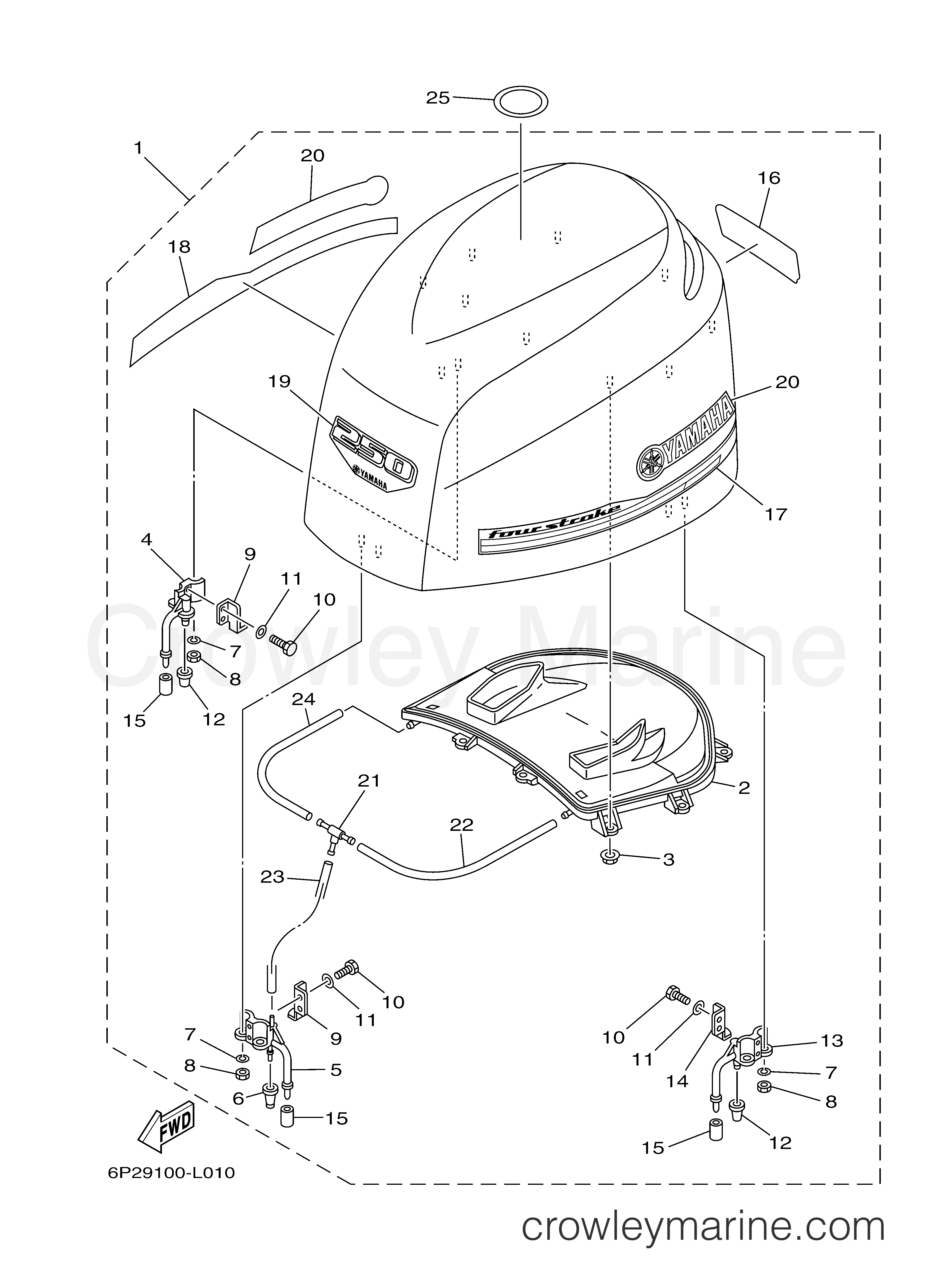

2012 Outboard 250hp - LF250UA TOP COWLING diagram
1
Yamaha Motors
Top Cowling Assembly6P2-42610-31-00
Required: 1
TOP COWLING ASSY
Supersedes: 6P2-42610-30-00
$1784.40
You save $314.89
2
Yamaha Motors
Air Duct Molding6P2-42613-00-00
Required: 1
.MOLDING, AIR DUCT
$157.25
You save $27.75
In stock
Only 4 remaining
$4.04
You save $0.71
4
Yamaha Motors
Clamp Band Holder68F-42647-01-00
Required: 1
.HOLDER, CLAMP BAND
$35.70
You save $6.30
5
Yamaha Motors
Clamp Band Holder69J-42647-01-00
Required: 1
.HOLDER, CLAMP BAND
In stock
Only 4 remaining
$63.66
You save $11.23
6
Yamaha Motors
Damper69J-42663-01-00
Required: 1
.DAMPER
Supersedes: 69J-42663-00-00
In stock
5+ in stock
$5.74
You save $1.01
7
Yamaha Motors
Spring Washer92995-06100-00
Required: 6
.WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$2.93
You save $0.52
8
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 6
.NUT, HEXAGON
In stock
5+ in stock
$4.08
You save $0.72
$39.69
You save $7.01
$2.35
You save $0.41
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
.WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
12
Yamaha Motors
Damper68F-42663-01-00
Required: 2
.DAMPER
Supersedes: 68F-42663-00-00
In stock
Only 2 remaining
$1.70
You save $0.30
13
Yamaha Motors
Clamp Band Holder68F-42648-01-00
Required: 1
.HOLDER, CLAMP BAND
In stock
Only 1 remaining
$38.12
You save $6.73
$30.52
You save $5.39
$5.74
You save $1.01
16
Yamaha Motors
Rear Graphic6P2-42678-20-00
Required: 1
.GRAPHIC, REAR
In stock
Only 1 remaining
$23.63
You save $4.17
17
Yamaha Motors
Side Graphic6AS-42675-00-00
Required: 1
.GRAPHIC, SIDE 1
$66.89
You save $11.81
18
Yamaha Motors
Side Graphic6AS-42676-00-00
Required: 1
.GRAPHIC, SIDE 2
$66.89
You save $11.81
19
Yamaha Motors
Front Graphic6P2-42677-20-00
Required: 1
.GRAPHIC, FRONT
In stock
5+ in stock
$18.57
You save $3.28
20
Yamaha Motors
Cowling Mark63P-42681-20-00
Required: 2
.MARK, COWLING
$25.97
You save $4.58
21
Yamaha Motors
Joint Pipe69J-24378-00-00
Required: 1
.PIPE, JOINT 3
$4.80
You save $0.85
22
Yamaha Motors
Hose90445-117F2-00
Required: 1
.HOSE (L240)
Supersedes: 90445-11M27-00
In stock
Only 2 remaining
$28.89
You save $5.10
23
Yamaha Motors
Hose (L800)90445-11083-00
Required: 1
.HOSE (L500)
Supersedes: 90445-11699-00
In stock
Only 1 remaining
$12.32
You save $2.17
24
Yamaha Motors
Hose90445-112E1-00
Required: 1
.HOSE (L300)
Supersedes: 90445-11182-00
$22.09
You save $3.90
25
Yamaha Motors
Caution Label67F-13434-20-00
Required: 1
LABEL, CAUTION
$10.12
You save $1.79
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
