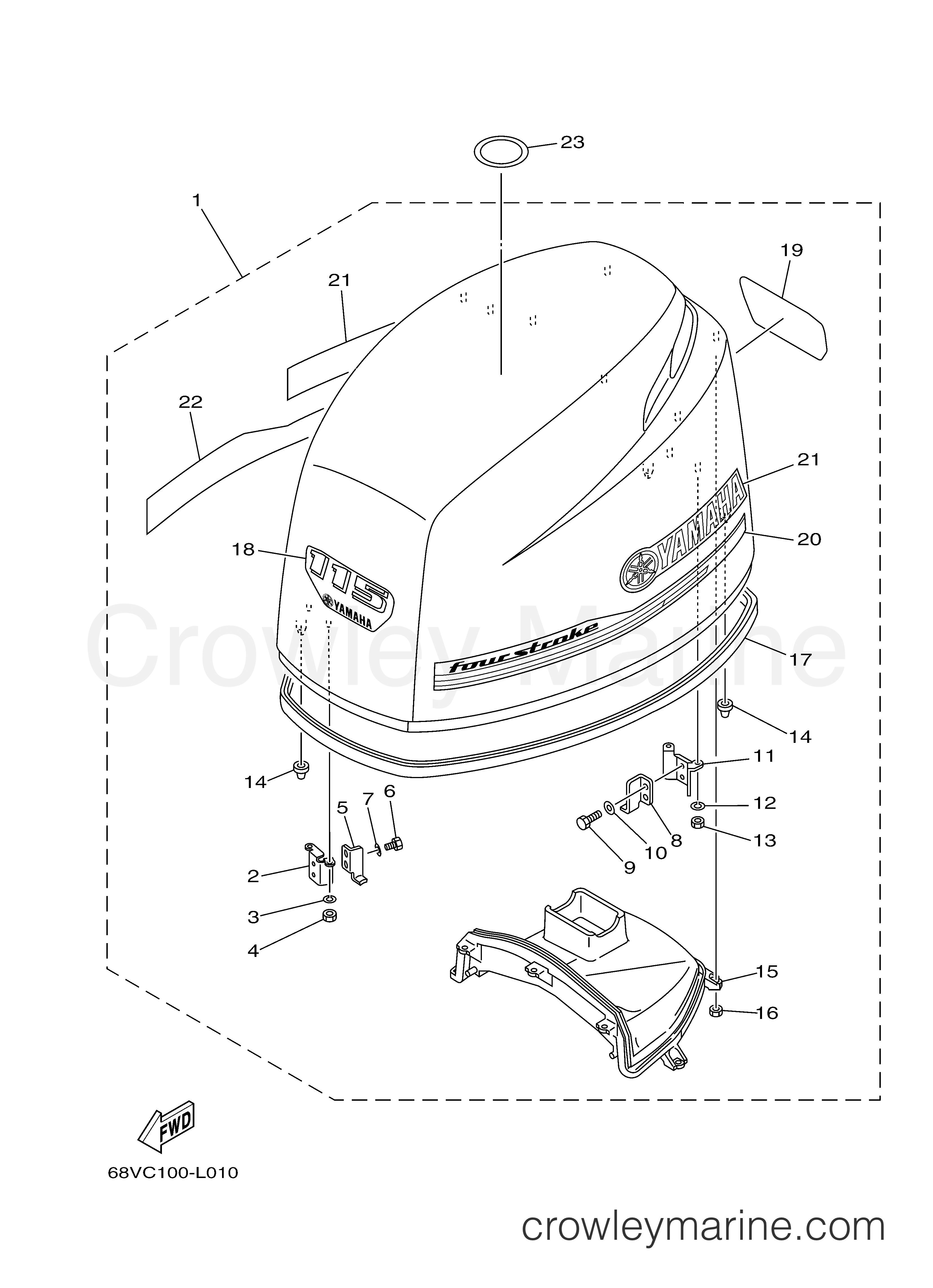

2012 Outboard 115hp - LF115XA TOP COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LF115XA - TOP COWLING
Change View:
Top Cowling Assembly
1
Yamaha Motors
Top Cowling Assembly68V-42610-52-00
Required: 1
TOP COWLING ASSY
Supersedes: 68V-42610-50-00
Cross Ship
Leaves in 2-5 days
$1753.20
$1490.22
You save $262.98
More details
Clamp Band Holder
2
Yamaha Motors
Clamp Band Holder68V-42647-10-00
Required: 1
.HOLDER, CLAMP BAND
Cross Ship
Leaves in 2-5 days
$17.70
$15.04
You save $2.66
More details
Hook
5
Yamaha Motors
Hook68V-42652-00-00
Required: 1
.HOOK
Cross Ship
Leaves in 2-5 days
$37.55
$31.92
You save $5.63
More details
BOLT
6
Yamaha Motors
BOLT97095-06012-00
Required: 2
.BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Hook
8
Yamaha Motors
Hook68V-42652-00-00
Required: 1
.HOOK
Cross Ship
Leaves in 2-5 days
$37.55
$31.92
You save $5.63
More details
BOLT
9
Yamaha Motors
BOLT97095-06012-00
Required: 2
.BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Clamp Band Holder
11
Yamaha Motors
Clamp Band Holder67F-42649-00-00
Required: 1
.HOLDER, CLAMP BAND
Cross Ship
Leaves in 2-5 days
$20.10
$17.09
You save $3.02
More details
DAMPER 2
14
Yamaha Motors
DAMPER 267F-42662-01-00
Required: 3
.DAMPER
Supersedes: 67F-42662-00-00
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Air Duct Molding
15
Yamaha Motors
Air Duct Molding68V-42613-10-00
Required: 1
.MOLDING, AIR DUCT
Cross Ship
Leaves in 2-5 days
$171.85
$146.07
You save $25.78
More details
Front Graphic
18
Yamaha Motors
Front Graphic68V-42677-30-00
Required: 1
.GRAPHIC, FRONT
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details
Side Graphic
20
Yamaha Motors
Side Graphic6D6-42675-00-00
Required: 1
.GRAPHIC, SIDE 1
Cross Ship
Leaves in 2-5 days
$71.70
$60.95
You save $10.76
More details
Side Graphic
22
Yamaha Motors
Side Graphic6D6-42676-00-00
Required: 1
.GRAPHIC, SIDE 2
Cross Ship
Leaves in 2-5 days
$71.70
$60.95
You save $10.76
More details
Caution Label
23
Yamaha Motors
Caution Label67F-13434-20-00
Required: 1
LABEL, CAUTION
Cross Ship
Leaves in 2-5 days
$11.90
$10.12
You save $1.79
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
