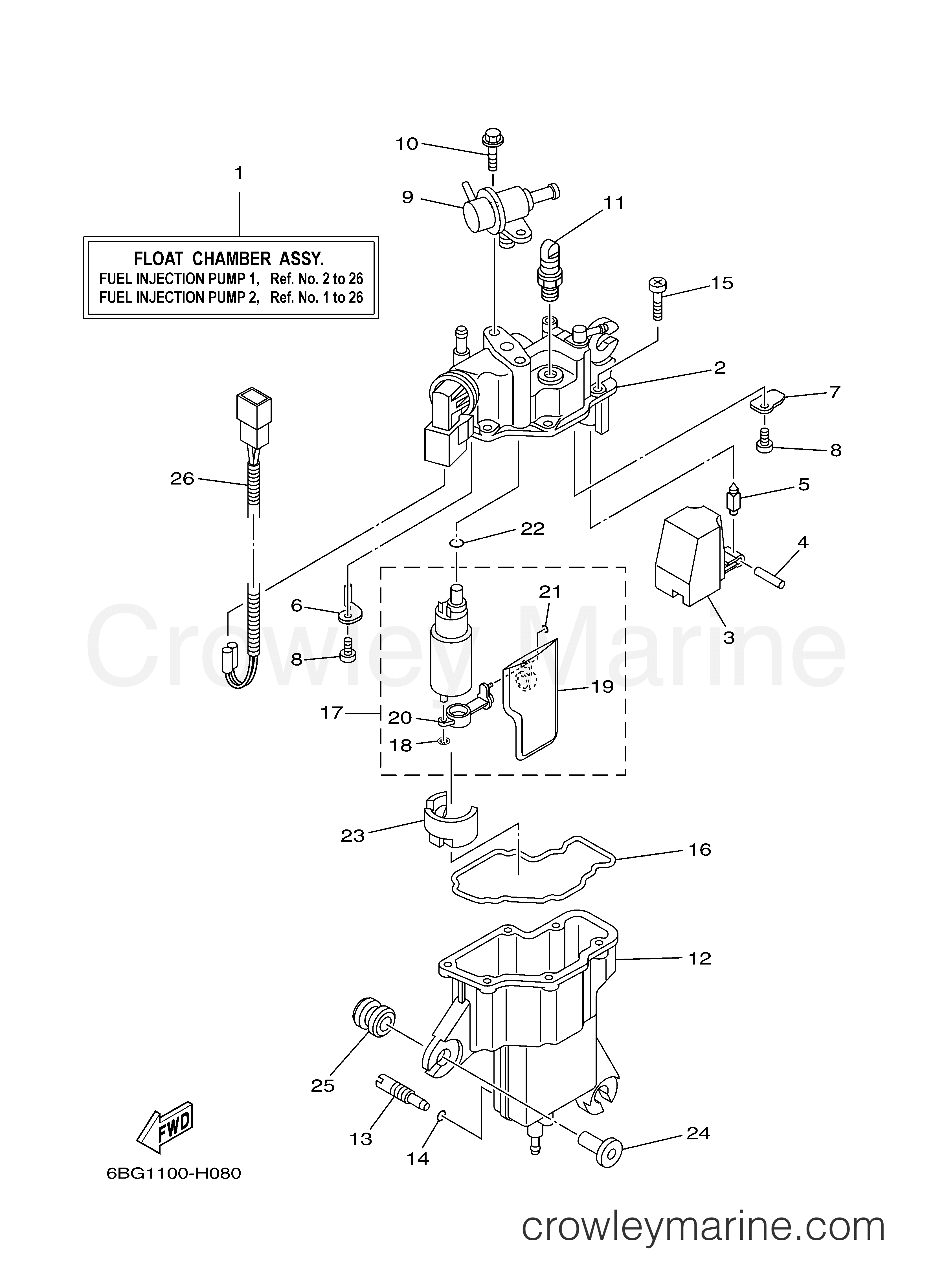

2012 Outboard 40hp - F40JEA FUEL INJECTION PUMP 1 diagram
1
Yamaha Motors
Float Chamber Assembly6BG-14180-24-00
Required: 1
FLOAT CHAMBER ASSY
Supersedes: 6BG-14180-20-00
$1032.07
You save $182.13
2
Yamaha Motors
Float Chamber Cover6BG-14182-10-00
Required: 1
COVER, FLOAT CHAMBER
$457.51
You save $80.74
$129.07
You save $22.78
$5.74
You save $1.01
5
Yamaha Motors
Needle Valve6C5-14546-10-00
Required: 1
VALVE, NEEDLE
In stock
Only 2 remaining
$33.45
You save $5.90
6
Yamaha Motors
Baffle Plate6BG-2441R-10-00
Required: 1
PLATE, BAFFLE 1
$29.92
You save $5.28
7
Yamaha Motors
Baffle Plate6BG-2441T-10-00
Required: 1
PLATE, BAFFLE 2
$25.84
You save $4.56
$4.29
You save $0.76
9
Yamaha Motors
Pressure Regulator6C5-13906-01-00
Required: 1
REGULATOR, PRESSURE
In stock
Only 5 remaining
$118.79
You save $20.96
$4.08
You save $0.72
$20.53
You save $3.62
$186.40
You save $32.90
In stock
Only 1 remaining
$4.93
You save $0.87
In stock
Only 1 remaining
$5.74
You save $1.01
$10.58
You save $1.87
16
Yamaha Motors
Float Chamber Gasket6BG-14984-00-00
Required: 1
GASKET, FLOAT CHAMBER
$35.40
You save $6.25
17
Yamaha Motors
Fuel Pump Assembly6BG-13910-03-00
Required: 1
FUEL PUMP ASSY
Supersedes: 6BG-13910-01-00
In stock
Only 4 remaining
$266.60
You save $47.05
In stock
Only 4 remaining
$6.12
You save $1.08
19
Yamaha Motors
Filter6BG-13915-01-00
Required: 1
.FILTER
Supersedes: 6BG-13915-00-00
$88.78
You save $15.67
$18.19
You save $3.21
$18.83
You save $3.32
$18.83
You save $3.32
23
DAMPER6BG-13593-01-00
Required: 1
DAMPER
Supersedes: 6BG-13593-00-00
In stock
Only 1 remaining
$91.42
You save $16.13
$8.20
You save $1.45
In stock
Only 2 remaining
$5.44
You save $0.96
26
Yamaha Motors
Wire Lead Extension6BG-82553-00-00
Required: 1
EXTENSION, WIRE LEAD
$24.78
You save $4.37
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
