All diagrams for this model

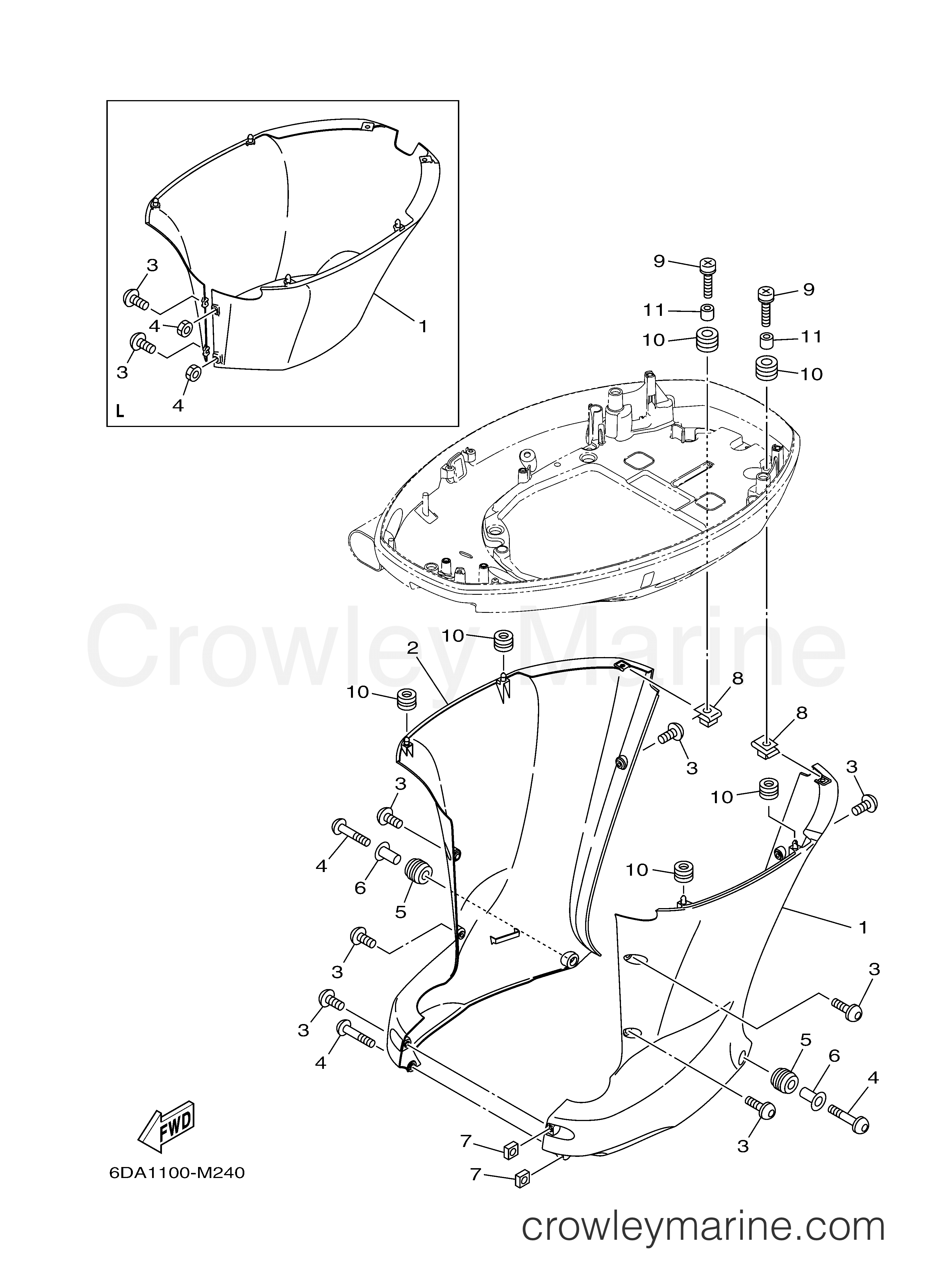

2012 Outboard 200hp - F200XB BOTTOM COWLING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F200XB - BOTTOM COWLING 2
Change View:
Aprol Complete 1 & N
1
Yamaha Motors
Aprol Complete 1 & N99999-04343-00
Required: 1
APRON COMPLETE 1
Supersedes: 6DA-42740-00-00
Cross Ship
Leaves in 2-5 days
$281.60
$239.36
You save $42.24
More details
Apron Complete
2
Yamaha Motors
Apron Complete99999-04344-00
Required: 1
APRON COMPLETE 2
Supersedes: 6DA-42770-00-00
Cross Ship
Leaves in 2-5 days
$281.60
$239.36
You save $42.24
More details
Grommet
5
Yamaha Motors
Grommet90480-16009-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Collar
6
Yamaha Motors
Collar90387-07028-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$41.10
$34.94
You save $6.16
More details
Spring Nut
8
Yamaha Motors
Spring Nut90183-061A6-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$19.75
$16.79
You save $2.96
More details
Grommet
10
Yamaha Motors
Grommet90480-13M24-00
Required: 6
GROMMET
Cross Ship
Leaves in 2-5 days
$9.05
$7.69
You save $1.36
More details
Collar
11
Yamaha Motors
Collar90387-06M43-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.85
$7.52
You save $1.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
