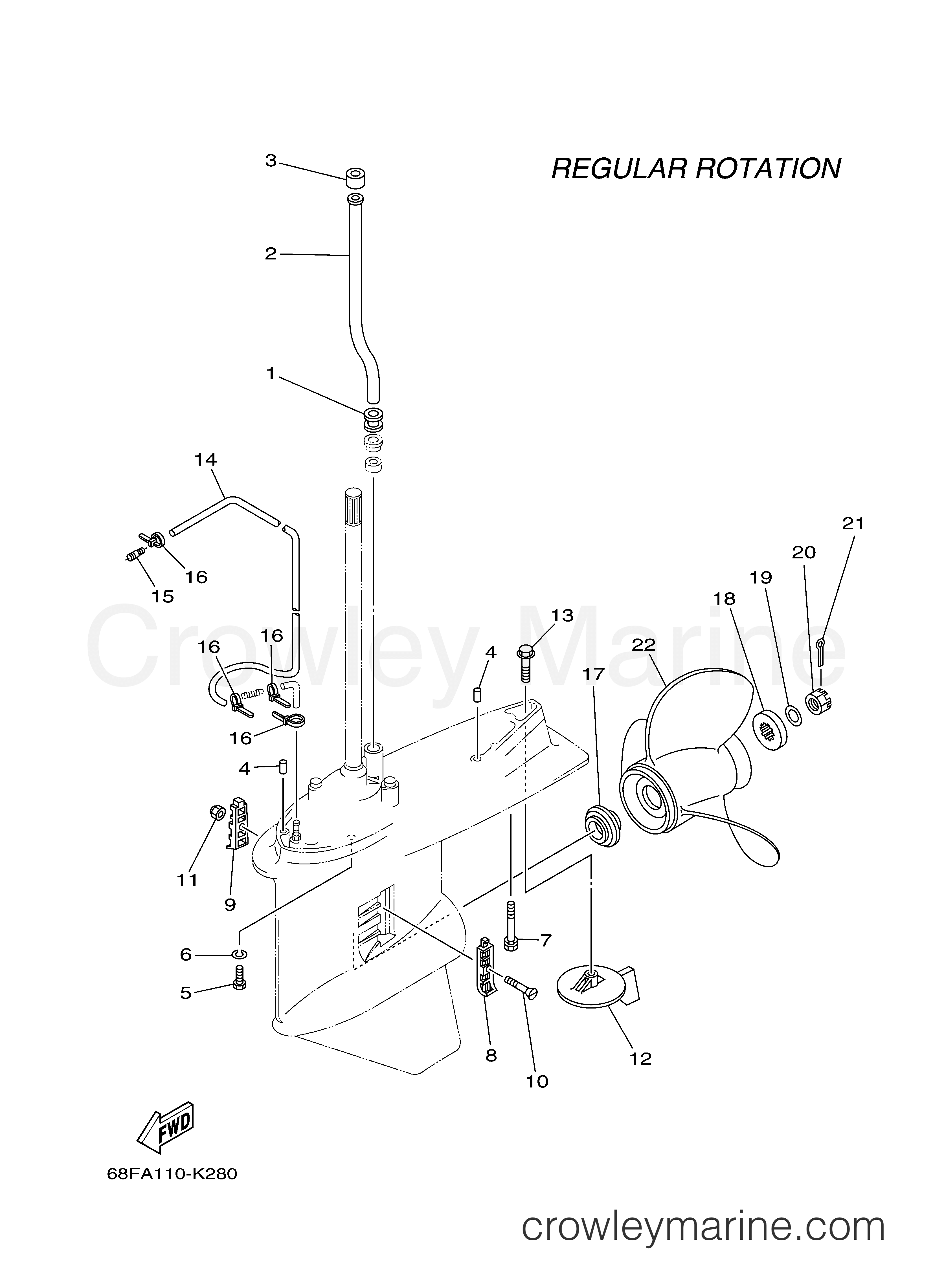

2011 Outboard 200hp - Z200TXR LOWER CASING DRIVE 2 diagram
1
Yamaha Motors
Water Seal Damper6E5-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 6E5-44366-00-00
In stock
5+ in stock
$1.12
You save $0.28
2
Yamaha Motors
Water Tube6E5-44361-20-00
Required: 1
TUBE, WATER 1
$50.36
You save $8.89
3
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.60
You save $0.40
In stock
Only 2 remaining
$8.32
You save $2.08
$21.64
You save $5.41
6
Yamaha Motors
Spring Washer92990-10100-00
Required: 6
WASHER
Supersedes: 92995-10100-00
In stock
5+ in stock
$3.84
You save $-0.59
7
Yamaha Motors
Bolt with Washer90119-10071-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-10M89-00
In stock
5+ in stock
$4.28
You save $1.07
8
Yamaha Motors
Water Inlet Cover6J9-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
5+ in stock
$11.80
You save $2.95
9
Yamaha Motors
Water Inlet Cover 26J9-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
5+ in stock
$11.80
You save $2.95
10
Yamaha Motors
Countersunk Screw90152-05M08-00
Required: 1
SCREW, COUNTERSUNK
In stock
5+ in stock
$3.80
You save $0.95
11
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.80
You save $0.45
In stock
5+ in stock
$24.68
You save $6.17
In stock
5+ in stock
$4.16
You save $1.04
14
Yamaha Motors
Hose (L1160)90445-07M21-00
Required: 1
HOSE (L1080)
Supersedes: 90445-07M33-00
$10.28
You save $2.57
In stock
Only 2 remaining
$9.12
You save $2.28
16
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
17
Yamaha Motors
Spacer63P-45987-00-00
Required: 1
SPACER 1
Supersedes: 6E5-45987-01-00
In stock
Only 3 remaining
$45.08
You save $11.27
In stock
5+ in stock
$38.20
You save $9.55
In stock
Only 1 remaining
$2.04
You save $0.51
In stock
Only 3 remaining
$16.16
You save $4.04
In stock
5+ in stock
$3.60
You save $0.90
22
Yamaha Motors
PROPELLER -13 3/4X19R RELIANCE68F-45974-20-00
Required: 1
PROPELLER (3X13-3/4"X19"-M)
Supersedes: 68F-45974-00-00
$666.95
You save $167.05
22
Yamaha Motors
Propeller 13 3/4X21R RELI68F-45976-20-00
Required: 1
PROPELLER (3X13-3/4"X21"-M)
Supersedes: 68F-45976-00-00
$708.90
You save $125.10
22
Yamaha Motors
PROPELLER - 14 1/4X18R RELIANCE68F-45978-20-00
Required: 1
PROPELLER (3X14-1/4"X18"-M)
Supersedes: 68F-45978-00-00
$708.90
You save $125.10
22
Yamaha Motors
Aluminum Prop - 3 Blade 15.25x15RH Aluminum6G5-45941-00-00
Required: 1
PROPELLER (3X15-1/4"X15"-M)
$230.95
You save $41.05
22
Yamaha Motors
Aluminum Prop - 3 Blade 13.75x21RH Aluminum6G5-45943-01-00
Required: 1
PROPELLER (3X13-3/4"X21"-M)
$231.20
You save $40.80
22
Yamaha Motors
Aluminum Prop - 3 Blade 14x19RH Aluminum6G5-45945-01-00
Required: 1
PROPELLER (3X14"X19"-M)
$231.20
You save $40.80
22
Yamaha Motors
Aluminum Prop - 3 Blade 14.5x17RH Aluminum6G5-45947-01-00
Required: 1
PROPELLER (3X14-1/2"X17"-M)
$230.95
You save $41.05
-50%
22
Yamaha Motors
Aluminum Prop - 3 Blade 13.5x23RH Aluminum6G5-45949-00-00
Required: 1
PROPELLER (3X13-1/2"X23"-M)
$136.00
You save $136.00
22
Yamaha Motors
Aluminum Prop - 3 Blade 14.63x16RH Aluminum6G5-45952-00-00
Required: 1
PROPELLER (3X14-5/8"X16"-M)
$231.20
You save $40.80
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.38x25RH Stainless Steel6G5-45930-00-00
Required: 1
PROPELLER (3X13-3/8"X25"-M)
$723.35
You save $127.65
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 15.75x13RH Stainless Steel6G5-45932-00-00
Required: 1
PROPELLER (3X15-3/4"X13"-M)
$723.35
You save $127.65
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 15.25x15RH Stainless Steel6G5-45970-02-00
Required: 1
PROPELLER (3X15-1/4"X15"-M)
$723.35
You save $127.65
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x21RH Stainless Steel6G5-45972-02-00
Required: 1
PROPELLER (3X13-3/4"X21"-M)
$723.35
You save $127.65
-50%
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x19RH Stainless Steel6G5-45974-03-00
Required: 1
PROPELLER (3X13-3/4"X19"-M2)
In stock
Only 1 remaining
$425.50
You save $425.50
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.38x23RH Stainless Steel6G5-45976-01-00
Required: 1
PROPELLER (3X13-3/8"X23"-M)
$723.35
You save $127.65
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x17RH Stainless Steel6G5-45978-03-00
Required: 1
PROPELLER (3X13-3/4"X17"-M2)
$723.35
You save $127.65
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 15.25x17RH Stainless Steel6R4-45978-A0-00
Required: 1
PROPELLER (3X15-1/4"X17"-M)
$633.42
You save $111.78
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.5x15RH Stainless Steel6R4-45976-A0-00
Required: 1
PROPELLER (3X14-1/2"X15"-M)
$633.42
You save $111.78
22
Yamaha Motors
PROPELLER - 14 1/4X17R RELIANCE68F-45972-20-00
Required: 1
PROPELLER (3X14-1/4"X17"-M)
Supersedes: 68F-45972-00-00
$666.95
You save $167.05
22
Yamaha Motors
PROPELLER - 14 1/2X15R RELIANCE68F-45970-20-00
Required: 1
PROPELLER (3X14-1/2"X15"-M)
Supersedes: 68F-45970-00-00
$708.90
You save $125.10
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.88x21RH Stainless Steel6R4-45972-A0-00
Required: 1
PROPELLER (3X14-7/8"X21"-M)
$633.42
You save $111.78
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.5x23RH Stainless Steel6R4-45974-A0-00
Required: 1
PROPELLER (3X14-1/2"X23"-M)
$725.90
You save $128.10
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 15.25x19RH Stainless Steel6R4-45970-A1-00
Required: 1
PROPELLER (3X15-1/4"X19"-M)
$633.42
You save $111.78
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
