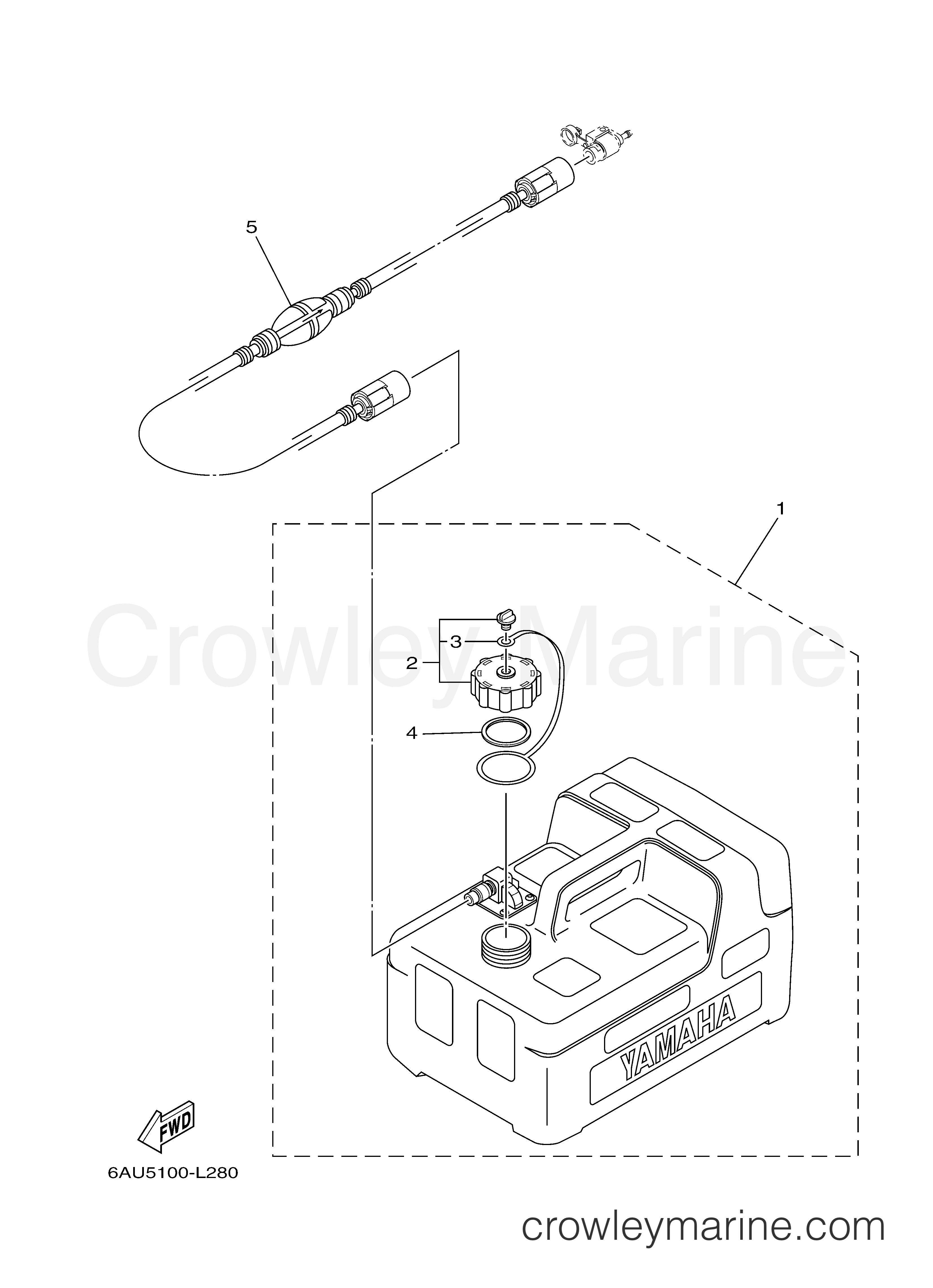

2011 Outboard 9.9hp - T9.9XPHA FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T9.9XPHA - FUEL TANK
Change View:
FUEL TANK ASSEMBLY (12 Liters)
1
Yamaha Motors
FUEL TANK ASSEMBLY (12 Liters)6YL-24201-21-00
Required: 1
FUEL TANK ASSY (12L)
Supersedes: 6YL-24201-20-00
Cross Ship
Leaves in 2-5 days
$149.00
$126.65
You save $22.35
More details
Ring
4
Yamaha Motors
Ring6YL-24629-00-00
Required: 1
.RING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
6YK-24306-64-00
5
Yamaha Motors
6YK-24306-64-006YK-24306-68-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 6YK-24306-70-00
Cross Ship
Leaves in 2-5 days
$115.15
$97.88
You save $17.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
