2011 Outboard 2hp - F2.5SMHA TOP COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

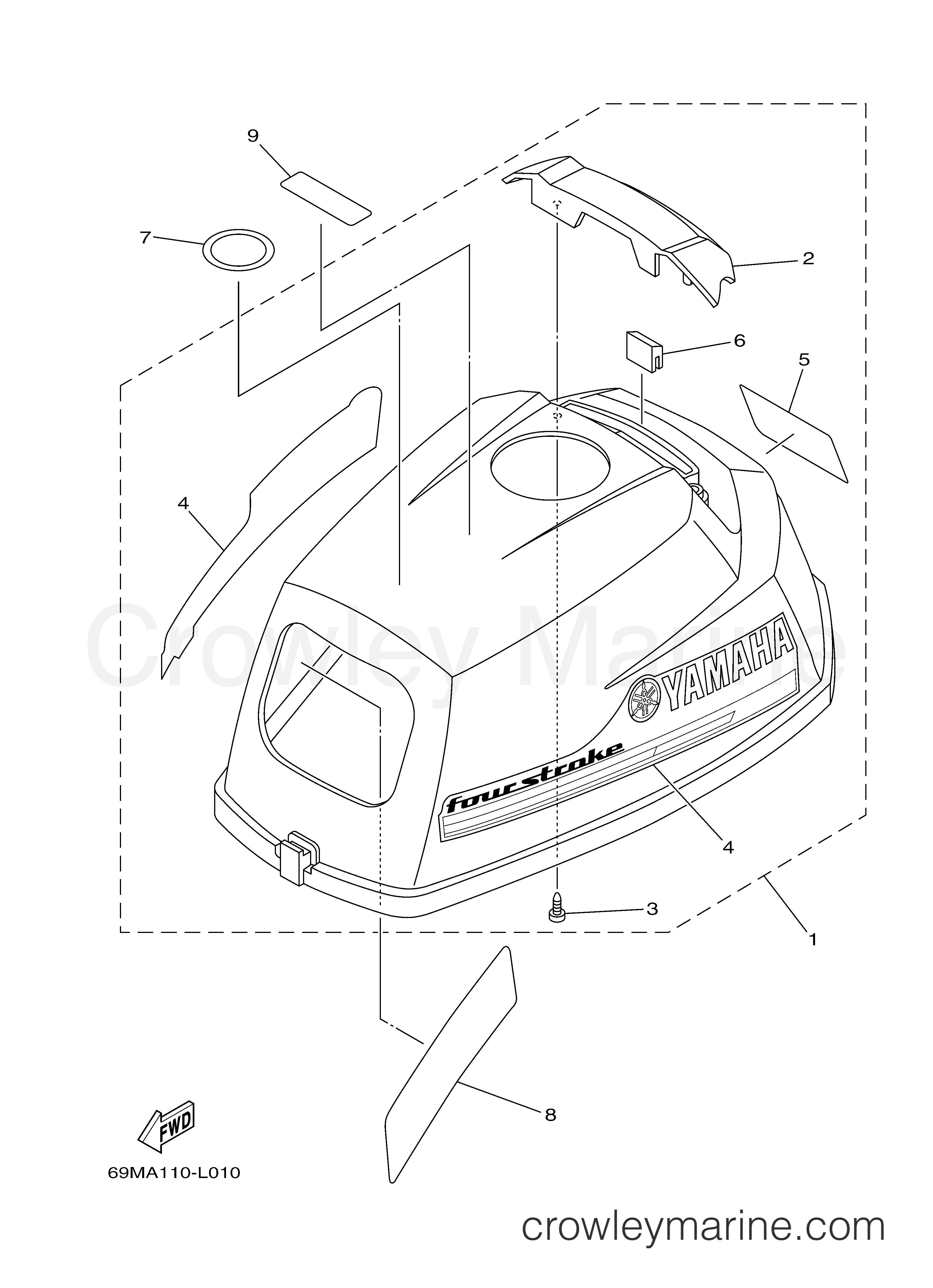

Yamaha Motors F2.5SMHA - TOP COWLING
Change View:
Top Cowling Assembly
1
Yamaha Motors
Top Cowling Assembly69M-G2610-30-00
Required: 1
TOP COWLING ASSY
Cross Ship
Leaves in 2-5 days
$330.85
$281.22
You save $49.63
More details
Air Duct Molding
2
Yamaha Motors
Air Duct Molding69M-G2613-00-00
Required: 1
.MOLDING, AIR DUCT
Cross Ship
Leaves in 2-5 days
$26.85
$22.82
You save $4.03
More details
Tapping Screw
3
Yamaha Motors
Tapping Screw97780-40012-00
Required: 2
.SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
Graphic Set
4
Yamaha Motors
Graphic Set6S7-W0070-00-00
Required: 1
.GRAPHIC SET
Cross Ship
Leaves in 2-5 days
$37.75
$32.09
You save $5.66
More details
Rear Graphic
5
Yamaha Motors
Rear Graphic69M-42678-30-00
Required: 1
.GRAPHIC, REAR
Cross Ship
Leaves in 2-5 days
$24.60
$20.91
You save $3.69
More details
Damper
6
Yamaha Motors
Damper69M-42662-00-00
Required: 1
.DAMPER
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Caution Label
7
Yamaha Motors
Caution Label60R-E3434-00-00
Required: 1
LABEL, CAUTION
Cross Ship
Leaves in 2-5 days
$14.90
$12.66
You save $2.24
More details
Instruction Label
8
Yamaha Motors
Instruction Label69M-E4427-40-00
Required: 1
LABEL, INSTRUCTION
Cross Ship
Leaves in 2-5 days
$13.00
$11.05
You save $1.95
More details
LABEL, WARNING (FUEL)
9
Yamaha Motors
LABEL, WARNING (FUEL)6EE-42698-40-00
Required: 1
LABEL, WARNING (FUEL)
Supersedes: 6S7-42698-40-00
Cross Ship
Leaves in 2-5 days
$16.75
$14.24
You save $2.51
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
