All diagrams for this model

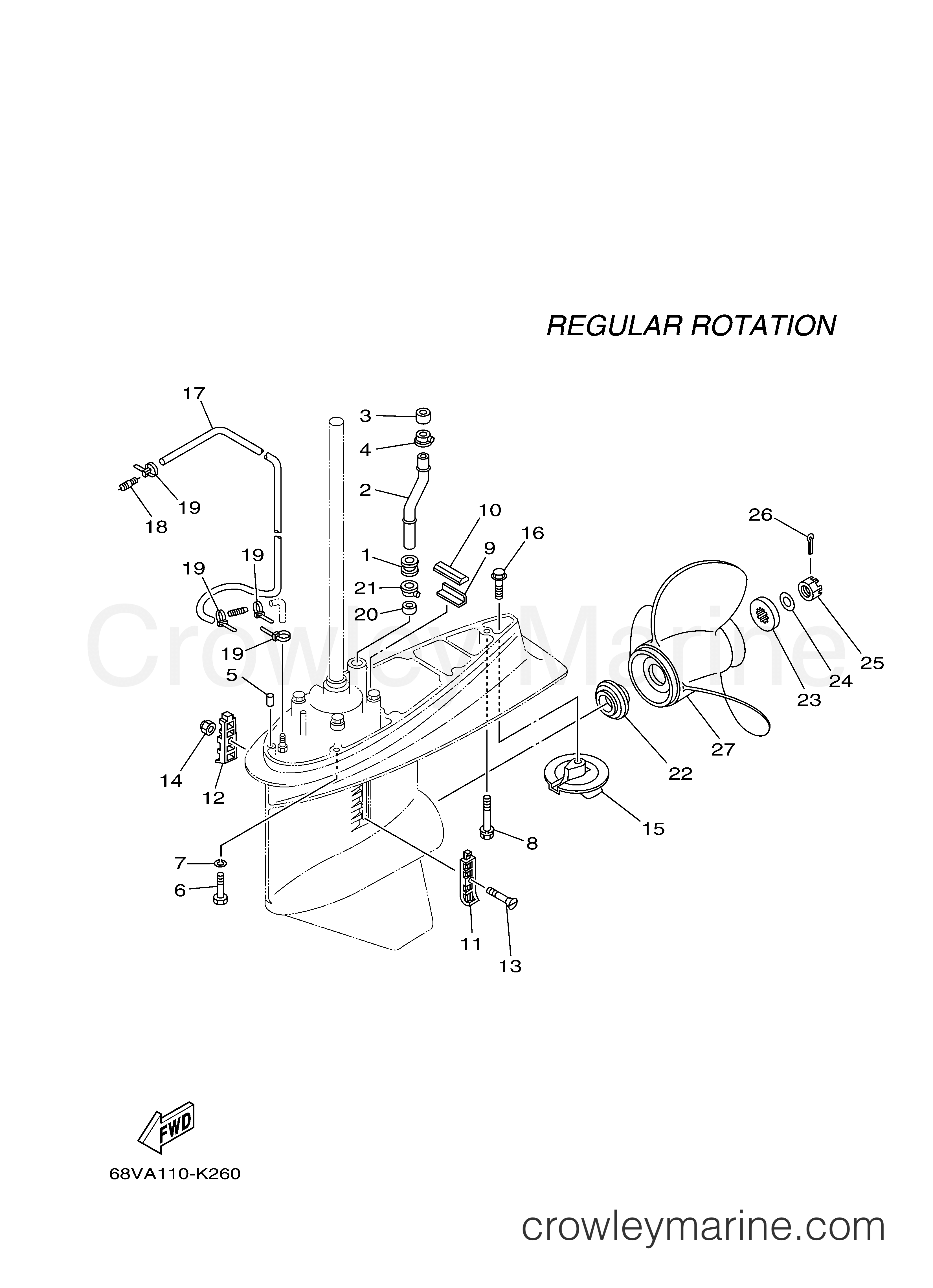

2011 Outboard 115hp - F115LA LOWER CASING DRIVE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F115LA - LOWER CASING DRIVE 2
Change View:
Water Tube
2
Yamaha Motors
Water Tube68V-44361-11-00
Required: 1
TUBE, WATER 1
Cross Ship
Leaves in 2-5 days
$71.45
$60.73
You save $10.72
More details
Bolt
6
Yamaha Motors
Bolt97075-10045-00
Required: 6
BOLT
Cross Ship
Leaves in 2-5 days
$27.05
$22.99
You save $4.06
More details
Countersunk Screw
13
Yamaha Motors
Countersunk Screw90152-05M07-00
Required: 1
SCREW, COUNTERSUNK
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Hose
17
Yamaha Motors
Hose90445-070G6-00
Required: 1
HOSE (L1550)
Supersedes: 90445-076K2-00
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
Propeller (3X13-1/2"X21"-K)
27
Yamaha Motors
Propeller (3X13-1/2"X21"-K)62A-45970-10-00
Required: 1
PROPELLER (3X13-1/2"X21"-K)
Cross Ship
Leaves in 2-5 days
$756.00
$642.60
You save $113.40
More details
Propeller (3X13-1/2"X19"-K)
27
Yamaha Motors
Propeller (3X13-1/2"X19"-K)62A-45974-10-00
Required: 1
PROPELLER (3X13-1/2"X19"-K)
Cross Ship
Leaves in 2-5 days
$756.00
$642.60
You save $113.40
More details
Propeller (3X13-1/2"X17"-K)
27
Yamaha Motors
Propeller (3X13-1/2"X17"-K)62A-45976-00-00
Required: 1
PROPELLER (3X13-1/2"X17"-K)
Cross Ship
Leaves in 2-5 days
$699.10
$594.24
You save $104.87
More details
Aluminum Prop - 3 Blade 13.5x15RH Aluminum
27
Yamaha Motors
Aluminum Prop - 3 Blade 13.5x15RH Aluminum6E5-45947-00-00
Required: 1
PROPELLER (3X13-1/2"X15"-K)
Cross Ship
Leaves in 2-5 days
$220.00
$187.00
You save $33.00
More details
Aluminum Prop - 3 Blade 13.63x13RH Aluminum
27
Yamaha Motors
Aluminum Prop - 3 Blade 13.63x13RH Aluminum6E5-45949-00-00
Required: 1
PROPELLER (3X13-5/8"X13"-K)
Cross Ship
Leaves in 2-5 days
$220.00
$187.00
You save $33.00
More details
Aluminum Prop - 3 Blade 13x23RH Aluminum
27
Yamaha Motors
Aluminum Prop - 3 Blade 13x23RH Aluminum6E5-45952-00-00
Required: 1
PROPELLER (3X13"X23"-K)
Cross Ship
Leaves in 2-5 days
$220.00
$187.00
You save $33.00
More details
Aluminum Prop - 3 Blade 13x25RH Aluminum
27
Yamaha Motors
Aluminum Prop - 3 Blade 13x25RH Aluminum6E5-45956-00-00
Required: 1
PROPELLER (3X13"X25"-K)
Cross Ship
Leaves in 2-5 days
$220.00
$187.00
You save $33.00
More details
Painted Stainless Steel Prop - 3 Blade 13x19RH Stainless Steel
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x19RH Stainless Steel688-45970-03-00
Required: 1
PROPELLER (3X13"X19"-K)
Cross Ship
Leaves in 2-5 days
$839.00
$713.15
You save $125.85
More details
Painted Stainless Steel Prop - 3 Blade 13x21RH Stainless Steel
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x21RH Stainless Steel688-45972-02-00
Required: 1
PROPELLER (3X13"X21"-K)
Cross Ship
Leaves in 2-5 days
$839.00
$713.15
You save $125.85
More details
Painted Stainless Steel Prop - 3 Blade 13x23RH Stainless Steel
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x23RH Stainless Steel688-45974-02-00
Required: 1
PROPELLER (3X13"X23"-K)
Cross Ship
Leaves in 2-5 days
$839.00
$713.15
You save $125.85
More details
Painted Stainless Steel Prop - 3 Blade 13x25RH Stainless Steel
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x25RH Stainless Steel688-45976-01-00
Required: 1
PROPELLER (3X13"X25"-K)
Cross Ship
Leaves in 2-5 days
$996.00
$846.60
You save $149.40
More details
Painted Stainless Steel Prop - 3 Blade 13.5x16RH Stainless Steel
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.5x16RH Stainless Steel688-45978-60-00
Required: 1
PROPELLER (3X13-1/2"X16"-K)
Cross Ship
Leaves in 2-5 days
$839.00
$713.15
You save $125.85
More details
Painted Stainless Steel Prop - 3 Blade 13.5x14RH Stainless Steel
27
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.5x14RH Stainless Steel688-45932-60-00
Required: 1
PROPELLER (3X13-1/2"X14"-K)
Cross Ship
Leaves in 2-5 days
$839.00
$713.15
You save $125.85
More details
Talon Prop - 3 Blade 13.5x14RH Aluminum
27
Yamaha Motors
Talon Prop - 3 Blade 13.5x14RH Aluminum6EK-45947-00-00
Required: 1
PROPELLER (3X13-1/2"X17"-K)
Supersedes: 68V-45941-00-00
Cross Ship
Leaves in 2-5 days
$239.00
$203.15
You save $35.85
More details
PRO Prop - 3 Blade 13.5x23RH Stainless Steel
27
Yamaha Motors
PRO Prop - 3 Blade 13.5x23RH Stainless Steel62A-45972-10-00
Required: 1
PROPELLER (3X13-1/2"X23"-K)
Cross Ship
Leaves in 2-5 days
$756.00
$642.60
You save $113.40
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
