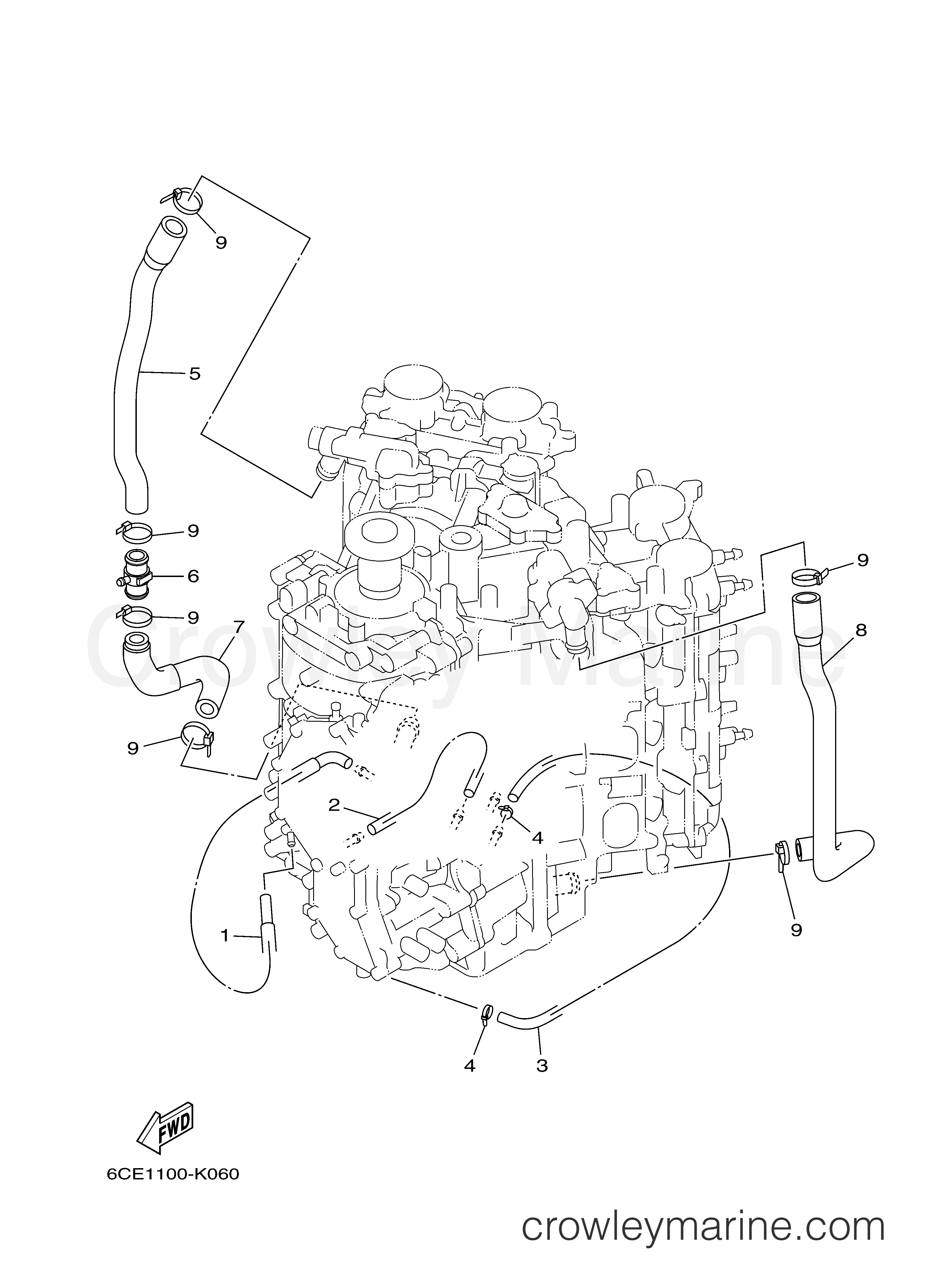

2010 Outboard 250hp - LF250XCA CYLINDER CRANKCASE 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors LF250XCA - CYLINDER CRANKCASE 4

Change View:

Yamaha Motors

Hose6CE-12576-00-00

Required: 1

HOSE 1

~~$21.15~~

$17.98

You save $3.17

HOSE (L300)

Supersedes: 90445-09104-00

In stock

5+ in stock

~~$12.49~~

$10.62

You save $1.87

More details

Required: 1

HOSE (L1100)

Price unavailable

Yamaha Motors

Clamp90465-10098-00

Required: 2

CLAMP

Supersedes: 90465-11M10-00

In stock

5+ in stock

~~$2.70~~

$2.29

You save $0.41

More details

Yamaha Motors

HOSE, 46ML-1244G-00-00

Required: 1

HOSE, 4

Supersedes: 6CE-1244G-00-00

~~$74.05~~

$62.94

You save $11.11

More details

Yamaha Motors

Joint Pipe6CE-24378-00-00

Required: 1

PIPE, JOINT 3

~~$13.00~~

$11.05

You save $1.95

HOSE 5

In stock

Only 1 remaining

~~$60.05~~

$51.04

You save $9.01

HOSE 2

~~$96.30~~

$81.86

You save $14.45

CLAMP

~~$7.10~~

$6.03

You save $1.07

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2010 Outboard 250hp - LF250XCA CYLINDER CRANKCASE 4 diagram
