All diagrams for this model

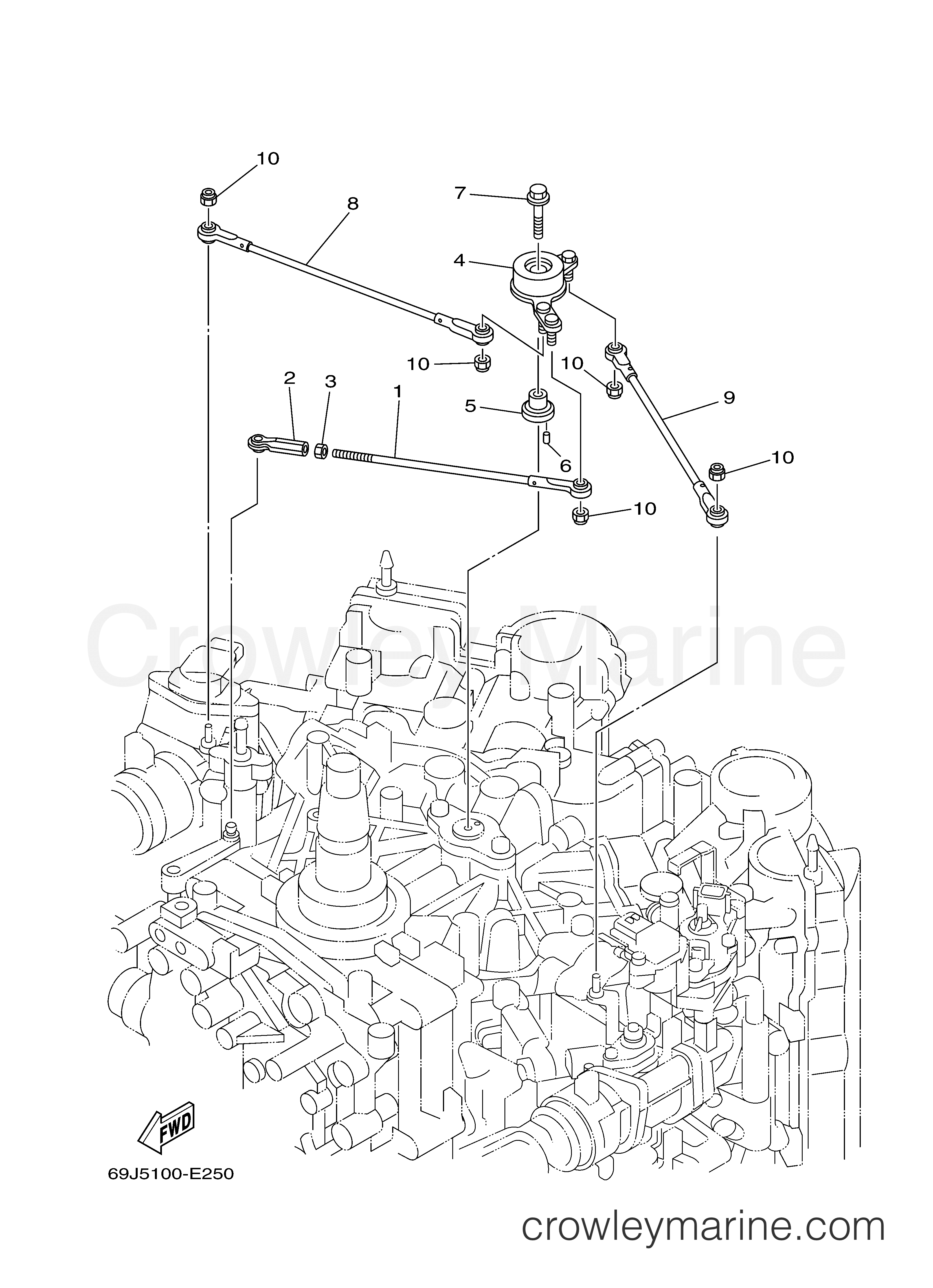

2010 Outboard 200hp - LF200TXR CONTROL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LF200TXR - CONTROL 3
Change View:
Link Rod
1
Yamaha Motors
Link Rod69J-41241-01-00
Required: 1
ROD, LINK
Cross Ship
Leaves in 2-5 days
$72.35
$61.50
You save $10.85
More details
Accel Arm Assembly
4
Yamaha Motors
Accel Arm Assembly69J-41210-00-00
Required: 1
ACCEL. ARM ASSY
Cross Ship
Leaves in 2-5 days
$146.25
$124.31
You save $21.94
More details
Link Connecting Shaft
5
Yamaha Motors
Link Connecting Shaft69J-41635-00-00
Required: 1
SHAFT, LINK CONNECTING
Cross Ship
Leaves in 2-5 days
$47.70
$40.55
You save $7.16
More details
Spring Pin
6
Yamaha Motors
Spring Pin91690-30008-00
Required: 1
.PIN, SPRING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06294-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M65-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Accel. Link
8
Yamaha Motors
Accel. Link69J-41211-01-00
Required: 1
LINK, ACCEL.
Cross Ship
Leaves in 2-5 days
$130.70
$111.10
You save $19.61
More details
Magneto Control Rod
9
Yamaha Motors
Magneto Control Rod69J-41636-01-00
Required: 1
ROD, MAGNETO CONTROL
Cross Ship
Leaves in 2-5 days
$130.15
$110.63
You save $19.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
