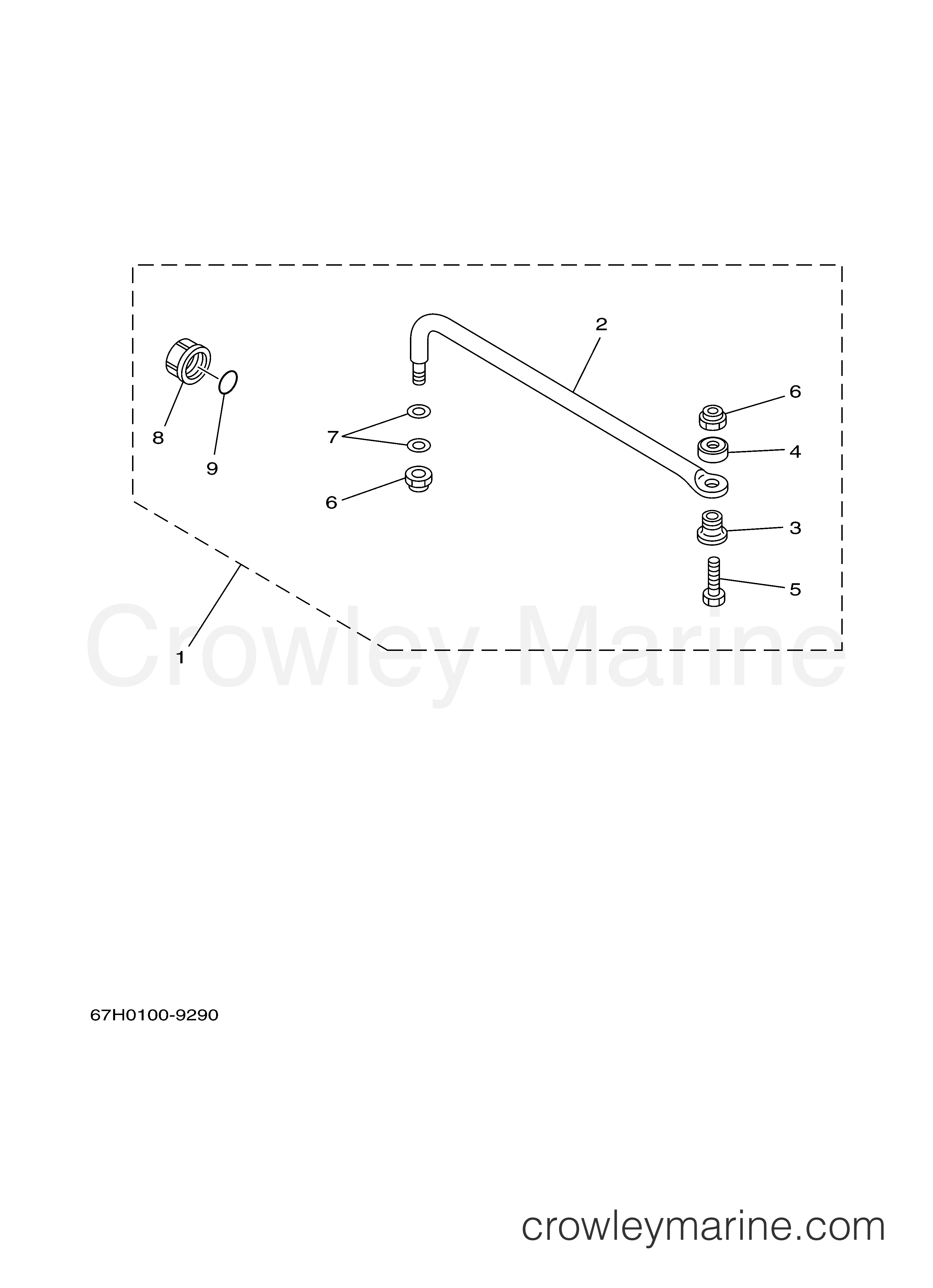

2009 Outboard 200hp - Z200TXR STEERING GUIDE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Steering Guide Attachment Kit6E5-61350-02-00

Required: 1

STEERING GUIDE ATTACHMENT KIT

~~$159.00~~

$135.15

You save $23.85

More details

Yamaha Motors

Steering Link Rod6E5-61351-01-00

Required: 1

.ROD, STEERING LINK

~~$173.90~~

$147.81

You save $26.09

.COLLAR

~~$14.90~~

$12.66

You save $2.24

.SPACER

In stock

Only 1 remaining

~~$15.65~~

$13.30

You save $2.35

.BOLT

~~$28.85~~

$24.52

You save $4.33

More details

Yamaha Motors

Self-Locking Nut90185-09M01-00

Required: 2

.NUT, SELF-LOCKING

In stock

Only 5 remaining

~~$10.40~~

$8.84

You save $1.56

More details

Yamaha Motors

Plate Washer90201-10M20-00

Required: 2

.WASHER, PLATE

In stock

Only 2 remaining

~~$6.75~~

$5.74

You save $1.01

More details

Yamaha Motors

Clamp Bracket Cap6E5-43145-01-00

Required: 1

.CAP, CLAMP BRACKET

In stock

5+ in stock

~~$7.40~~

$6.29

You save $1.11

.O-RING

In stock

Only 5 remaining

~~$3.45~~

$2.93

You save $0.52

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
