All diagrams for this model

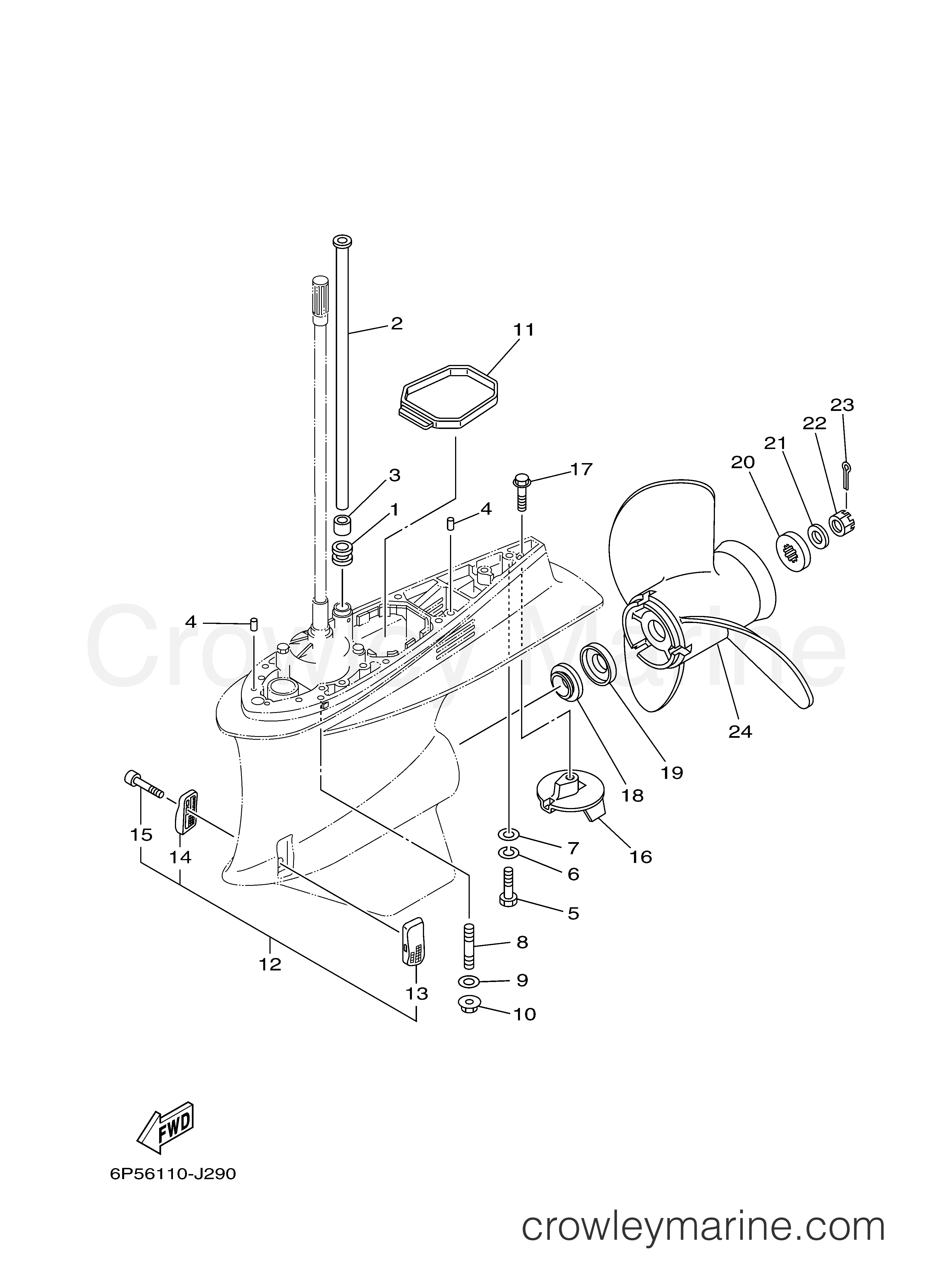

2009 Outboard 225hp - VZ225HTLR LOWER CASING DRIVE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VZ225HTLR - LOWER CASING DRIVE 2
Change View:
Water Tube
2
Yamaha Motors
Water Tube66K-44361-00-00
Required: 1
TUBE, WATER
Cross Ship
Leaves in 2-5 days
$39.65
$33.70
You save $5.95
More details
Stud Bolt
8
Yamaha Motors
Stud Bolt90116-10021-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$12.75
$10.84
You save $1.91
More details
Flange Nut
10
Yamaha Motors
Flange Nut95780-10300-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$13.00
$11.05
You save $1.95
More details
Seal Damper
11
Yamaha Motors
Seal Damper60X-45375-00-00
Required: 1
DAMPER, SEAL
Cross Ship
Leaves in 2-5 days
$91.65
$77.90
You save $13.75
More details
Water Inlet Cover
13
Yamaha Motors
Water Inlet Cover60X-45214-02-00
Required: 1
.COVER, WATER INLET 1
Cross Ship
Leaves in 2-5 days
$9.10
$7.73
You save $1.37
More details
Water Inlet Cover
14
Yamaha Motors
Water Inlet Cover60X-45215-02-00
Required: 1
.COVER, WATER INLET 2
Cross Ship
Leaves in 2-5 days
$9.10
$7.73
You save $1.37
More details
Hexagon Socket Head Bolt
15
Yamaha Motors
Hexagon Socket Head Bolt90110-05025-00
Required: 1
.BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
Spacer
18
Yamaha Motors
Spacer60X-45987-10-00
Required: 1
SPACER 1
Cross Ship
Leaves in 2-5 days
$111.40
$94.69
You save $16.71
More details
Spacer
19
Yamaha Motors
Spacer60X-45995-00-00
Required: 1
SPACER 3
Cross Ship
Leaves in 2-5 days
$115.20
$97.92
You save $17.28
More details
Propeller (3X14-3/4"X29"-T1)
24
Yamaha Motors
Propeller (3X14-3/4"X29"-T1)69L-45976-20-00
Required: 1
PROPELLER (3X14-3/4"X29"-T1)
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details
V MAX Vented Prop - 3 Blade 14.5x23RH Stainless Steel
24
Yamaha Motors
V MAX Vented Prop - 3 Blade 14.5x23RH Stainless Steel69L-45974-20-00
Required: 1
PROPELLER (3X14-1/2"X23"-T1)
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details
Propeller (3X15-1/8"X25"-T1)
24
Yamaha Motors
Propeller (3X15-1/8"X25"-T1)69L-45972-20-00
Required: 1
PROPELLER (3X15-1/8"X25"-T1)
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details
V MAX Vented Prop - 3 Blade 15.13x27RH Stainless Steel
24
Yamaha Motors
V MAX Vented Prop - 3 Blade 15.13x27RH Stainless Steel69L-45970-20-00
Required: 1
PROPELLER (3X15-1/8"X27"-T1)
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
