2009 Outboard 250hp - LF250TUR FUEL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

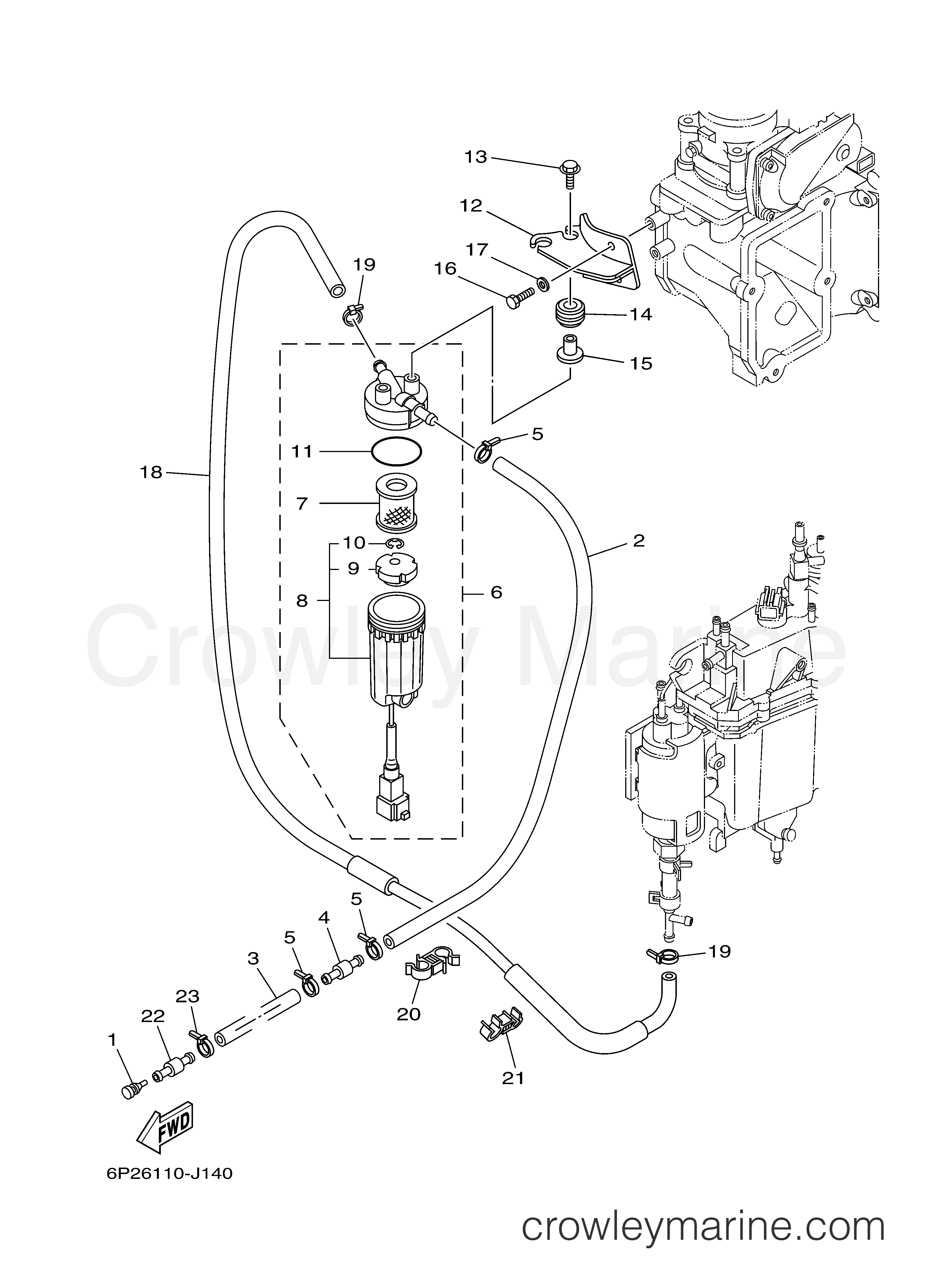

Yamaha Motors LF250TUR - FUEL 1
Change View:
DAMPER 2
1
Yamaha Motors
DAMPER 2689-85547-01-00
Required: 1
DAMPER
Supersedes: 689-85547-00-00
Cross Ship
Leaves in 2-5 days
$5.65
$4.80
You save $0.85
More details
Pipe
2
Yamaha Motors
Pipe6P2-24314-00-00
Required: 1
PIPE 4
Cross Ship
Leaves in 2-5 days
$20.25
$17.21
You save $3.04
More details
Hose (L2000)
3
Yamaha Motors
Hose (L2000)90445-13511-00
Required: 1
HOSE (L2000)
Cross Ship
Leaves in 2-5 days
$20.10
$17.09
You save $3.02
More details
Obsolete Yamaha Part
8
Yamaha Motors
Obsolete Yamaha Part6P3-WS24B-01-00
Required: 1
.CUP, FILTER
Supersedes: 6P3-24562-01-00
Cross Ship
Leaves in 2-5 days
$149.00
$126.65
You save $22.35
More details
Water Level Float
9
Yamaha Motors
Water Level Float6P3-24469-00-00
Required: 1
..FLOAT, WATER LEVEL
Cross Ship
Leaves in 2-5 days
$10.95
$9.31
You save $1.64
More details
Clip
10
Yamaha Motors
Clip6P3-24519-00-00
Required: 1
..CLIP
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
Filter Bracket
12
Yamaha Motors
Filter Bracket6P2-24566-11-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$46.05
$39.14
You save $6.91
More details
BOLT, WITH WASHER
13
Yamaha Motors
BOLT, WITH WASHER90119-06288-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M17-00
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
Grommet
14
Yamaha Motors
Grommet90480-14018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Pipe
18
Yamaha Motors
Pipe6P2-24313-20-00
Required: 1
PIPE 3
Supersedes: 6P2-24313-10-00
Cross Ship
Leaves in 2-5 days
$57.10
$48.53
You save $8.57
More details
Clamp
20
Yamaha Motors
Clamp90464-12009-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$4.30
$3.65
You save $0.65
More details
Clamp
21
Yamaha Motors
Clamp90464-12010-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$5.35
$4.55
You save $0.80
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
