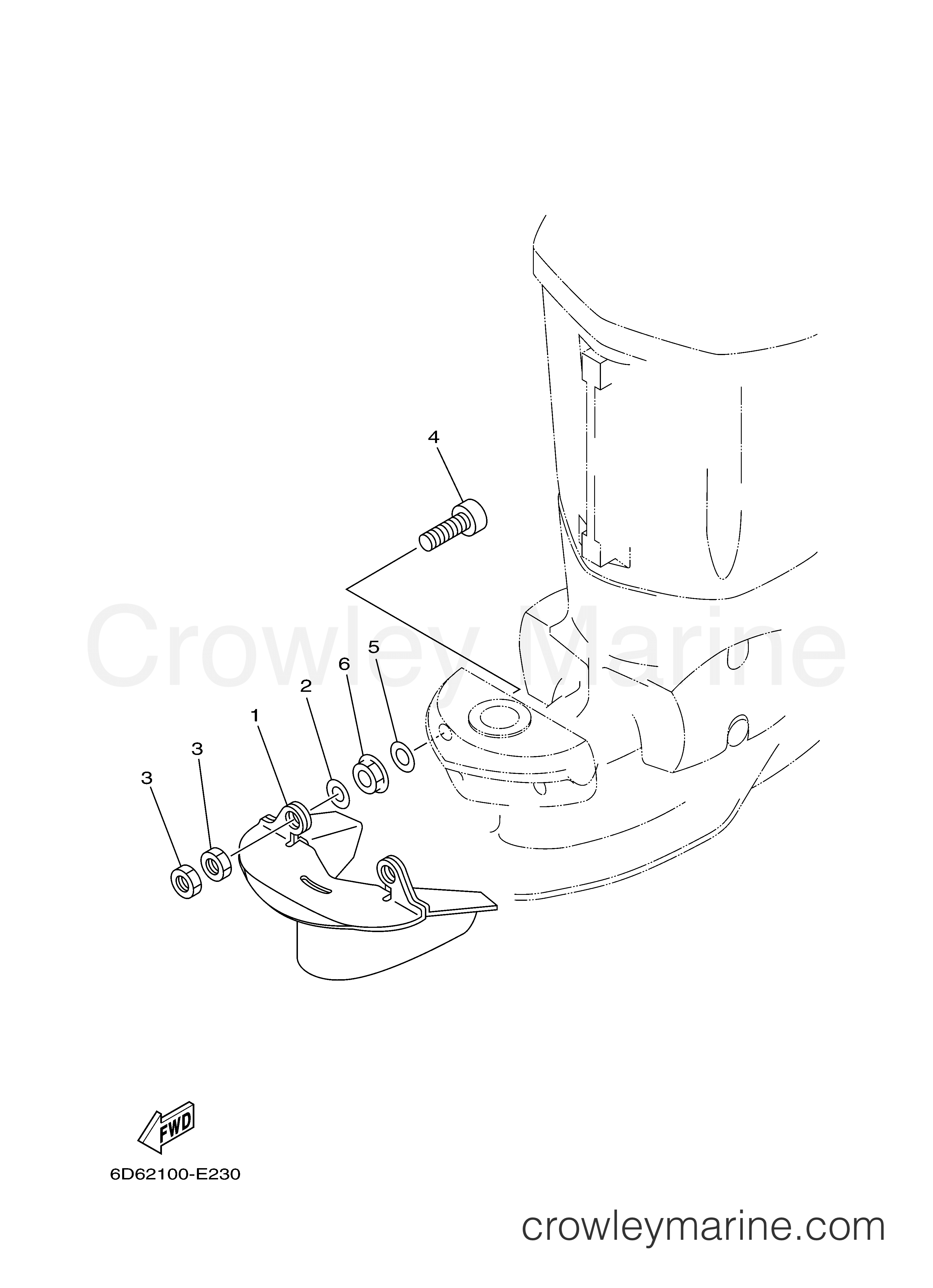

2009 Outboard 90hp - F90TXR OPTIONAL PARTS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Splash Plate67F-45180-00-4D

Required: 1

PLATE, SPLASH

~~$267.00~~

$226.95

You save $40.05

More details

Yamaha Motors

Plate Washer90201-12M01-00

Required: 2

WASHER, PLATE

~~$7.30~~

$6.21

You save $1.10

NUT

~~$9.10~~

$7.73

You save $1.37

More details

Yamaha Motors

Hexagon Socket Head Bolt90110-12M00-00

Required: 2

BOLT, HEXAGON SOCKET HEAD

~~$13.35~~

$11.35

You save $2.00

More details

Yamaha Motors

Plate Washer90201-12M16-00

Required: 2

WASHER, PLATE

In stock

Only 2 remaining

~~$4.60~~

$3.91

You save $0.69

More details

Yamaha Motors

Flange Nut95780-12300-00

Required: 2

NUT, FLANGE

~~$21.40~~

$18.19

You save $3.21

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
