All diagrams for this model

2009 Outboard 8hp - F8CMLH OPTIONAL PARTS 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

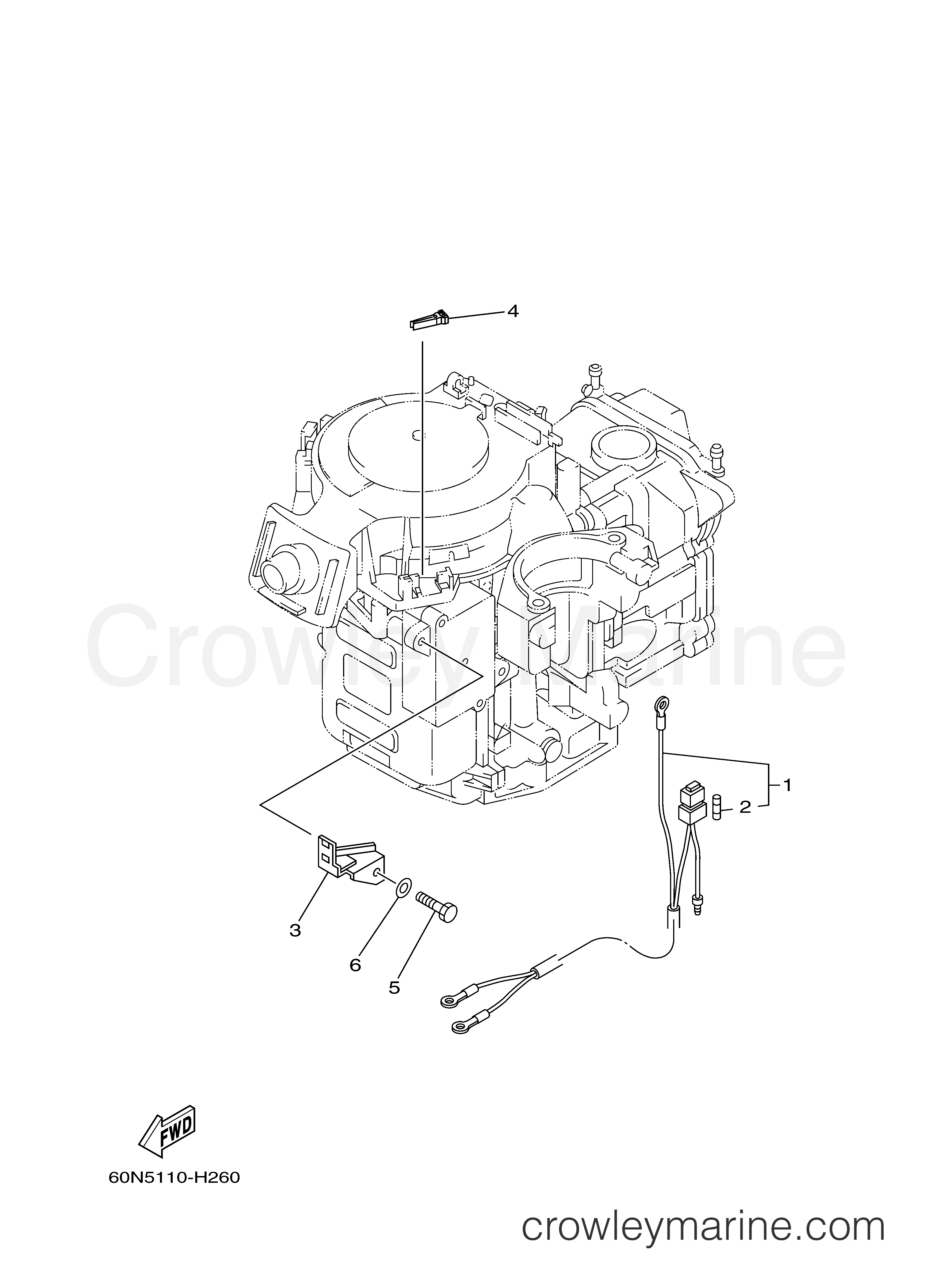

Yamaha Motors F8CMLH - OPTIONAL PARTS 2
Change View:
Lead Wire
1
Yamaha Motors
Lead Wire68T-81949-00-00
Required: 1
WIRE, LEAD
Cross Ship
Leaves in 2-5 days
$121.20
$103.02
You save $18.18
More details
Fuse (10A)
2
Yamaha Motors
Fuse (10A)67F-82151-40-00
Required: 2
.FUSE (10A-BL)
Supersedes: 66V-82151-00-00
Cross Ship
Leaves in 2-5 days
$7.10
$6.03
You save $1.07
More details
Fuse Box Stay
3
Yamaha Motors
Fuse Box Stay68T-82171-01-00
Required: 1
STAY, FUSE BOX
Cross Ship
Leaves in 2-5 days
$65.05
$55.29
You save $9.76
More details
Fuse Puller
4
Yamaha Motors
Fuse Puller67F-2812A-00-00
Required: 1
.PULLER, FUSE
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
BOLT
5
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
