2009 Outboard 6hp - F6SMHA BOTTOM COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

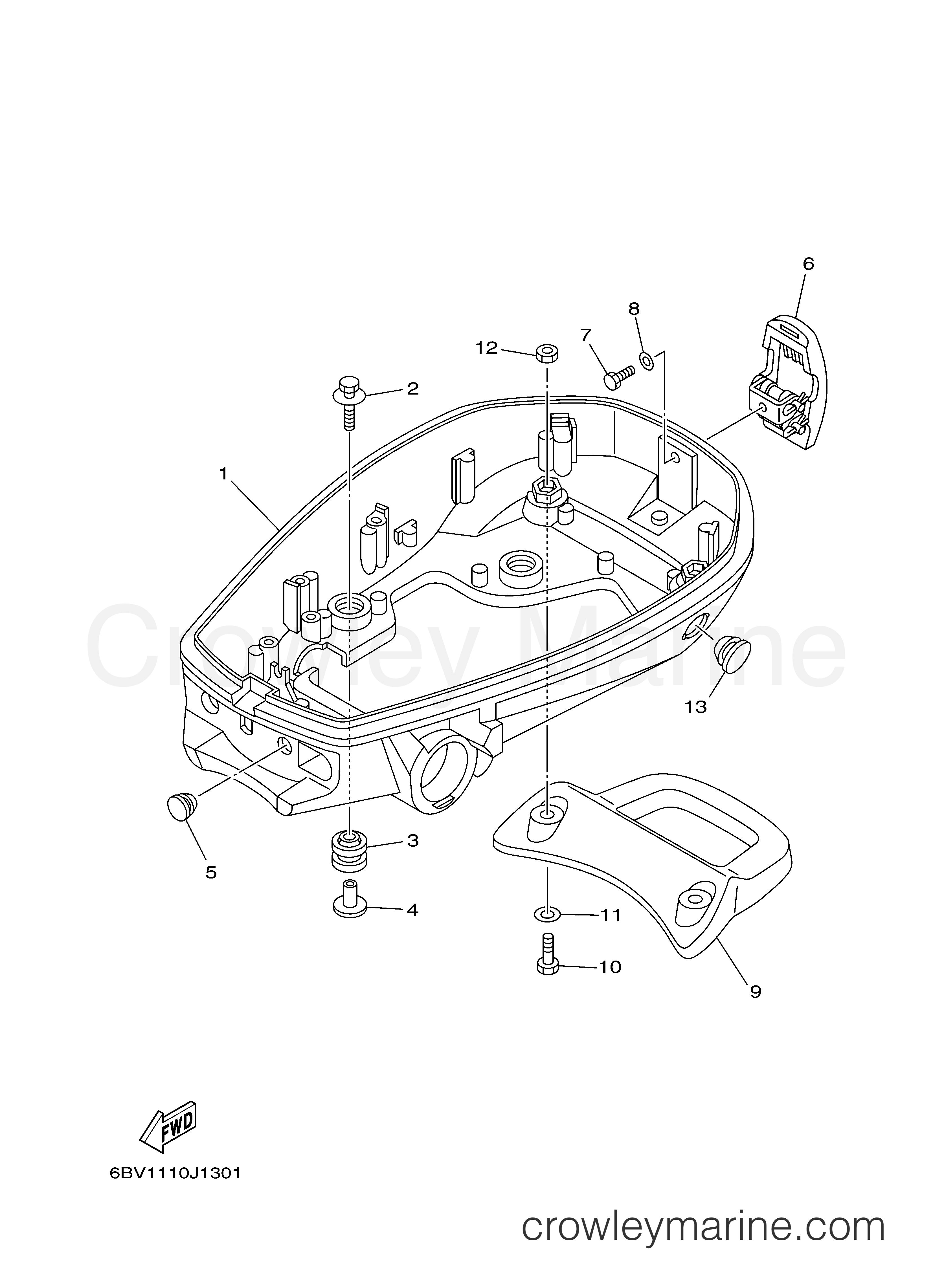

Yamaha Motors F6SMHA - BOTTOM COWLING
Change View:
Bottom Cowling 1
1
Yamaha Motors
Bottom Cowling 16EE-G2711-00-8D
Required: 1
COWLING, BOTTOM 1
Supersedes: 6BX-G2711-00-4D
Cross Ship
Leaves in 2-5 days
$215.85
$183.47
You save $32.38
More details
Grommet
3
Yamaha Motors
Grommet90480-21M82-00
Required: 4
GROMMET
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Collar
4
Yamaha Motors
Collar90387-06176-00
Required: 4
COLLAR
Cross Ship
Leaves in 2-5 days
$5.95
$5.06
You save $0.89
More details
BOLT
7
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
-50%
Carrying Handle
9
Yamaha Motors
Carrying Handle6EE-G2731-00-00
Required: 1
CARRYING HANDLE
Supersedes: 6BX-G2731-00-00
Cross Ship
Leaves in 2-5 days
$95.20
$47.60
You save $47.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
