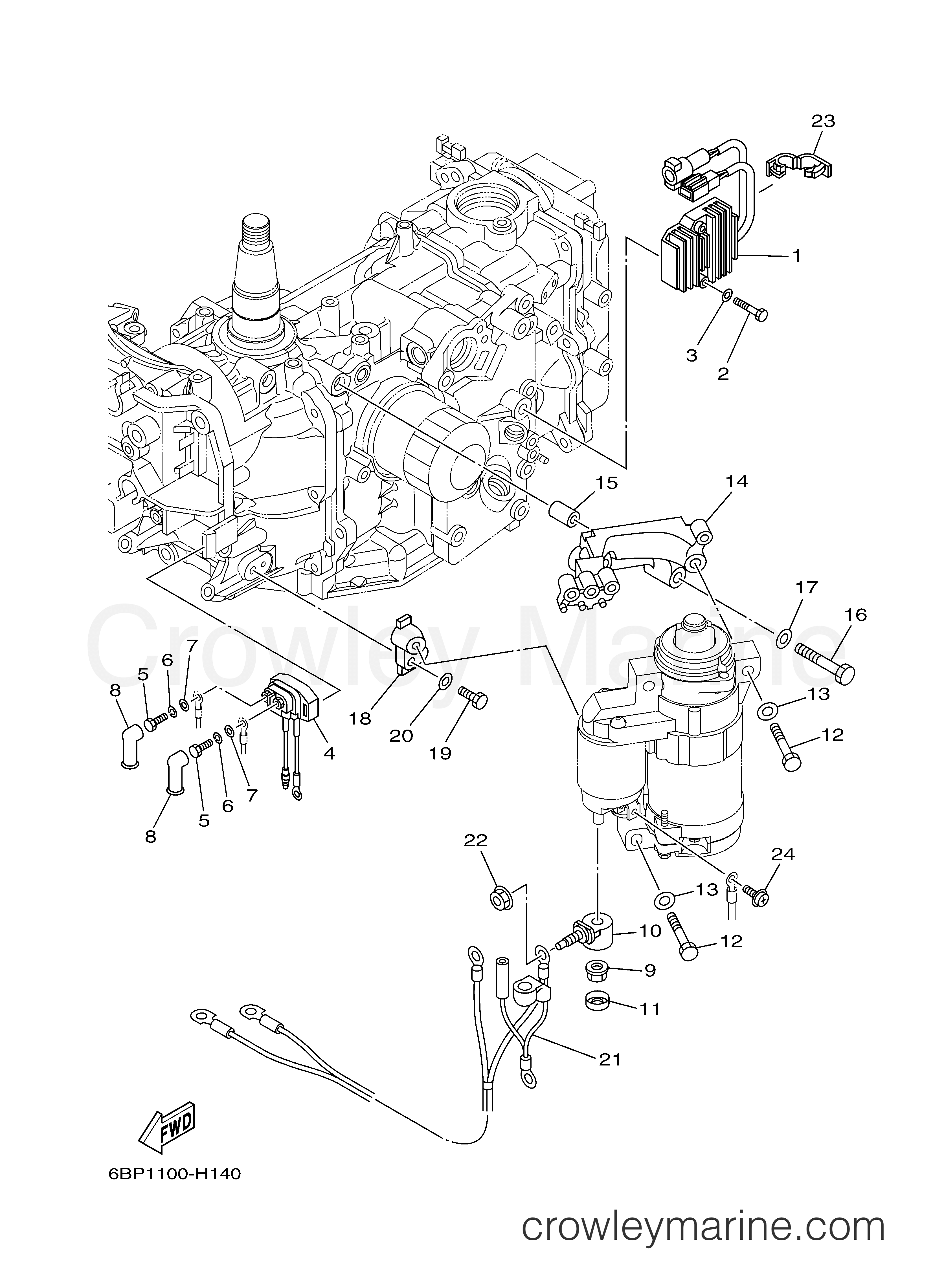

2009 Outboard 25hp - F25LMHA ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F25LMHA - ELECTRICAL 3
Change View:
Starting Motor Bracket
14
Yamaha Motors
Starting Motor Bracket6BL-81822-00-94
Required: 1
BRACKET, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$93.75
$79.69
You save $14.06
More details
Dowel Pin
15
Yamaha Motors
Dowel Pin99590-10114-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
Bolt
16
Yamaha Motors
Bolt97013-08045-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
