All diagrams for this model

2008 Outboard 115hp - F115TXR ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

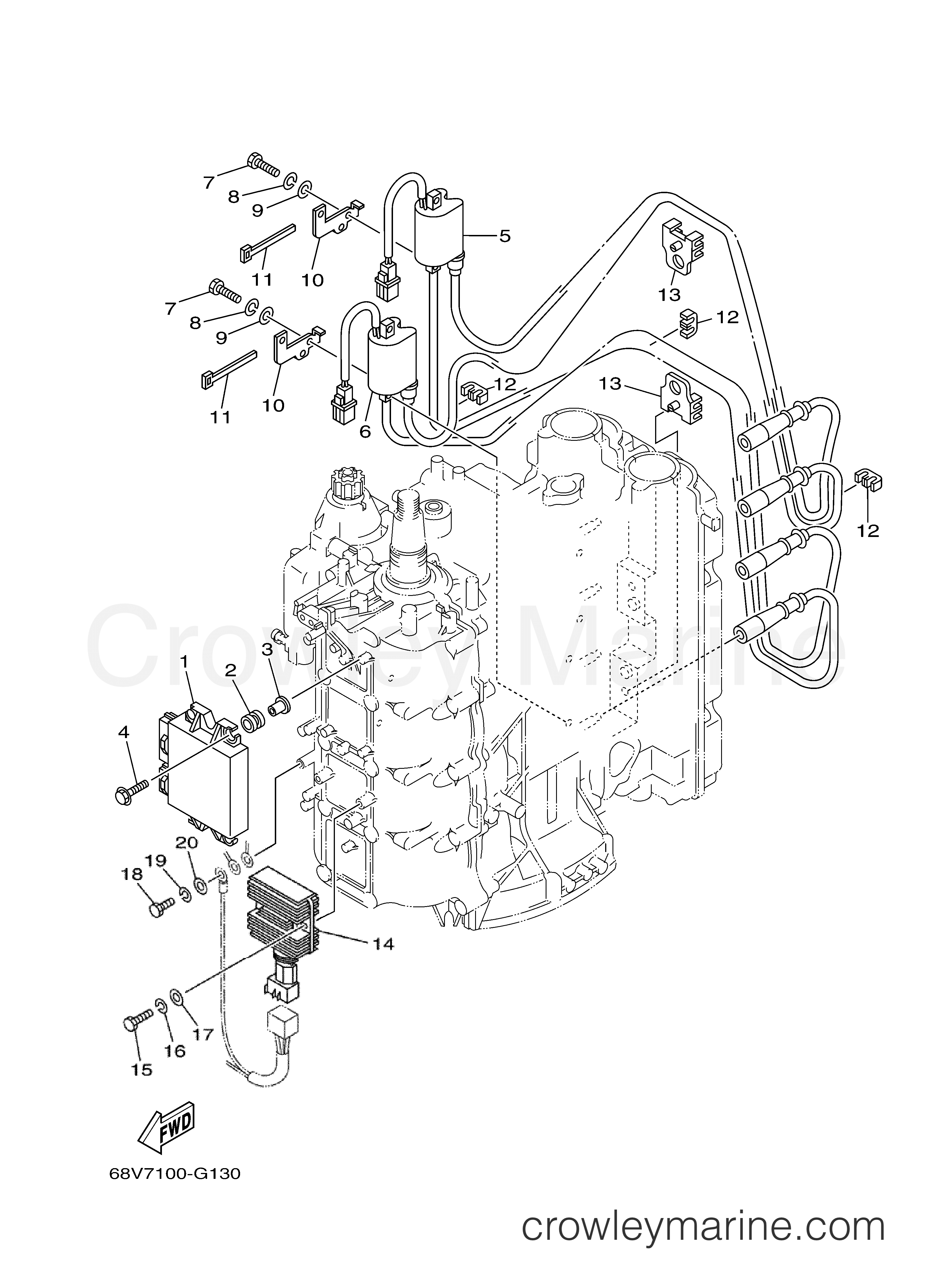

Yamaha Motors F115TXR - ELECTRICAL 1
Change View:
Engine Control Unit Assembly
1
Yamaha Motors
Engine Control Unit Assembly68V-8591A-43-00
Required: 1
ENGINE CONTROL UNIT ASSY
Supersedes: 68V-8591A-42-00
Cross Ship
Leaves in 2-5 days
$1437.10
$1221.53
You save $215.57
More details
DAMPER, IGNITION COIL
2
Yamaha Motors
DAMPER, IGNITION COIL68V-82317-01-00
Required: 4
DAMPER, IGNITION COIL
Supersedes: 68V-82317-00-00
Cross Ship
Leaves in 2-5 days
$5.95
$5.06
You save $0.89
More details
BOLT
7
Yamaha Motors
BOLT97095-06025-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Plate
10
Yamaha Motors
Plate68V-82388-00-00
Required: 2
PLATE
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
Cord Clamp
13
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 2
CLAMP, CORD 2
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Rectifier & Regulator Assembly
14
Yamaha Motors
Rectifier & Regulator Assembly68V-81960-10-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$263.70
$224.14
You save $39.56
More details
BOLT
15
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
BOLT, HEXAGON DEEP RECESS
18
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
