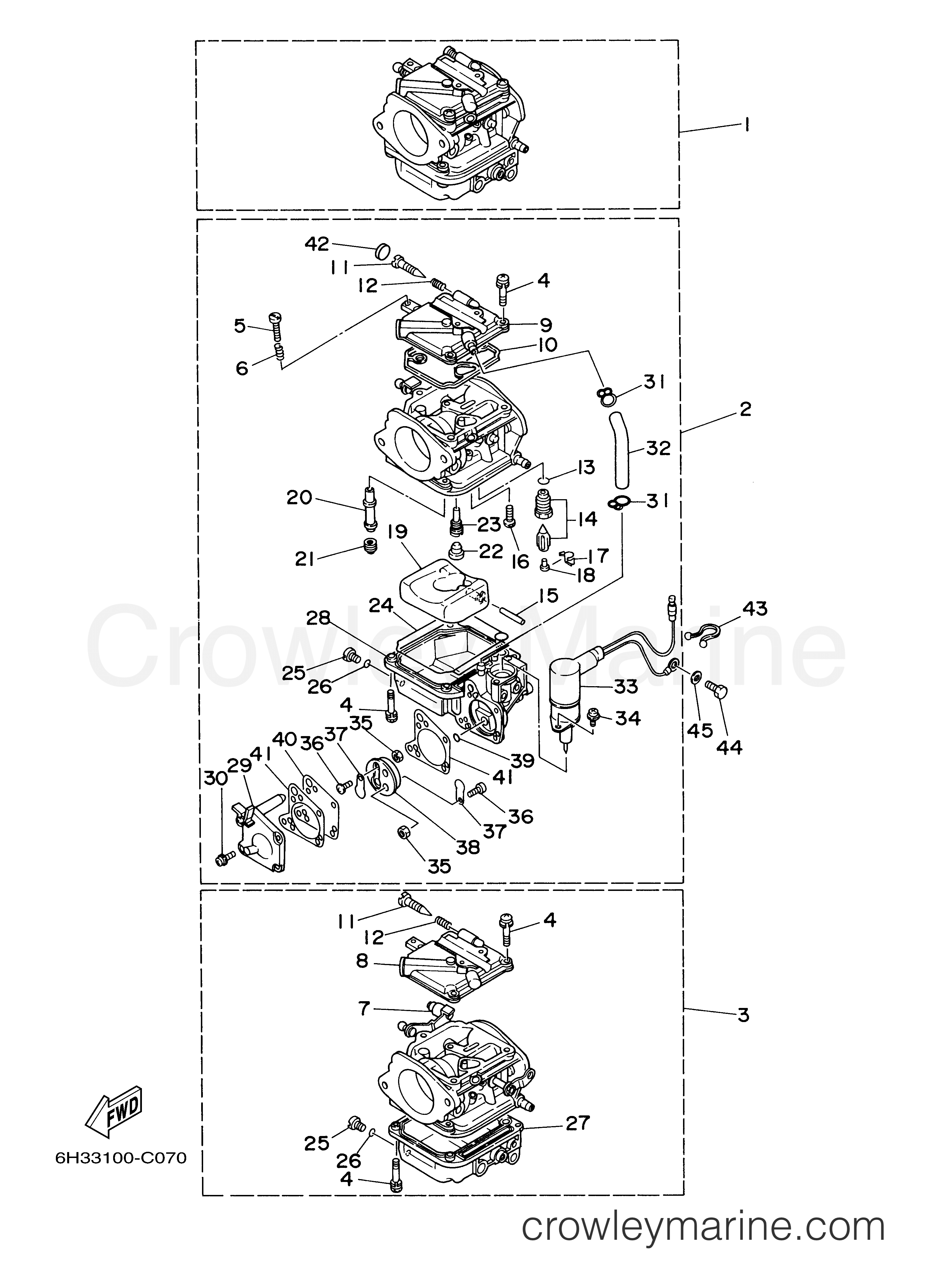

2008 Outboard 70hp - 70TLR CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly6H3-14301-10-00
Required: 1
CARBURETOR ASSY 1
$230.99
You save $40.76
2
Yamaha Motors
Carburetor Assembly6H3-14302-10-00
Required: 1
CARBURETOR ASSY 2
$500.61
You save $88.34
3
Yamaha Motors
Carburetor Assembly6H3-14303-10-00
Required: 1
CARBURETOR ASSY 3
$230.99
You save $40.76
4
Yamaha Motors
Screw With Washer97980-04114-00
Required: 21
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
$9.18
You save $1.62
6
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$6.29
You save $1.11
In stock
Only 2 remaining
$12.07
You save $2.13
$62.52
You save $11.03
$52.91
You save $9.34
In stock
5+ in stock
$9.82
You save $1.73
11
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 3
.SCREW, PILOT
$23.29
You save $4.11
In stock
5+ in stock
$2.93
You save $0.52
In stock
5+ in stock
$5.70
You save $1.00
14
Yamaha Motors
NEEDLE VALVE ASSY6H3-14590-02-00
Required: 3
.NEEDLE VALVE ASSY
Supersedes: 6H3-14590-01-00
In stock
5+ in stock
$24.57
You save $4.34
15
Yamaha Motors
Float Arm Pin6H4-14548-00-00
Required: 3
.PIN, FLOAT ARM
$8.20
You save $1.45
16
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
17
Yamaha Motors
Clip633-14159-00-00
Required: 3
.CLIP
Supersedes: 663-14159-00-00
$14.02
You save $2.47
In stock
Only 3 remaining
$6.88
You save $1.21
In stock
5+ in stock
$21.55
You save $3.80
$23.80
You save $4.20
21
Yamaha Motors
Main Jet (#150)6H3-14943-37-00
Required: 3
.JET, MAIN (#150)
In stock
5+ in stock
$13.43
You save $2.37
In stock
Only 4 remaining
$7.73
You save $1.37
In stock
Only 2 remaining
$9.69
You save $1.71
24
Yamaha Motors
Float Chamber Gasket6H4-14984-00-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$10.50
You save $1.85
25
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 3
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$18.15
You save $3.20
In stock
5+ in stock
$8.07
You save $1.42
27
Yamaha Motors
Float Chamber Body6H4-14980-00-00
Required: 2
.BODY, FLOAT CHAMBER
$44.63
You save $7.88
28
Yamaha Motors
Float Chamber Body6H3-14980-11-00
Required: 1
.BODY, FLOAT CHAMBER
Supersedes: 6H3-14980-10-00
$97.79
You save $17.26
In stock
Only 4 remaining
$61.71
You save $10.89
30
Yamaha Motors
Screw (M8 X 40)6H4-14567-09-00
Required: 4
.SCREW
Supersedes: 6H4-14567-00-00
$7.01
You save $1.24
31
Yamaha Motors
Clip5BF-14919-00-00
Required: 2
.CLIP
Supersedes: 6H3-14137-00-00
$3.65
You save $0.65
$4.72
You save $0.83
33
PRIME STARTER ASSY6H3-14380-02-00
Required: 1
.STARTER ASSY
Supersedes: 6H3-14380-00-00
In stock
Only 4 remaining
$228.61
You save $40.34
34
Yamaha Motors
Screw98580-04010-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 97803-04010-00
In stock
Only 2 remaining
$8.07
You save $1.42
In stock
Only 3 remaining
$1.57
You save $0.28
$3.74
You save $0.66
37
Yamaha Motors
Check Valve6L5-24421-00-00
Required: 2
.VALVE, CHECK
In stock
Only 5 remaining
$6.97
You save $1.23
In stock
Only 1 remaining
$42.33
You save $7.47
39
Yamaha Motors
O-Ring67F-14398-20-00
Required: 1
.O-RING
Supersedes: 6H4-24486-00-00
In stock
5+ in stock
$4.72
You save $0.83
In stock
Only 5 remaining
$9.69
You save $1.71
41
Yamaha Motors
Body Gasket6H3-24434-10-00
Required: 2
.GASKET, BODY
In stock
5+ in stock
$10.67
You save $1.88
$5.02
You save $0.88
$7.22
You save $1.27
44
Yamaha Motors
.BOLT97313-06012-00
Required: 1
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
45
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
