All diagrams for this model

2006 Outboard 200hp - F200TXR FUEL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

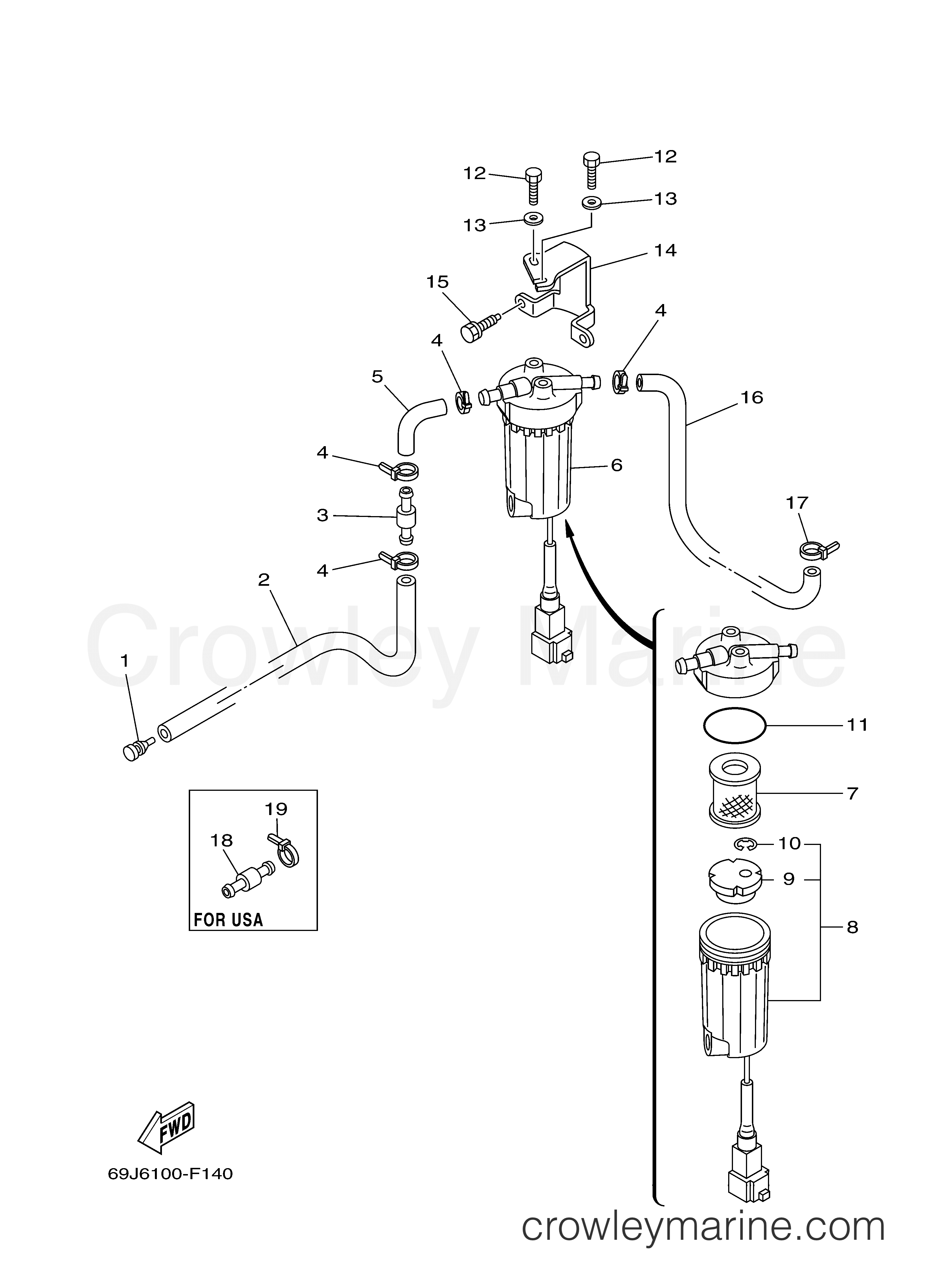

Yamaha Motors F200TXR - FUEL 1
Change View:
DAMPER 2
1
Yamaha Motors
DAMPER 2689-85547-01-00
Required: 1
DAMPER
Supersedes: 689-85547-00-00
Cross Ship
Leaves in 2-5 days
$5.65
$4.52
You save $1.13
More details
Hose (L2360)
2
Yamaha Motors
Hose (L2360)90445-13004-00
Required: 1
HOSE (L2360)
Cross Ship
Leaves in 2-5 days
$51.15
$43.48
You save $7.67
More details
Obsolete Yamaha Part
8
Yamaha Motors
Obsolete Yamaha Part6P3-WS24B-01-00
Required: 1
..CUP, FILTER (WITH TAG)
Supersedes: 6P3-WS24B-00-00
Cross Ship
Leaves in 2-5 days
$149.00
$126.65
You save $22.35
More details
Water Level Float
9
Yamaha Motors
Water Level Float6P3-24469-00-00
Required: 1
..FLOAT, WATER LEVEL
Cross Ship
Leaves in 2-5 days
$10.95
$8.76
You save $2.19
More details
Clip
10
Yamaha Motors
Clip6P3-24519-00-00
Required: 1
..CLIP
Cross Ship
Leaves in 2-5 days
$5.55
$4.44
You save $1.11
More details
Filter Bracket
14
Yamaha Motors
Filter Bracket69J-24566-00-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$42.60
$36.21
You save $6.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
