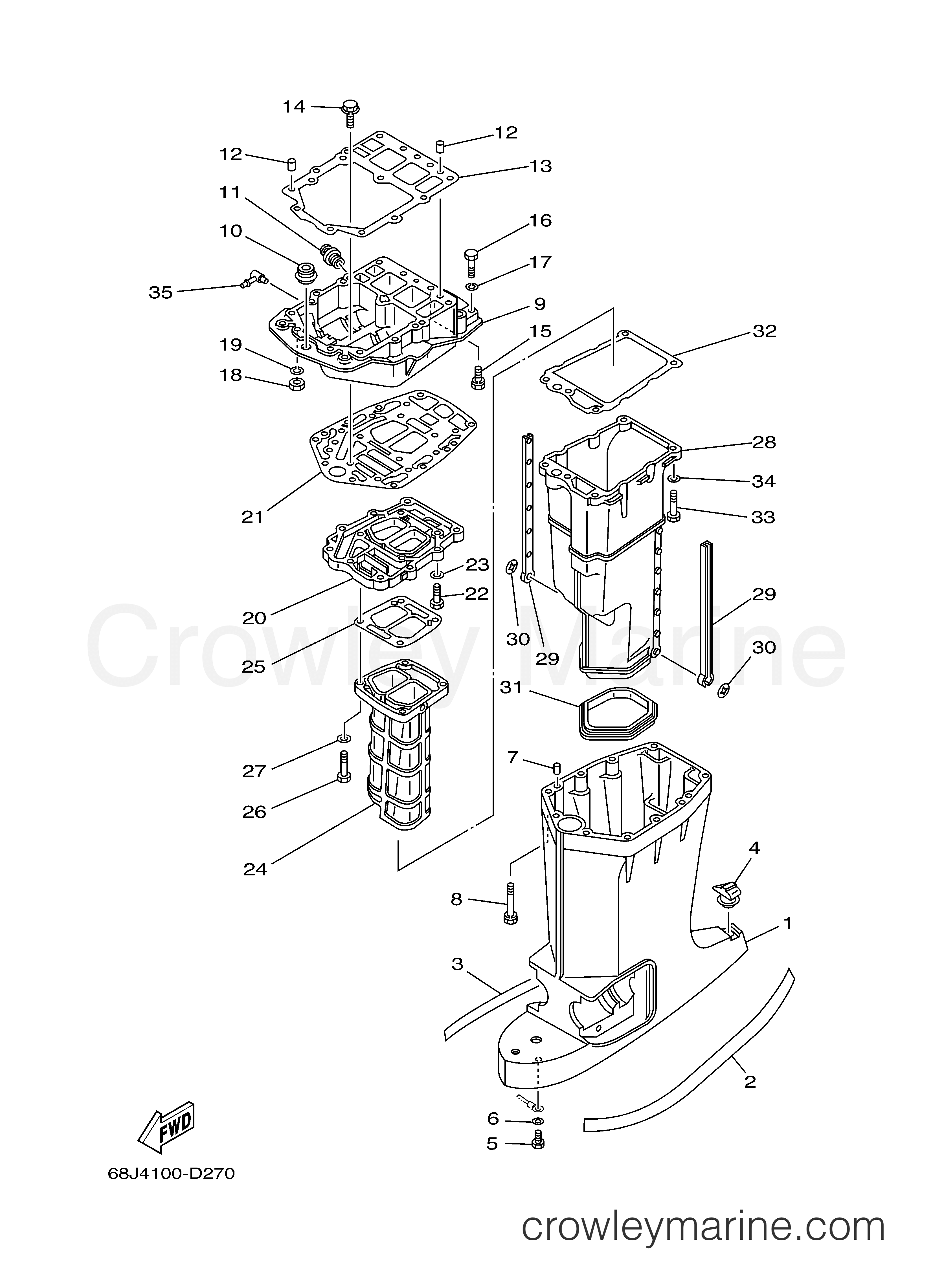

2005 Outboard 200hp - Z200TLR UPPER CASING diagram
1
Yamaha Motors
Upper Casing6E5-45111-02-8D
Required: 1
CASING, UPPER
$658.32
You save $116.18
$23.42
You save $4.13
In stock
Only 1 remaining
$25.97
You save $4.58
In stock
5+ in stock
$14.88
You save $2.63
$5.09
You save $0.90
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$8.84
You save $1.56
8
Yamaha Motors
Bolt with Washer90119-08078-00
Required: 6
BOLT, WITH WASHER
$16.45
You save $2.90
9
Yamaha Motors
Exhaust Guide6G5-41137-11-94
Required: 1
GUIDE, EXHAUST
$327.04
You save $57.71
10
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6E5-42724-01-00
Required: 1
GROMMET
Supersedes: 6E5-42724-00-00
$12.45
You save $2.20
11
Yamaha Motors
Hose Joint6G5-12581-00-00
Required: 1
JOINT, HOSE 1
In stock
Only 3 remaining
$18.79
You save $3.32
In stock
Only 2 remaining
$8.84
You save $1.56
13
Yamaha Motors
Upper Casing Gasket68F-45113-01-00
Required: 1
.GASKET, UPPER CASING
Supersedes: 68F-45113-00-00
$128.39
You save $22.66
14
Yamaha Motors
Washer with bolt97575-08430-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-08M79-00
$3.91
You save $0.69
15
Yamaha Motors
Bolt with Washer90119-08077-00
Required: 4
BOLT, WITH WASHER
$5.23
You save $0.92
In stock
Only 4 remaining
$2.63
You save $0.47
17
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER
Supersedes: 92995-08100-00
$4.76
You save $0.84
In stock
Only 2 remaining
$3.02
You save $0.53
19
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER
Supersedes: 92995-08100-00
$4.76
You save $0.84
20
Yamaha Motors
Exhaust Manifold6G5-41131-01-CA
Required: 1
MANIFOLD, EXT. 1
Supersedes: 6G5-41131-01-5B
$124.18
You save $21.92
21
Yamaha Motors
Upper Casing Gasket6G5-45114-A1-00
Required: 1
.GASKET, UPPER CASING
In stock
Only 1 remaining
$21.17
You save $3.73
22
Yamaha Motors
Bolt97080-08030-00
Required: 4
BOLT
Supersedes: 97095-08030-00
In stock
5+ in stock
$3.91
You save $0.69
23
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
24
Yamaha Motors
Exhaust Manifold64D-41132-00-CA
Required: 1
MANIFOLD, EXHAUST
Supersedes: 64D-41132-00-5B
$243.06
You save $42.89
25
Yamaha Motors
Exhaust Manifold Gasket6G5-41134-A1-00
Required: 1
.GASKET, EXHAUST MANIFOLD
$9.69
You save $1.71
In stock
Only 4 remaining
$2.63
You save $0.47
27
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
28
Yamaha Motors
Muffler6E5-14711-01-CA
Required: 1
MUFFLER 1
Supersedes: 6E5-14711-01-5B
$246.88
You save $43.57
29
Yamaha Motors
Muffler Damper6E5-14737-00-00
Required: 2
DAMPER, MUFFLER
$23.42
You save $4.13
In stock
Only 1 remaining
$0.42
You save $0.08
31
Yamaha Motors
Muffler Gasket6E5-45123-00-00
Required: 1
.GASKET, MUFFLER
$36.42
You save $6.43
32
Yamaha Motors
Exhaust Manifold Gasket6E5-41135-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD
In stock
Only 1 remaining
$5.70
You save $1.00
In stock
Only 4 remaining
$2.63
You save $0.47
34
Yamaha Motors
Plate Washer92990-08600-00
Required: 5
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
$44.24
You save $7.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
