2005 Outboard 9.9hp - T9.9ELH2D STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

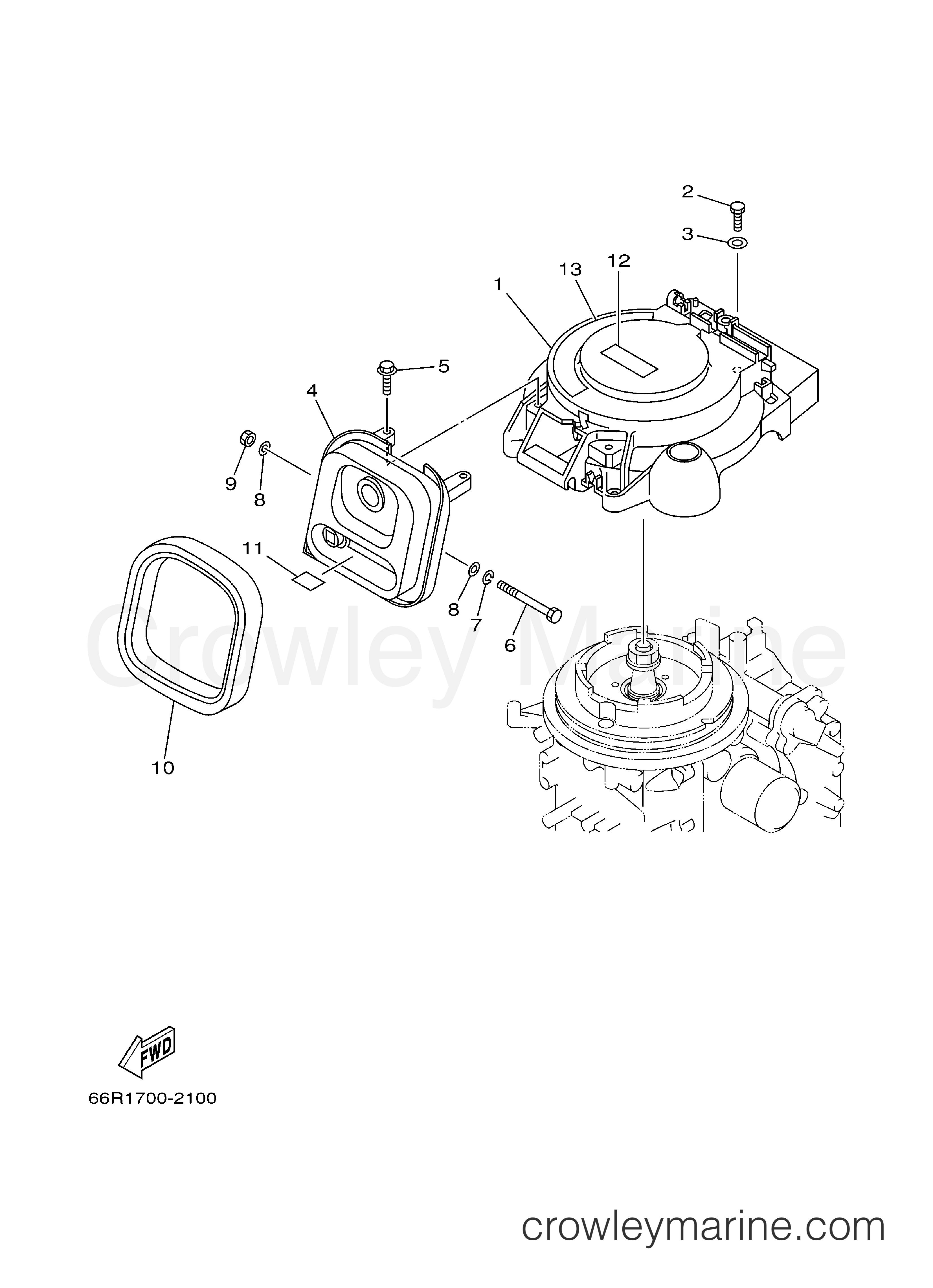

Yamaha Motors T9.9ELH2D - STARTER
Change View:
Starter Case
1
Yamaha Motors
Starter Case66M-15711-01-00
Required: 1
CASE, STARTER
Supersedes: 66M-15711-10-00
Cross Ship
Leaves in 2-5 days
$119.30
$101.41
You save $17.89
More details
Rope Guide
4
Yamaha Motors
Rope Guide66M-15758-10-00
Required: 1
GUIDE, ROPE
Cross Ship
Leaves in 2-5 days
$34.20
$29.07
You save $5.13
More details
Bolt
6
Yamaha Motors
Bolt97095-06090-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
Plain Washer
8
Yamaha Motors
Plain Washer 90201-06M05-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
Rubber Seal
10
Yamaha Motors
Rubber Seal66M-15762-00-00
Required: 1
SEAL, RUBBER 2
Cross Ship
Leaves in 2-5 days
$68.15
$57.93
You save $10.22
More details
Emblem Seat
11
Yamaha Motors
Emblem Seat66M-84342-00-00
Required: 1
SEAT, EMBLEM
Cross Ship
Leaves in 2-5 days
$10.10
$8.59
You save $1.52
More details
Instruction Label
13
Yamaha Motors
Instruction Label66M-14427-40-00
Required: 1
LABEL, INSTRUCTION
Cross Ship
Leaves in 2-5 days
$17.60
$14.96
You save $2.64
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
