2005 Outboard 250hp - LF250TXRD TOP COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

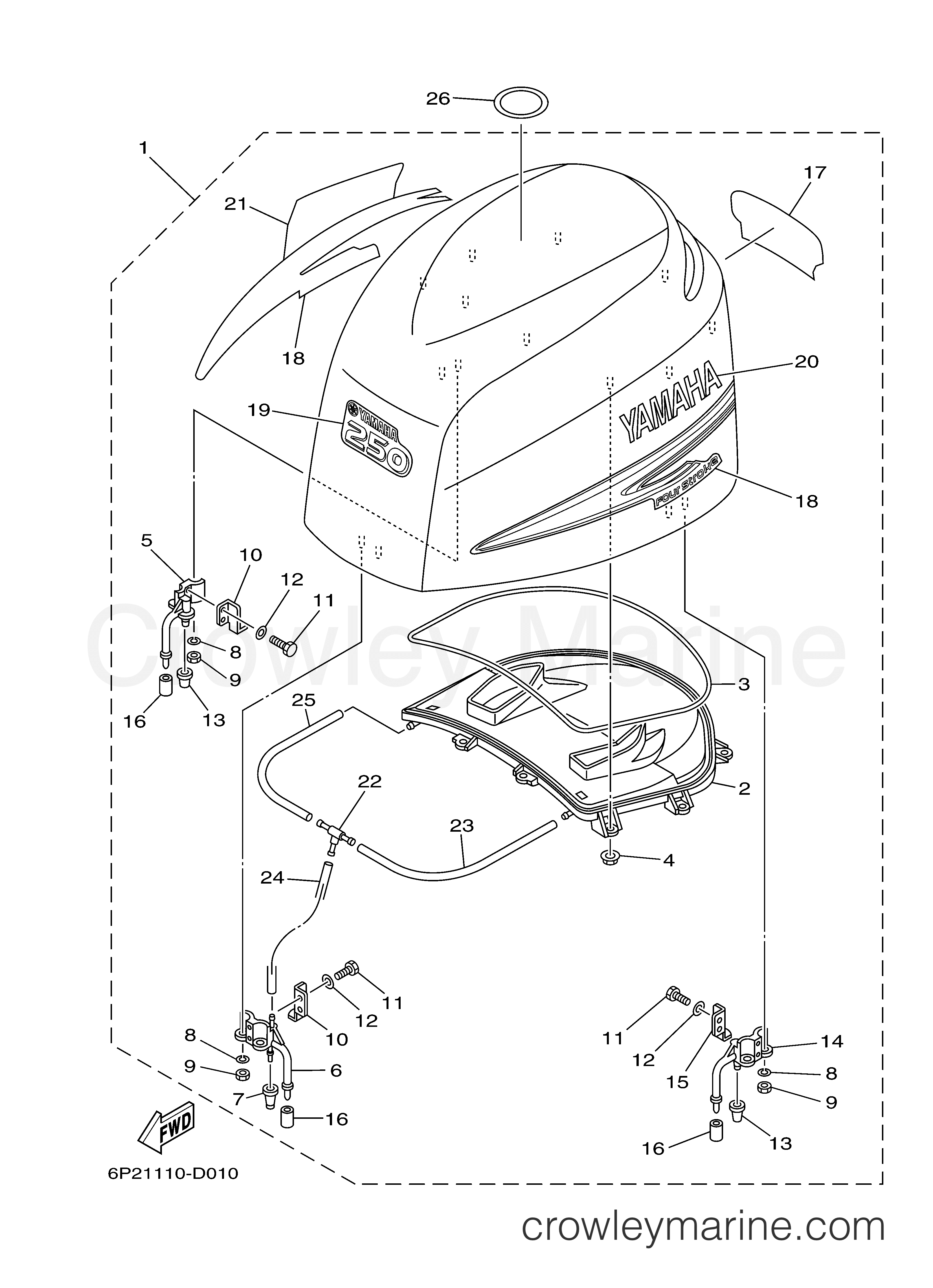

Yamaha Motors LF250TXRD - TOP COWLING
Change View:
Top Cowling Assembly
1
Yamaha Motors
Top Cowling Assembly6P2-42610-02-00
Required: 1
TOP COWLING ASSY
Supersedes: 6P2-42610-00-8D
Cross Ship
Leaves in 2-5 days
$1971.85
$1676.07
You save $295.78
More details
Air Duct Molding
2
Yamaha Motors
Air Duct Molding6P2-42613-00-00
Required: 1
.MOLDING, AIR DUCT
Cross Ship
Leaves in 2-5 days
$185.00
$157.25
You save $27.75
More details
Seal
3
Yamaha Motors
Seal6P2-42629-00-00
Required: 1
.SEAL
Cross Ship
Leaves in 2-5 days
$25.35
$21.55
You save $3.80
More details
Clamp Band Holder
5
Yamaha Motors
Clamp Band Holder68F-42647-01-00
Required: 1
.HOLDER, CLAMP BAND
Supersedes: 68F-42647-01-94
Cross Ship
Leaves in 2-5 days
$42.00
$35.70
You save $6.30
More details
Hook
10
Yamaha Motors
Hook60V-42651-01-00
Required: 2
.HOOK
Cross Ship
Leaves in 2-5 days
$46.70
$39.69
You save $7.01
More details
BOLT, HEXAGON DEEP RECESS
11
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 6
.BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Hook
15
Yamaha Motors
Hook60V-42652-00-00
Required: 1
.HOOK
Cross Ship
Leaves in 2-5 days
$35.90
$30.52
You save $5.39
More details
Cap
16
Yamaha Motors
Cap67F-13448-00-00
Required: 3
.CAP
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Cowling Mark
20
Yamaha Motors
Cowling Mark69J-42681-01-00
Required: 1
.MARK, COWLING
Supersedes: 69J-42681-00-00
Cross Ship
Leaves in 2-5 days
$41.85
$35.57
You save $6.28
More details
Cowling Mark
21
Yamaha Motors
Cowling Mark69J-42682-01-00
Required: 1
.MARK, COWLING
Supersedes: 69J-42682-00-00
Cross Ship
Leaves in 2-5 days
$41.85
$35.57
You save $6.28
More details
Joint Pipe
22
Yamaha Motors
Joint Pipe69J-24378-00-00
Required: 1
.PIPE, JOINT 3
Cross Ship
Leaves in 2-5 days
$5.65
$4.80
You save $0.85
More details
Hose
25
Yamaha Motors
Hose90445-112E1-00
Required: 1
.HOSE (L300)
Supersedes: 90445-11182-00
Cross Ship
Leaves in 2-5 days
$25.99
$22.09
You save $3.90
More details
Caution Label
26
Yamaha Motors
Caution Label67F-13434-10-00
Required: 1
LABEL, CAUTION
Supersedes: 67F-13434-02-00
Cross Ship
Leaves in 2-5 days
$12.25
$10.41
You save $1.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
