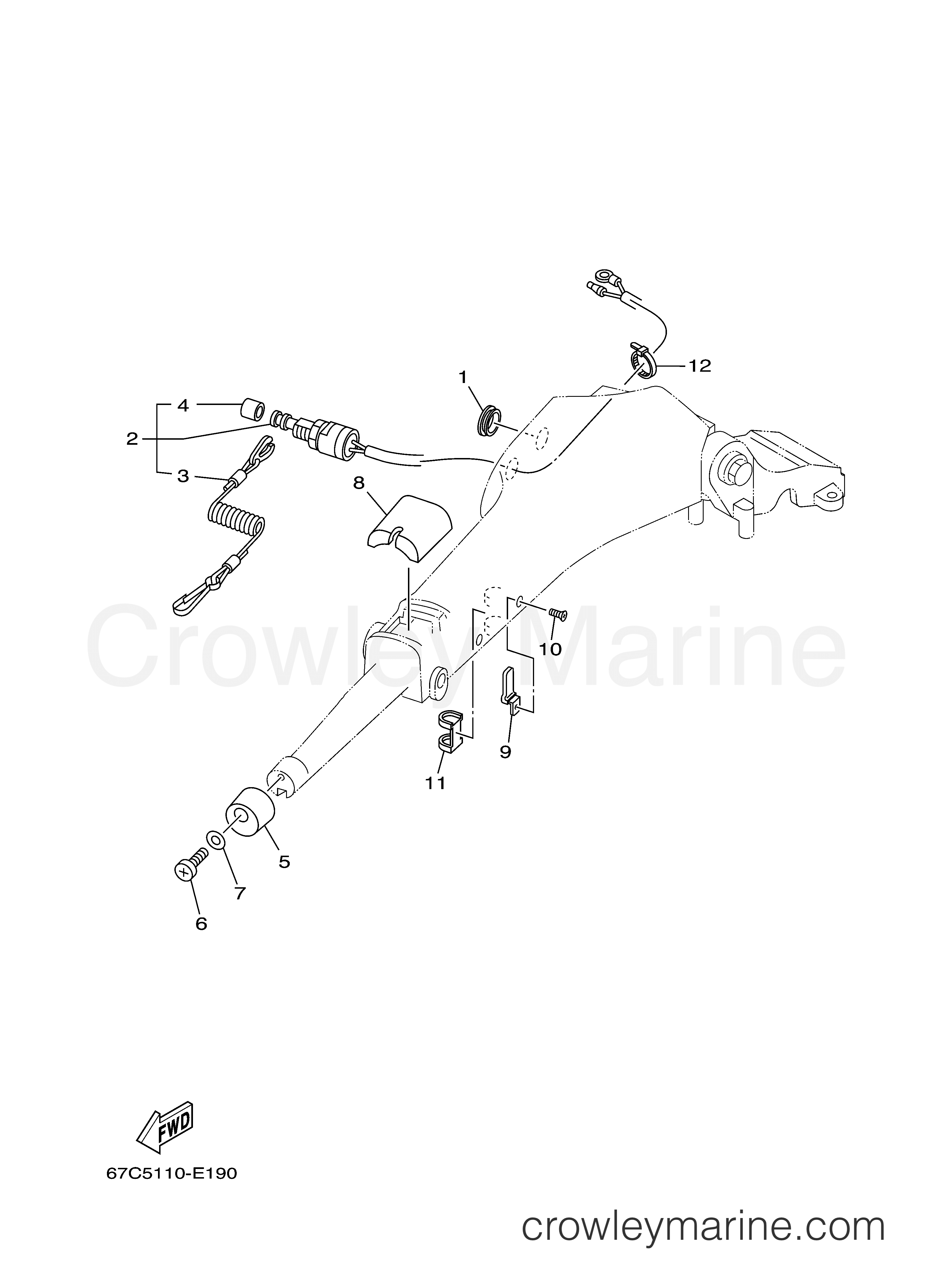

2005 Outboard 30hp - F30TLR STEERING 2 F40MH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Grommet676-42726-00-00

Required: 1

GROMMET

~~$8.85~~

$7.52

You save $1.33

More details

Yamaha Motors

Engine Stop Switch Assembly6K5-82575-03-00

Required: 1

ENGINE STOP SWITCH ASSY

~~$64.00~~

$54.40

You save $9.60

More details

Yamaha Motors

Stop Switch Lanyard682-82556-00-00

Required: 1

.LANYARD, STOP SWITCH

In stock

5+ in stock

~~$8.20~~

$6.97

You save $1.23

.CAP

In stock

5+ in stock

~~$9.05~~

$7.69

You save $1.36

CAP

~~$15.95~~

$13.56

You save $2.39

More details

Yamaha Motors

Pan Head Screw98580-06016-00

Required: 1

SCREW, PAN HEAD

Supersedes: 97880-06016-00

In stock

Only 5 remaining

~~$3.35~~

$2.85

You save $0.50

More details

Yamaha Motors

Plate Washer92990-06600-00

Required: 1

WASHER, PLATE

In stock

5+ in stock

~~$2.85~~

$2.42

You save $0.43

COVER

Supersedes: 6X4-81942-00-00

~~$23.55~~

$20.02

You save $3.53

PLATE

~~$14.90~~

$12.66

You save $2.24

More details

Yamaha Motors

Flat Head Screw98780-04012-00

Required: 2

SCREW, COUNTERSUNK

Supersedes: 90152-04015-00

~~$3.10~~

$2.63

You save $0.47

More details

Yamaha Motors

Grommet6X4-42724-00-00

Required: 1

GROMMET

~~$6.45~~

$5.48

You save $0.97

CLAMP

Supersedes: 90465-13M36-00

In stock

Only 3 remaining

~~$5.50~~

$4.68

You save $0.83

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
