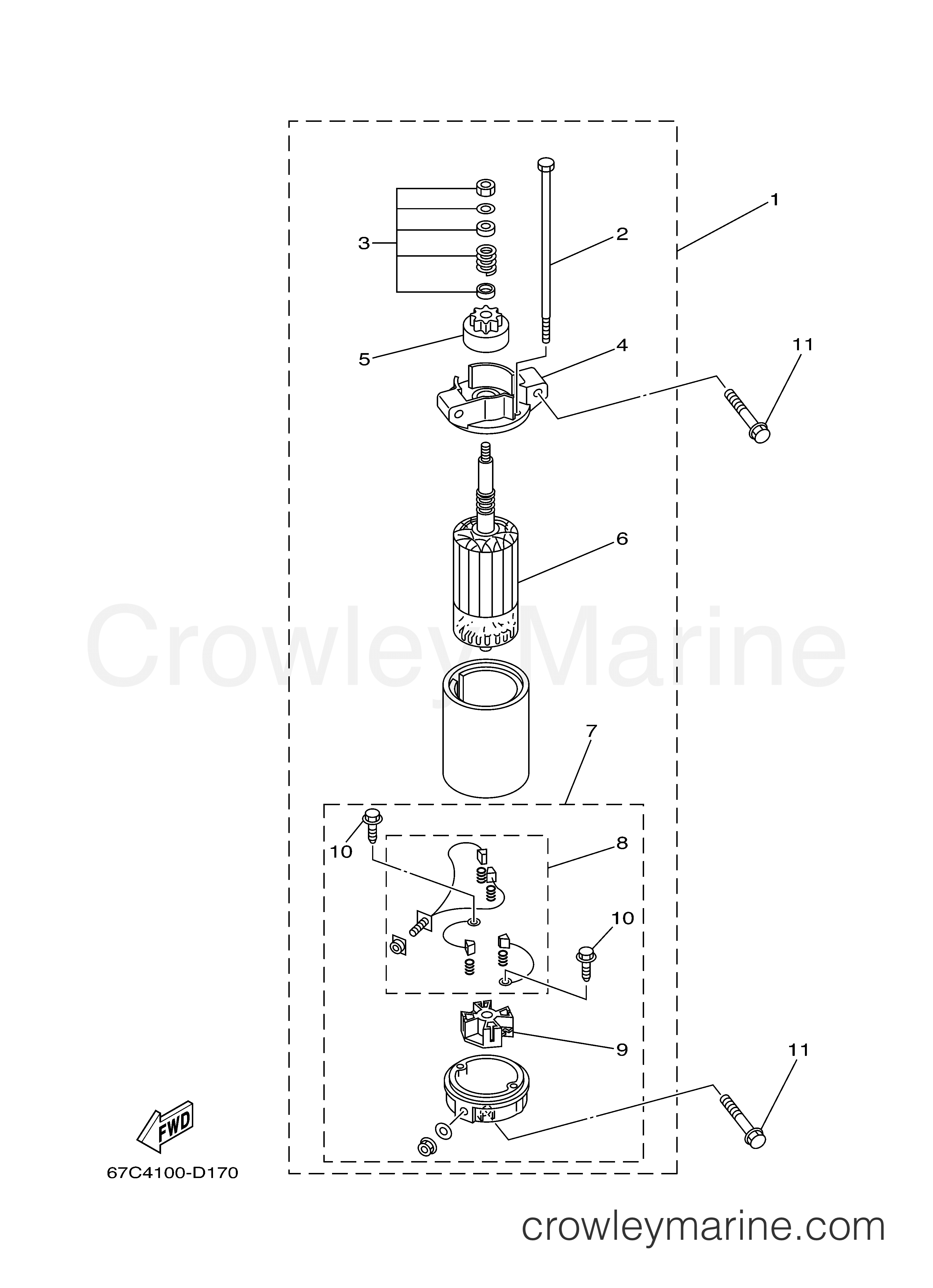

2005 Outboard 30hp - F30TLR STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F30TLR - STARTING MOTOR
Change View:
Starting Motor Assembly
1
Yamaha Motors
Starting Motor Assembly67C-81800-02-00
Required: 1
STARTING MOTOR ASSY
Supersedes: 67C-81800-01-00
Cross Ship
Leaves in 2-5 days
$426.80
$362.78
You save $64.02
More details
Bolt
2
Yamaha Motors
Bolt67C-81826-00-00
Required: 2
.BOLT
Cross Ship
Leaves in 2-5 days
$30.65
$26.05
You save $4.60
More details
Retainer
3
Yamaha Motors
Retainer65W-81857-03-00
Required: 1
.PINION STOPPER SET
Supersedes: 65W-81857-02-00
Cross Ship
Leaves in 2-5 days
$155.45
$132.13
You save $23.32
More details
Front Bracket Assembly
4
Yamaha Motors
Front Bracket Assembly65W-81830-00-00
Required: 1
.FRONT BRACKET ASSY
Cross Ship
Leaves in 2-5 days
$290.80
$247.18
You save $43.62
More details
Starting Motor Gear Assembly
5
Yamaha Motors
Starting Motor Gear Assembly65W-81807-00-00
Required: 1
.GEAR ASSY, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$259.35
$220.45
You save $38.90
More details
Armature Assembly
6
Yamaha Motors
Armature Assembly67C-81850-01-00
Required: 1
.ARMATURE ASSY
Cross Ship
Leaves in 2-5 days
$239.65
$203.70
You save $35.95
More details
Rear Bracket Assembly
7
Yamaha Motors
Rear Bracket Assembly65W-81820-00-00
Required: 1
.REAR BRACKET ASSY
Cross Ship
Leaves in 2-5 days
$323.60
$275.06
You save $48.54
More details
Brush Holder Assembly
9
Yamaha Motors
Brush Holder Assembly65W-81840-00-00
Required: 1
..BRUSH HOLDER ASSY
Cross Ship
Leaves in 2-5 days
$51.35
$43.65
You save $7.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
