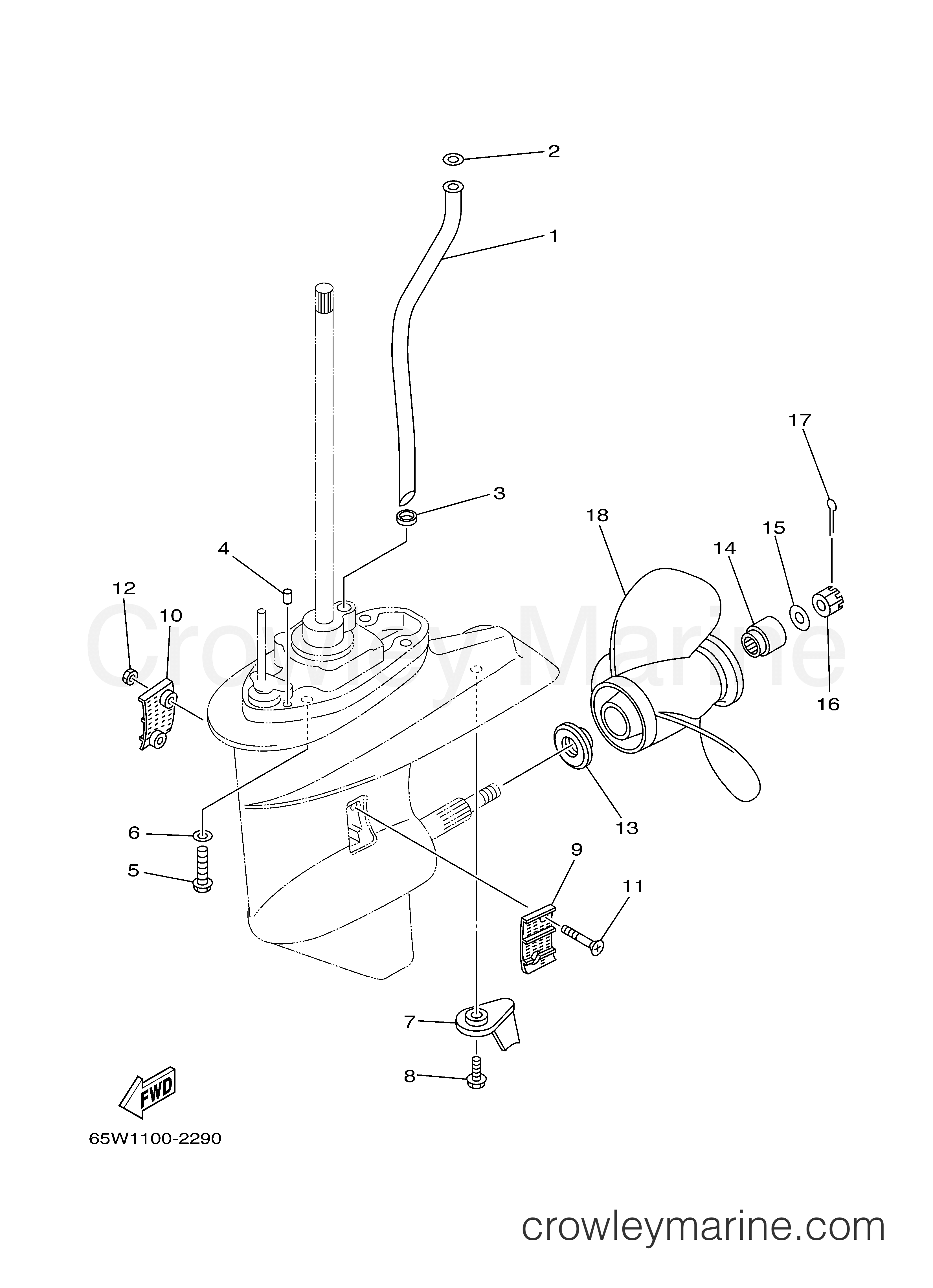

2005 Outboard 25hp - F25ESH LOWER CASING DRIVE 2 diagram
1
Yamaha Motors
Water Tube65W-44361-12-00
Required: 1
TUBE, WATER
Supersedes: 65W-44361-11-00
$35.79
You save $6.31
1
Yamaha Motors
Water Tube65W-44361-02-00
Required: 1
TUBE, WATER
Supersedes: 65W-44361-01-00
$27.16
You save $4.79
2
Yamaha Motors
Plate Washer90202-12060-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$9.69
You save $1.71
$3.82
You save $0.68
$4.72
You save $0.83
In stock
5+ in stock
$5.52
You save $0.97
6
Yamaha Motors
Plate Washer92990-10600-00
Required: 4
WASHER
Supersedes: 92995-10600-00
In stock
5+ in stock
$2.55
You save $0.45
$13.13
You save $2.32
8
Yamaha Motors
Bolt with Washer90119-06M48-00
Required: 1
BOLT, WITH WASHER
$5.44
You save $0.96
9
Yamaha Motors
Water Inlet Cover6L2-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
Only 5 remaining
$9.10
You save $1.61
10
Yamaha Motors
Water Inlet Cover 26L2-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
Only 1 remaining
$10.84
You save $1.91
11
Yamaha Motors
Countersunk Screw90151-05M05-00
Required: 2
SCREW, COUNTERSUNK
In stock
5+ in stock
$2.72
You save $0.48
12
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 2
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
$24.99
You save $4.41
In stock
Only 2 remaining
$17.17
You save $3.03
15
Yamaha Motors
Washer92990-14200-00
Required: 1
WASHER, PLAIN
In stock
Only 2 remaining
$2.25
You save $0.40
In stock
Only 5 remaining
$5.74
You save $1.01
17
Yamaha Motors
Cotter Pin91490-30030-00
Required: 1
PIN. COTTER
Supersedes: 91490-30022-00
In stock
Only 2 remaining
$7.22
You save $1.27
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.88x9RH Aluminum664-45941-01-00
Required: 1
PROPELLER (3X9-7/8"X9"-F)
Supersedes: 664-45941-01-EL
In stock
Only 1 remaining
$148.75
You save $26.25
18
Yamaha Motors
Propeller (3X9-7/8"X8"-F)664-45943-01-EL
Required: 1
PROPELLER (3X9-7/8"X8"-F)
$148.75
You save $26.25
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.88x10.5RH Aluminum664-45945-00-00
Required: 1
PROPELLER (3X9-7/8"X10-1/2"-F)
Supersedes: 664-45945-00-EL
$148.75
You save $26.25
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.88x11.25RH Aluminum664-45947-01-00
Required: 1
PROPELLER (3X9-7/8"X11-1/4"-F)
Supersedes: 664-45947-01-EL
$148.75
You save $26.25
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.88x12RH Aluminum664-45954-01-00
Required: 1
PROPELLER (3X9-7/8"X12"-F)
Supersedes: 664-45954-01-EL
$148.75
You save $26.25
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.88x14RH Aluminum664-45952-00-00
Required: 1
PROPELLER (3X9-7/8"X14"-F)
Supersedes: 664-45952-00-EL
$148.75
You save $26.25
18
Yamaha Motors
Prop - 3 Blade 9.13x13RH Stainless Steel664-45970-00-00
Required: 1
PROPELLER (3X9-1/8"X13"-F)
Supersedes: 664-45970-00-98
$465.80
You save $82.20
18
Yamaha Motors
Prop - 3 Blade 9.13x12RH Stainless Steel664-45972-00-00
Required: 1
PROPELLER (3X9-1/8"X12"-F)
Supersedes: 664-45972-00-98
$465.80
You save $82.20
18
Yamaha Motors
Aluminum Prop - 3 Blade 9.88x13RH Aluminum664-45949-02-00
Required: 1
PROPELLER (3X9-7/8"X13"-F)
Supersedes: 664-45949-02-EL
$148.75
You save $26.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
