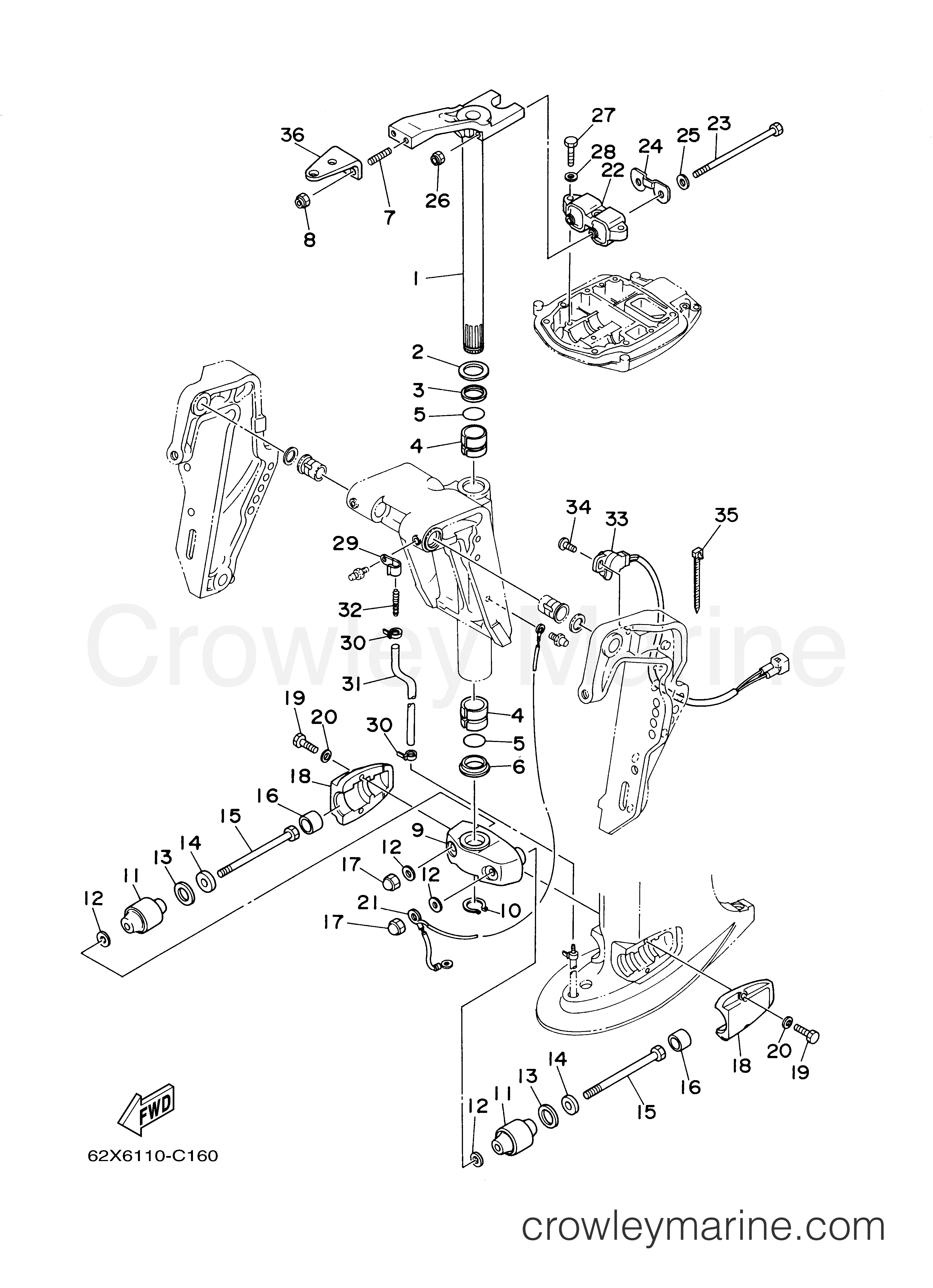

2005 Outboard 40hp - 40TLRD BRACKET 2 diagram
1
Yamaha Motors
Steering Bracket Assembly63D-42510-12-8D
Required: 1
STEERING BRACKET ASSY
Supersedes: 63D-42510-12-4D
$267.79
You save $47.26
2
Yamaha Motors
Plate Washer90201-30M00-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.08
You save $1.07
$6.54
You save $1.16
In stock
Only 1 remaining
$13.30
You save $2.35
In stock
Only 1 remaining
$5.44
You save $0.96
In stock
Only 1 remaining
$7.31
You save $1.29
7
Yamaha Motors
Stud Bolt90116-10062-00
Required: 2
BOLT, STUD
Supersedes: 90116-10175-00
In stock
5+ in stock
$7.22
You save $1.27
8
Yamaha Motors
Self-Locking Nut90185-10027-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-10051-00
In stock
5+ in stock
$2.04
You save $0.36
9
Yamaha Motors
Lower Mount Rubber Housing63D-44551-01-4D
Required: 1
HOUSING, LOWER MOUNT RUBBER
$109.61
You save $19.34
In stock
Only 5 remaining
$12.20
You save $2.15
11
Yamaha Motors
Damper Mount - Lower63D-44555-00-00
Required: 2
MOUNT DAMPER, LOWER SIDE
Supersedes: 63D-44555-00-94
$56.78
You save $10.02
12
Yamaha Motors
Plate Washer90201-12M16-00
Required: 4
WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
13
Yamaha Motors
Plate Washer90202-25M04-00
Required: 2
WASHER, PLATE
In stock
Only 1 remaining
$7.31
You save $1.29
14
Yamaha Motors
Plate Washer90201-13M19-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$6.63
You save $1.17
In stock
Only 2 remaining
$14.87
You save $2.62
16
Yamaha Motors
DAMPER, LOWER MOUNT RUBBER663-44575-01-00
Required: 2
DAMPER, LOWER MOUNT RUBBER
Supersedes: 663-44575-00-00
In stock
Only 1 remaining
$11.69
You save $2.06
$12.54
You save $2.21
18
Yamaha Motors
Lower Mount Housing (Rubber)63D-44552-01-8D
Required: 2
HOUSING, LOWER MOUNT RUBBER 2
Supersedes: 63D-44552-01-4D
$29.28
You save $5.17
19
Yamaha Motors
Bolt97080-08030-00
Required: 4
BOLT
Supersedes: 97075-08030-00
In stock
5+ in stock
$3.91
You save $0.69
20
Yamaha Motors
Spring Washer92990-08100-00
Required: 4
WASHER
Supersedes: 92995-08100-00
$4.76
You save $0.84
$29.03
You save $5.12
22
Yamaha Motors
Mount Damper, Upper63D-44514-01-00
Required: 1
MOUNT DAMPER, UPPER SIDE
Supersedes: 63D-44514-01-94
$57.55
You save $10.16
23
Yamaha Motors
Bolt90109-08229-00
Required: 2
BOLT
Supersedes: 90101-08M15-00
In stock
Only 4 remaining
$16.06
You save $2.84
$11.43
You save $2.02
25
Yamaha Motors
Plate Washer90201-09425-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$5.91
You save $1.04
26
Yamaha Motors
Self-Locking Nut90185-08018-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-08045-00
In stock
5+ in stock
$3.91
You save $0.69
27
Yamaha Motors
Bolt97080-08030-00
Required: 3
BOLT
Supersedes: 97075-08030-00
In stock
5+ in stock
$3.91
You save $0.69
28
Yamaha Motors
Spring Washer92990-08100-00
Required: 3
WASHER
Supersedes: 92995-08100-00
$4.76
You save $0.84
$6.08
You save $1.07
30
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 4 remaining
$6.93
You save $1.22
In stock
Only 2 remaining
$9.69
You save $1.71
33
Yamaha Motors
Trim Sender63D-83672-11-00
Required: 1
TRIM SENDER
Supersedes: 63D-83672-10-00
$231.79
You save $40.91
34
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06016-00
In stock
Only 5 remaining
$2.85
You save $0.50
In stock
Only 2 remaining
$7.22
You save $1.27
36
Yamaha Motors
Steering Hook63D-48511-01-00
Required: 1
HOOK, STEERING
Supersedes: 63D-48511-00-4D
In stock
Only 1 remaining
$38.25
You save $6.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
