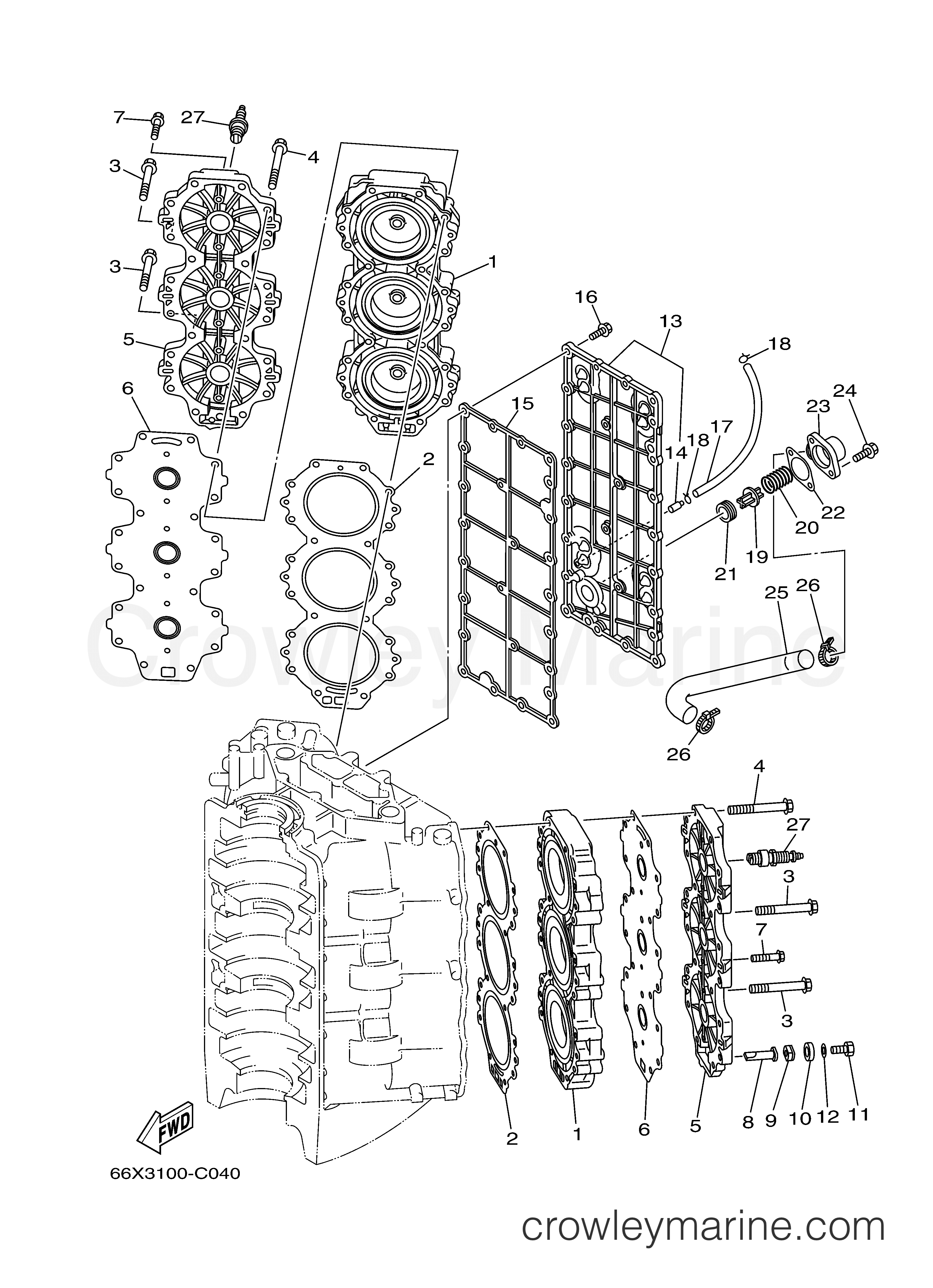

2004 Outboard 250hp - VX250TLRC CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head69L-11111-00-1S
Required: 2
HEAD, CYLINDER 1
$268.26
You save $47.34
2
Yamaha Motors
Cylinder Head Gasket69L-11181-01-00
Required: 2
.GASKET, CYLINDER HEAD 1
Supersedes: 69L-11181-00-00
In stock
5+ in stock
$71.74
You save $12.66
3
Yamaha Motors
Bolt with Washer90119-08MA5-00
Required: 4
BOLT, WITH WASHER
$5.61
You save $0.99
4
Yamaha Motors
Bolt with Washer90119-08M99-00
Required: 36
BOLT, WITH WASHER
$3.39
You save $0.60
5
Yamaha Motors
Cylinder Head Cover61A-11191-00-1S
Required: 2
COVER, CYLINDER HEAD 1
In stock
Only 1 remaining
$126.69
You save $22.36
6
Yamaha Motors
GASKET, HEAD COVER 161A-11193-A2-00
Required: 2
.GASKET, HEAD COVER 1
Supersedes: 61A-11193-A1-00
In stock
5+ in stock
$33.62
You save $5.93
7
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 12
BOLT, WITH WASHER
In stock
5+ in stock
$3.02
You save $0.53
In stock
5+ in stock
$3.78
You save $0.67
9
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 2
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.74
You save $1.01
10
Yamaha Motors
Anode Cover6H3-11327-00-94
Required: 2
COVER, ANODE
Supersedes: 6H3-11327-00-1S
$27.63
You save $4.88
$1.53
You save $0.27
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
Exhaust Outer Cover61A-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$167.32
You save $29.53
14
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.93
You save $0.87
15
Yamaha Motors
EXHAUST INNER GASKET6S3-41112-00-00
Required: 1
.GASKET, EXHAUST INNER COVER
Supersedes: 61A-41112-A1-00
$72.76
You save $12.84
16
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 25
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
17
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L600)
Supersedes: 90445-09M25-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
19
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.69
You save $2.06
20
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.46
You save $1.14
In stock
5+ in stock
$3.74
You save $0.66
In stock
5+ in stock
$4.80
You save $0.85
23
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
COVER, BYPASS 2
In stock
5+ in stock
$16.06
You save $2.84
24
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
In stock
Only 4 remaining
$14.41
You save $2.54
No longer availableSearch Nationwide Inventory
Price unavailable
27
Yamaha Motors
BR9HS-10 NGK 4551BR9-HS100-00-00
Required: 6
PLUG, SPARK (NGK BR9HS-10)
Supersedes: NGK-BR9HS-10-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
