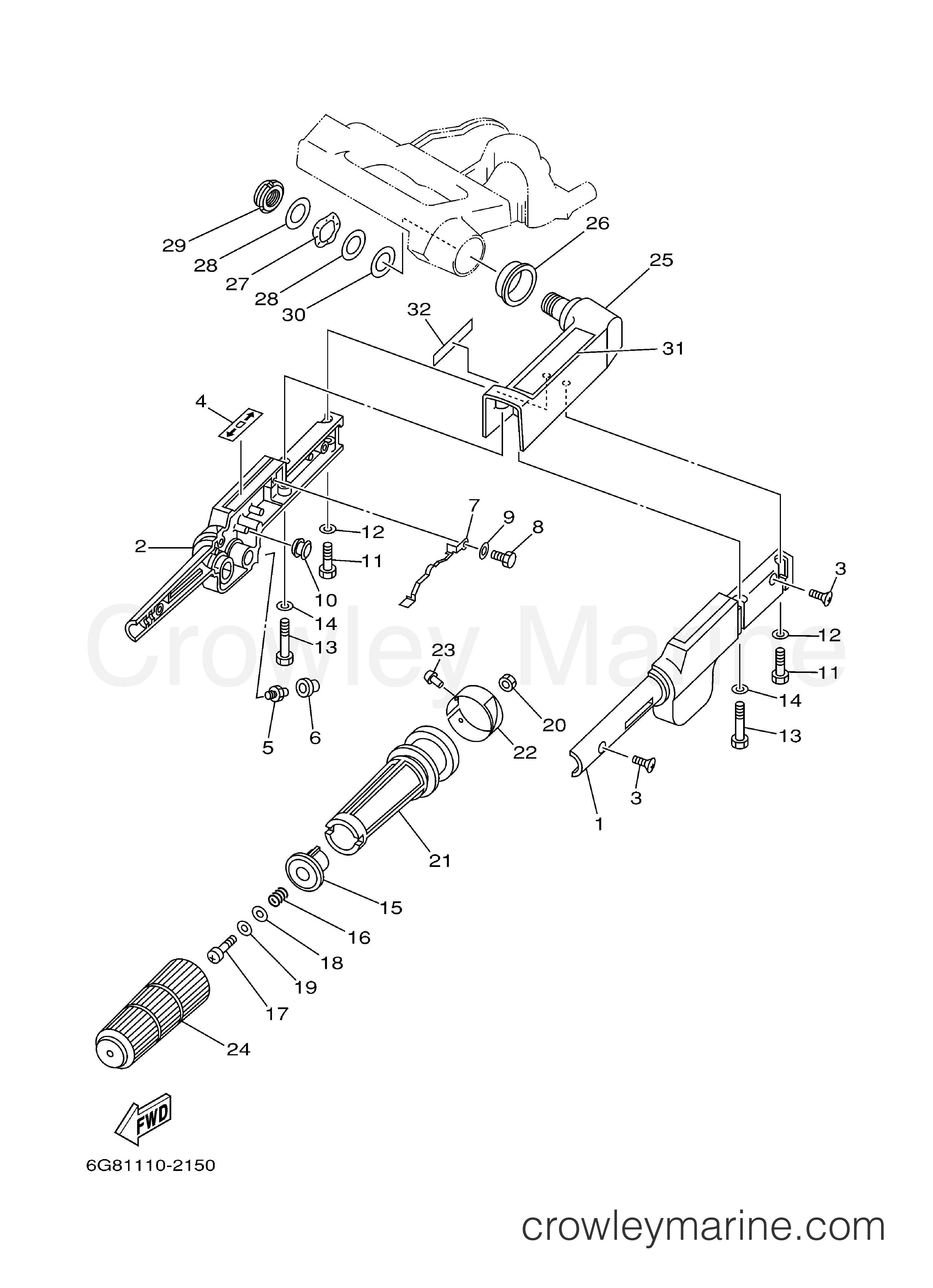

2004 Outboard 9.9hp - T9.9EXHC STEERING diagram
1
Yamaha Motors
Steering Handle6G8-42111-02-8D
Required: 1
HANDLE, STEERING
Supersedes: 6G8-42111-01-4D
$71.91
You save $12.69
2
Yamaha Motors
Steering Handle6G8-42112-03-8D
Required: 1
HANDLE, STEERING
Supersedes: 6G8-42112-02-4D
$63.07
You save $11.13
3
Yamaha Motors
Flat Head Screw98780-05016-00
Required: 2
.SCREW, FLAT HEAD
In stock
5+ in stock
$2.72
You save $0.48
4
Yamaha Motors
Shift Indicator6G8-44191-00-00
Required: 1
INDICATOR, SHIFT
$6.29
You save $1.11
5
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
6
Yamaha Motors
Grease Nipple Cap663-45119-01-00
Required: 1
CAP, GREASE NIPPLE
Supersedes: 663-45119-00-00
In stock
5+ in stock
$2.04
You save $0.36
$15.21
You save $2.69
In stock
Only 1 remaining
$1.49
You save $0.26
9
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92995-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
$2.72
You save $0.48
$2.85
You save $0.50
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$2.38
You save $0.42
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
15
Yamaha Motors
Friction Steering Handle Grip6G8-42126-01-94
Required: 1
FRICTION, STEERING HANDLE GRIP
$13.43
You save $2.37
16
Yamaha Motors
Compression Spring90501-23M42-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$9.82
You save $1.73
17
Yamaha Motors
Pan Head Screw97885-06030-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-06030-00
In stock
Only 3 remaining
$4.29
You save $0.76
18
Yamaha Motors
Plate Washer90201-06049-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$3.10
You save $0.55
19
Yamaha Motors
Plate Washer90202-06007-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$3.82
You save $0.68
In stock
Only 4 remaining
$8.07
You save $1.42
21
Yamaha Motors
Steering Handle Grip6G8-42119-00-00
Required: 1
GRIP, STEERING HANDLE
In stock
Only 5 remaining
$9.27
You save $1.63
22
Yamaha Motors
Throttle Indicator6G8-42137-01-00
Required: 1
INDICATOR, THROTTLE
In stock
Only 3 remaining
$15.43
You save $2.72
In stock
5+ in stock
$4.72
You save $0.83
24
Yamaha Motors
Rubber Handle6G8-42177-01-00
Required: 1
RUBBER, HANDLE
Supersedes: 6G8-42177-00-00
In stock
Only 1 remaining
$21.72
You save $3.83
25
Yamaha Motors
Steering Handle6G8-42113-02-4D
Required: 1
HANDLE, STEERING 3
$80.16
You save $14.14
$12.28
You save $2.17
$11.05
You save $1.95
28
Yamaha Motors
Plate Washer90201-20M00-00
Required: 2
WASHER, PLATE
In stock
Only 3 remaining
$3.44
You save $0.61
29
Yamaha Motors
Self-Locking Nut90185-20M03-00
Required: 1
NUT, SELF-LOCKING
$13.30
You save $2.35
30
Yamaha Motors
Plate Washer90202-20M33-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$8.92
You save $1.58
$9.31
You save $1.64
32
Yamaha Motors
Caution Label6E0-83627-41-00
Required: 1
LABEL, CAUTION 7
$9.69
You save $1.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
