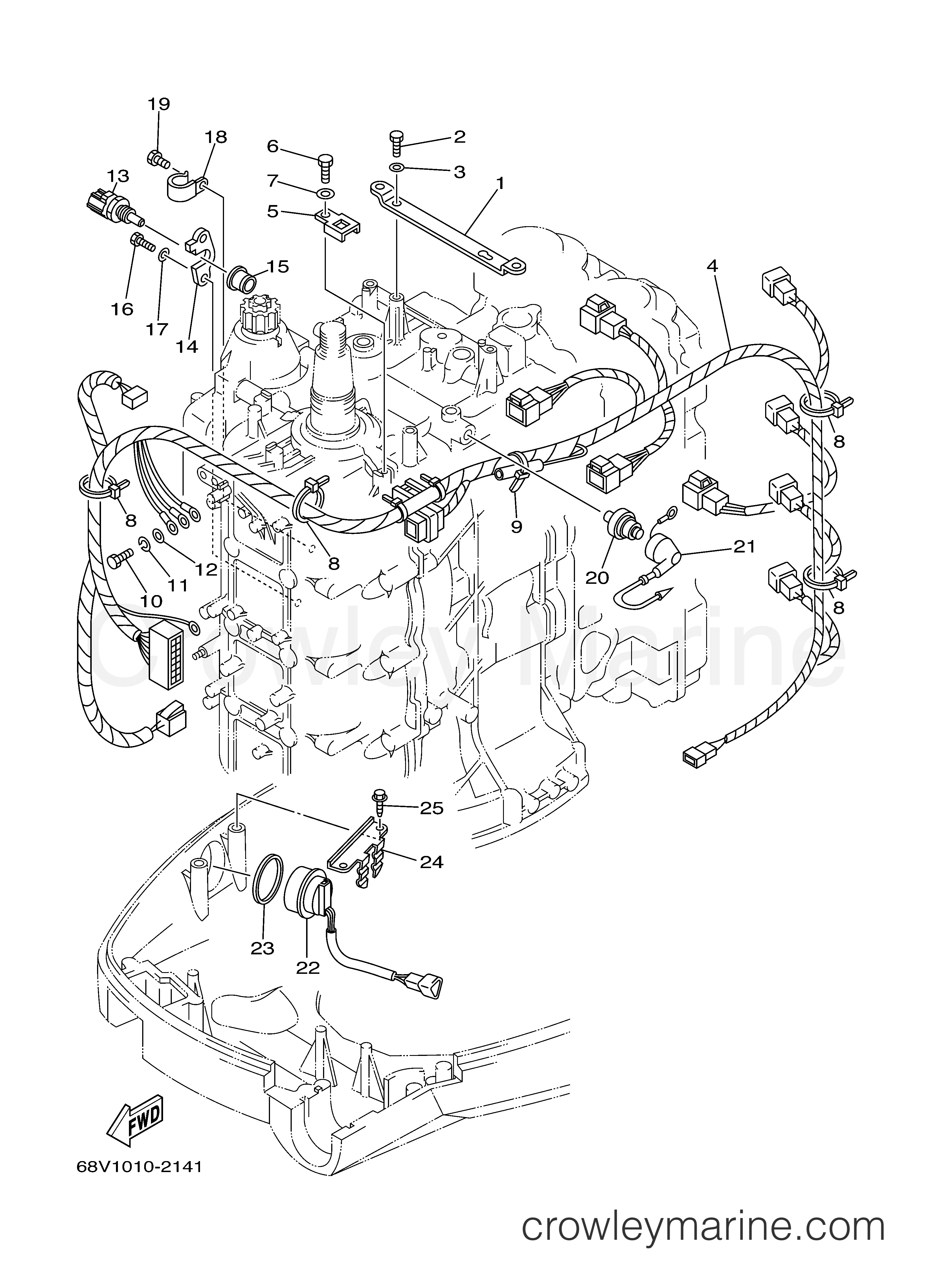

2004 Outboard 115hp - F115TLRC ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F115TLRC - ELECTRICAL 3
Change View:
Plate
1
Yamaha Motors
Plate67F-8132G-01-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$27.80
$23.63
You save $4.17
More details
BOLT, HEXAGON DEEP RECESS
2
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Obsolete Yamaha Part
4
Yamaha Motors
Obsolete Yamaha Part68V-8259M-01-00
Required: 1
WIRE HARNESS ASSY 2
Supersedes: 68V-8259M-00-00
Cross Ship
Leaves in 2-5 days
$528.95
$449.61
You save $79.34
More details
Plate
5
Yamaha Motors
Plate68V-82588-00-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$5.10
$4.33
You save $0.77
More details
BOLT
6
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Retainer
14
Yamaha Motors
Retainer67F-85757-00-00
Required: 1
RETAINER
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
BOLT, HEXAGON DEEP RECESS
16
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Clamp
18
Yamaha Motors
Clamp90465-06M86-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
BOLT
19
Yamaha Motors
BOLT97095-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Lead Wire ASSEMBLY
21
Yamaha Motors
Lead Wire ASSEMBLY68V-81315-01-00
Required: 1
LEAD WIRE ASSY
Supersedes: 68V-81315-00-00
Cross Ship
Leaves in 2-5 days
$10.35
$8.80
You save $1.55
More details
Bracket
24
Yamaha Motors
Bracket67F-83614-00-00
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$13.35
$11.35
You save $2.00
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
