All diagrams for this model

2004 Outboard 8hp - 8MSHC FUEL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

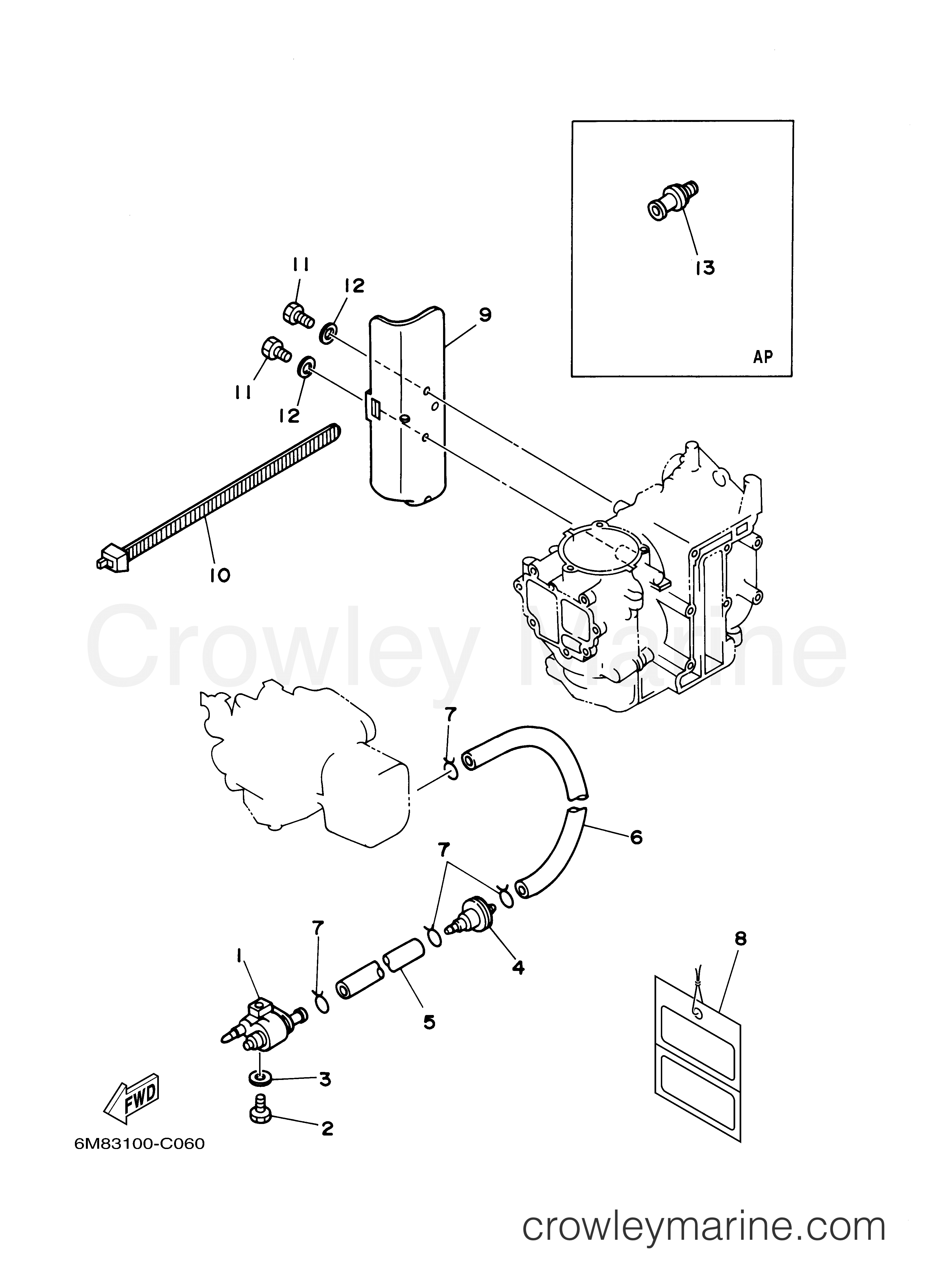

Yamaha Motors 8MSHC - FUEL 1
Change View:
BOLT
2
Yamaha Motors
BOLT97095-06025-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Pipe 5
6
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 1
HOSE (L30)
Supersedes: 90445-09220-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Warning Tag
8
Yamaha Motors
Warning Tag61H-2819R-31-00
Required: 1
TAG, WARNING
Cross Ship
Leaves in 2-5 days
$12.75
$10.84
You save $1.91
More details
Tool Holder
9
Yamaha Motors
Tool Holder6N0-F8170-00-00
Required: 1
HOLDER, TOOL
Cross Ship
Leaves in 2-5 days
$28.95
$24.61
You save $4.34
More details
Band
10
Yamaha Motors
Band6E1-42694-00-00
Required: 1
BAND
Supersedes: 6G1-2811G-00-00
Cross Ship
Leaves in 2-5 days
$21.70
$18.45
You save $3.25
More details
BOLT
11
Yamaha Motors
BOLT97095-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
