All diagrams for this model

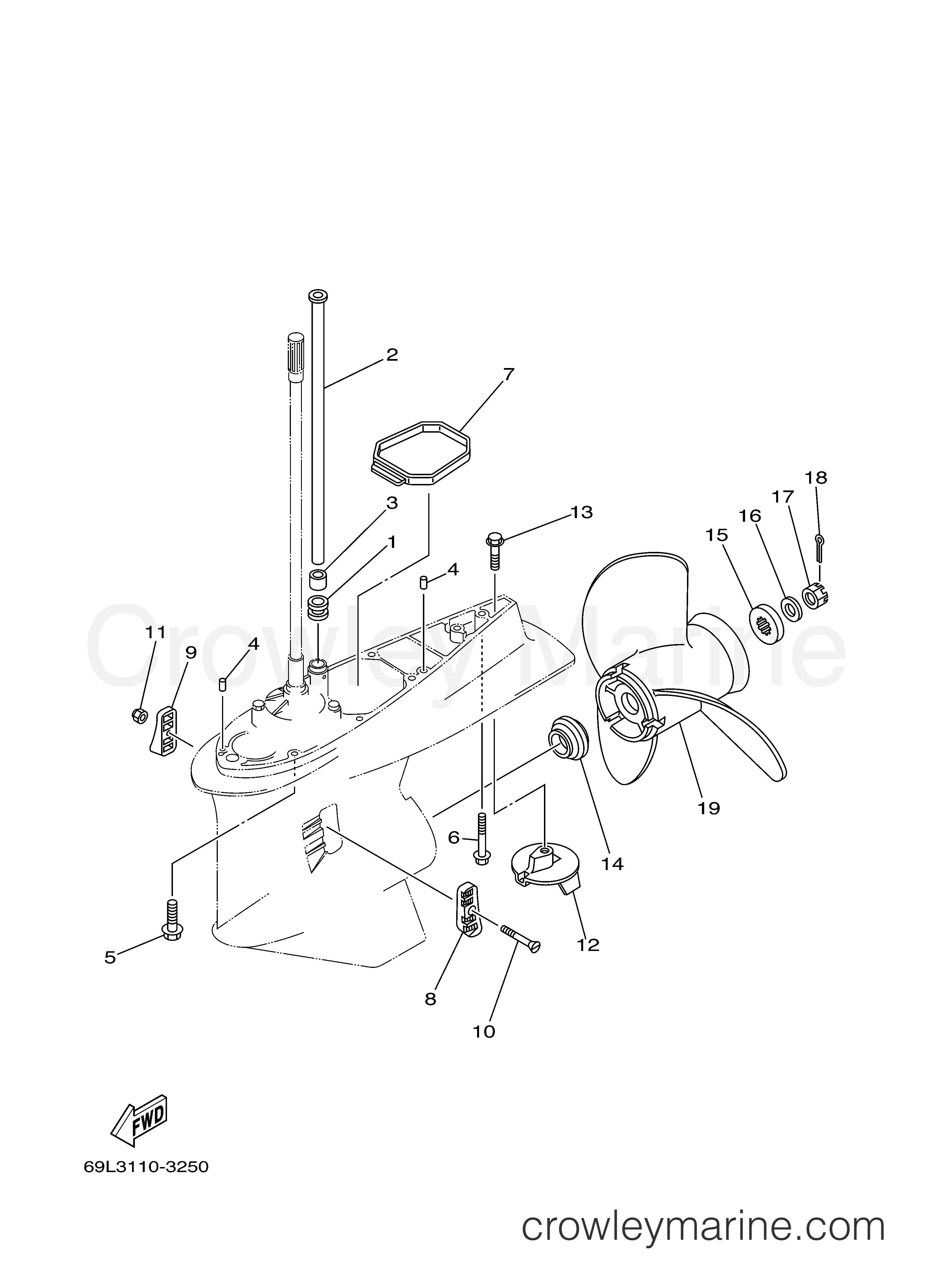

2003 Outboard 250hp - VX250TLRB LOWER CASING DRIVE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX250TLRB - LOWER CASING DRIVE 2
Change View:
Water Tube
2
Yamaha Motors
Water Tube66K-44361-00-00
Required: 1
TUBE, WATER
Cross Ship
Leaves in 2-5 days
$39.65
$33.70
You save $5.95
More details
Bolt
5
Yamaha Motors
Bolt90101-10M70-00
Required: 7
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Spacer
14
Yamaha Motors
Spacer69J-45987-00-00
Required: 1
SPACER 1
Cross Ship
Leaves in 2-5 days
$160.95
$136.81
You save $24.14
More details
Propeller (3X14-3/4"X29"-T1)
19
Yamaha Motors
Propeller (3X14-3/4"X29"-T1)69L-45976-20-00
Required: 1
PROPELLER (3X14-3/4"X29"-T)
Supersedes: 69L-45976-00-00
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details
V MAX Vented Prop - 3 Blade 14.5x23RH Stainless Steel
19
Yamaha Motors
V MAX Vented Prop - 3 Blade 14.5x23RH Stainless Steel69L-45974-20-00
Required: 1
PROPELLER (3X14-1/2"X23"-T)
Supersedes: 69L-45974-00-00
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details
VX MAX (25 X 15-1/8"-T)
19
Yamaha Motors
VX MAX (25 X 15-1/8"-T)69L-45972-10-00
Required: 1
PROPELLER (3X15-1/8"X25"-T)
Supersedes: 69L-45972-00-00
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details
VX MAX (27 X 15-1/8"-T)
19
Yamaha Motors
VX MAX (27 X 15-1/8"-T)69L-45970-10-00
Required: 1
PROPELLER (3X15-1/8"X27"-T)
Supersedes: 69L-45970-00-00
Cross Ship
Leaves in 2-5 days
$1030.00
$875.50
You save $154.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
