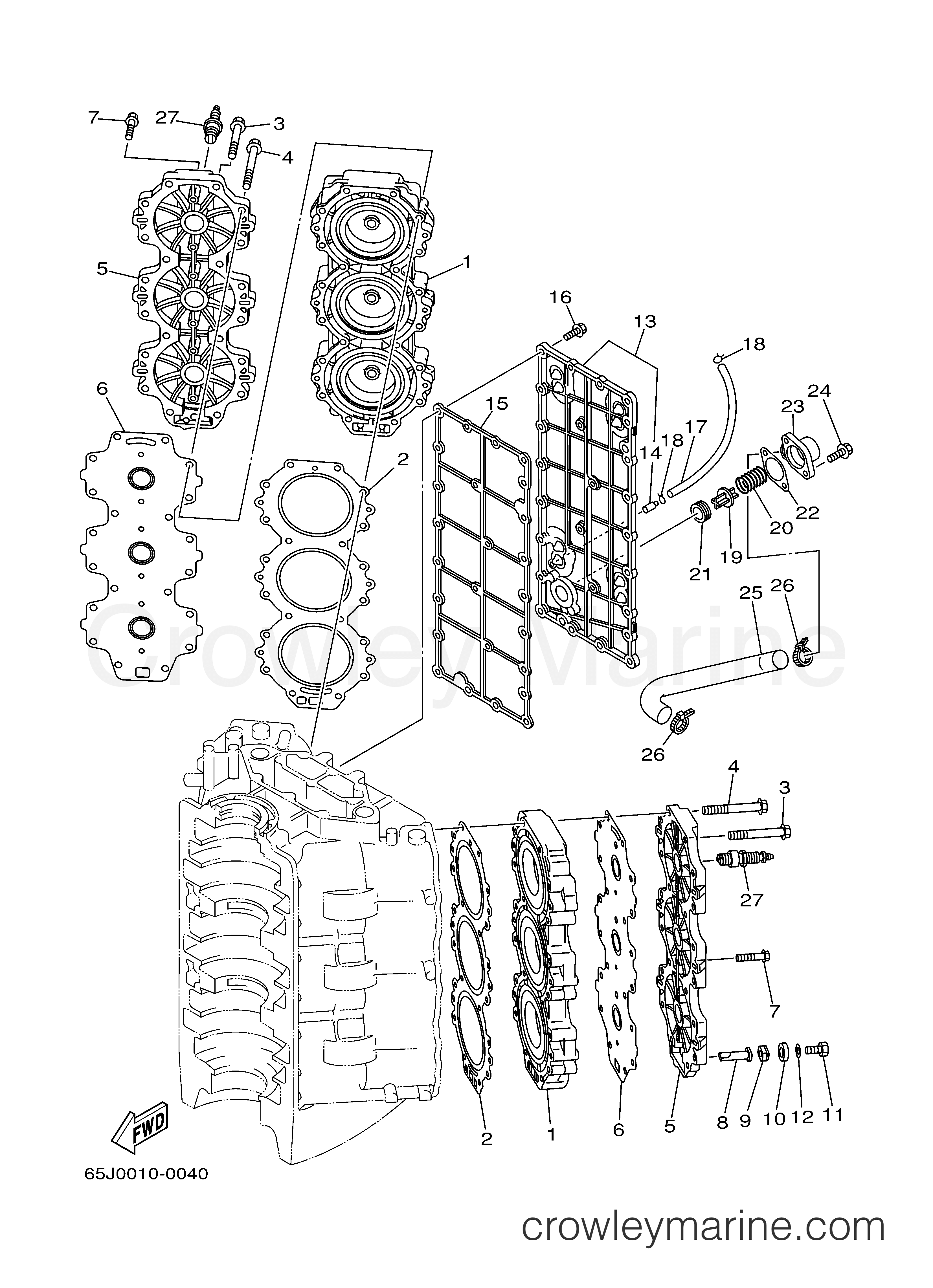

2003 Outboard 250hp - VX250TLRB CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head69L-11111-00-1S
Required: 2
HEAD, CYLINDER 1
$268.26
You save $47.34
2
Yamaha Motors
Cylinder Head Gasket69L-11181-01-00
Required: 2
.GASKET, CYLINDER HEAD 1
Supersedes: 69L-11181-00-00
In stock
5+ in stock
$67.52
You save $16.88
3
Yamaha Motors
Bolt with Washer90119-08MA5-00
Required: 3
BOLT, WITH WASHER
$5.28
You save $1.32
4
Yamaha Motors
Bolt with Washer90119-08M99-00
Required: 37
BOLT, WITH WASHER
$3.19
You save $0.80
5
Yamaha Motors
Cylinder Head Cover61A-11191-00-1S
Required: 2
COVER, CYLINDER HEAD 1
In stock
Only 1 remaining
$126.69
You save $22.36
6
Yamaha Motors
GASKET, HEAD COVER 161A-11193-A2-00
Required: 2
.GASKET, HEAD COVER 1
Supersedes: 61A-11193-A1-00
In stock
5+ in stock
$31.64
You save $7.91
7
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 12
BOLT, WITH WASHER
In stock
5+ in stock
$2.84
You save $0.71
In stock
5+ in stock
$3.56
You save $0.89
9
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 2
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.40
You save $1.35
10
Yamaha Motors
Anode Cover6H3-11327-00-94
Required: 2
COVER, ANODE
Supersedes: 6H3-11327-00-1S
$26.00
You save $6.50
$2.21
You save $0.55
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.28
You save $0.57
13
Yamaha Motors
Exhaust Outer Cover61A-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$167.32
You save $29.53
14
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.64
You save $1.16
15
Yamaha Motors
EXHAUST INNER GASKET6S3-41112-00-00
Required: 1
.GASKET, EXHAUST INNER COVER
Supersedes: 61A-41112-A0-00
$68.48
You save $17.12
16
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 25
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
17
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L600)
Supersedes: 90445-09M25-00
In stock
5+ in stock
$9.99
You save $2.50
In stock
5+ in stock
$7.59
You save $1.90
19
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.00
You save $2.75
20
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.08
You save $1.52
In stock
5+ in stock
$3.52
You save $0.88
In stock
5+ in stock
$4.52
You save $1.13
23
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
COVER, BYPASS 2
In stock
5+ in stock
$15.12
You save $3.78
24
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
In stock
Only 4 remaining
$13.56
You save $3.39
In stock
Only 5 remaining
$1.48
You save $0.37
27
Yamaha Motors
BR9HS-10 NGK 4551BR9-HS100-00-00
Required: 6
PLUG, SPARK (NGK BR9HS-10)
Supersedes: NGK-BR9HS-10-00
In stock
5+ in stock
$3.76
You save $0.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
